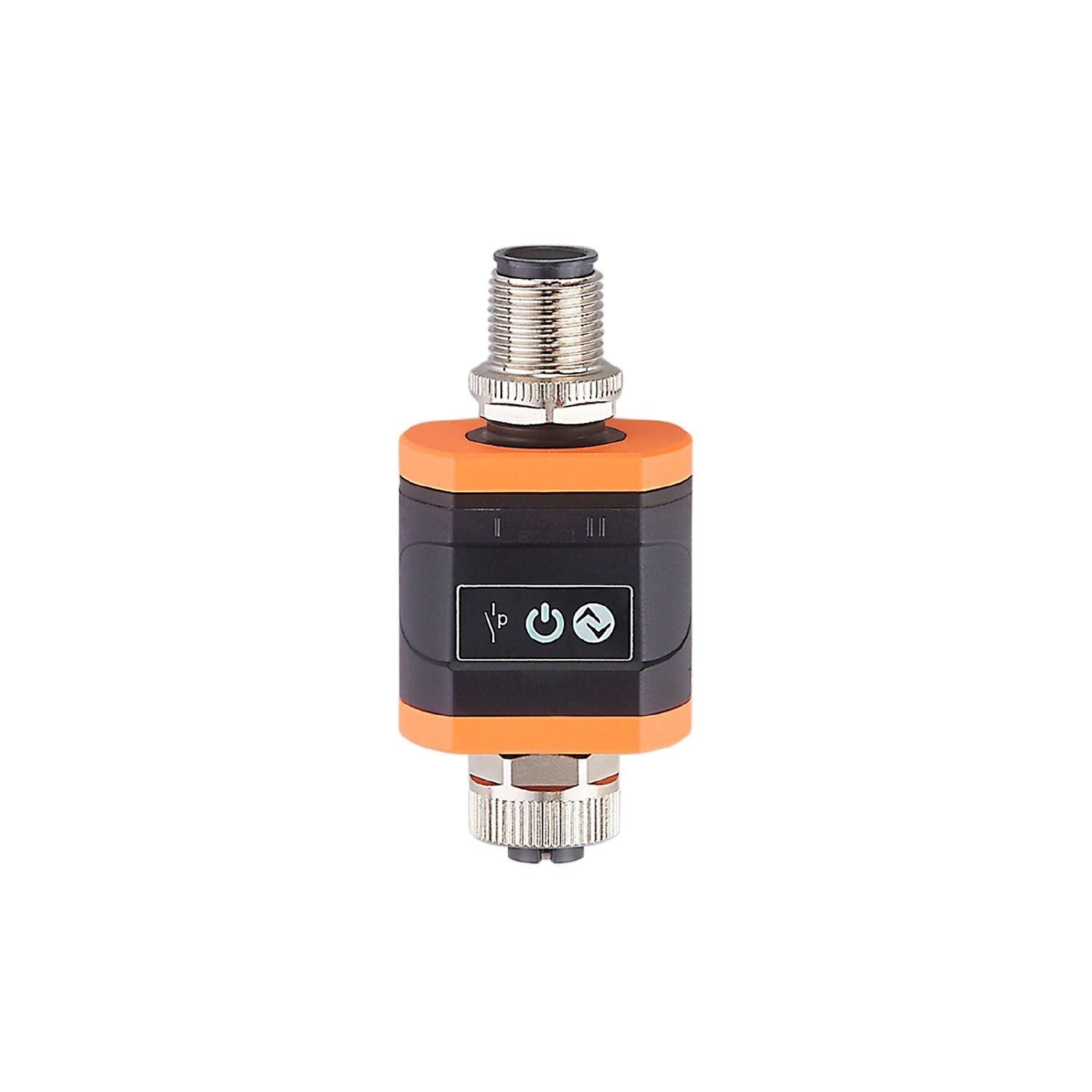

IFM E43406 - IO-Link data splitter IO-LINK DATA SPLITTER PNP

Plug & Play ermöglicht einen nachträglichen Einbau ohne die Anlage zu verändern..
Schnelle Bereitstellung von Sensordaten an übergeordnete IoT/Cloud-Systeme..
Perfekte Unterstützung für Service- und Wartungspersonal.

Number of inputs and outputs	Number of digital outputs: 1

Special feature	Gold-plated contacts
Application	for retrofitting of existing IO-Link systems; for systems without IO-Link capabilities

Operating voltage [V]	18...30 DC;(on the master side; on the controller / system: 20...30 DC)
Nominal voltage DC [V]	24
Current consumption [mA]	< 17;(both sides)
Protection class	III
Reverse polarity protection	yes;(on the master side)
Power-on delay time [s]	< 2;(for communication; response time switching signal: response time device plus IO-Link process cycle time)

Inputs / outputs

Total number of inputs and outputs	1;(on the controller / system)
Number of inputs and outputs	Number of digital outputs: 1

Outputs

Output signal	switching signal; IO-Link
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Type of short-circuit protection	pulsed
Short-circuit proof	yes
Overload protection	yes

Interfaces

Communication interface	IO-Link
Supported DeviceIDs	Type of operation DeviceID default 1107

Note on interfaces	connection to IO-Link masters
Unterstützte Masterportklasse	A
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Identification and Diagnosis (0x4000)
SIO mode	yes
Min. process cycle time [ms]	4.2

Note on interfaces	connection to IO-Link devices
Unterstützte Masterportklasse	A / B
Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.0; 1.1
SDCI standard	IEC 61131-9

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-4 in plastic or open metal tanks
Shock resistance	DIN EN 60068-2-27 15 g (6 ms)
Vibration resistance	DIN EN 60068-2-6 2 g (10...150 Hz)
MTTF [years]	307
UL approval	File number UL E205959

Weight [g]	90
Materials	stainless steel (1.4404 / 316L); brass (2.0401); PBT; PA; Sealing: FKM;

Displays / operating elements

Display	switching output 1 x LED, yellow operation 1 x LED, green IO-Link 1 x LED, yellow

Accessories

Accessory required	Y connection cable 1, EVC843

Remarks	For information on the maximum cable length please refer to the operating instructions. To ensure the function according to technical datasheet and operating instructions the use of the following article is imperative: EVC843
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43406-00 — 13.04.2023 —
