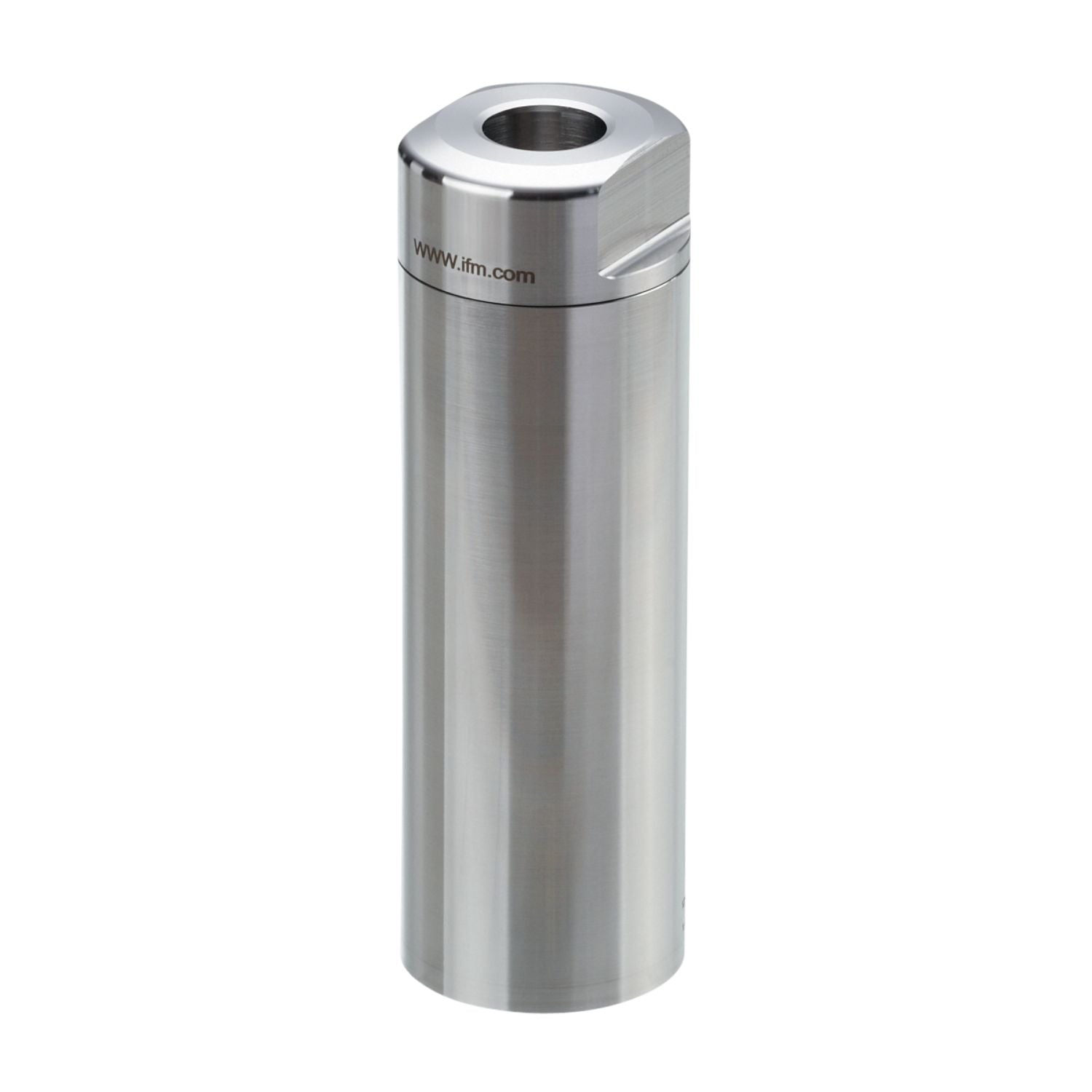

IFM E43414 - REAR MOUNT ADAPTER REAR MOUNT ADAPTER

For rear installation of process sensors in tanks.
Easy, quick and secure mounting.
Stainless steel adapter for the requirements of the food and beverage industry.
High pressure rating

Design	adapter for rear sensor installation
Pressure rating [bar]	50
Note on pressure rating	for the connection sensor - adapter

Weight [g]	534.5
Materials	Adapter: stainless steel (1.4435 / 316L); weld-on pipe: stainless steel (1.4571/316Ti ); Sealing: FKM
Sensor connection	G 1/2 sealing cone
Process connection	Ø 38 mm
Surface characteristics Ra/Rz of the wetted parts	0.8 / 4

Remarks	due to the adjustment of the ambient temperature of the installed sensor to the medium temperature, the medium temperature must not exceed the specified data for the ambient temperature of the installed sensor.
Pack quantity	1 pcs.
