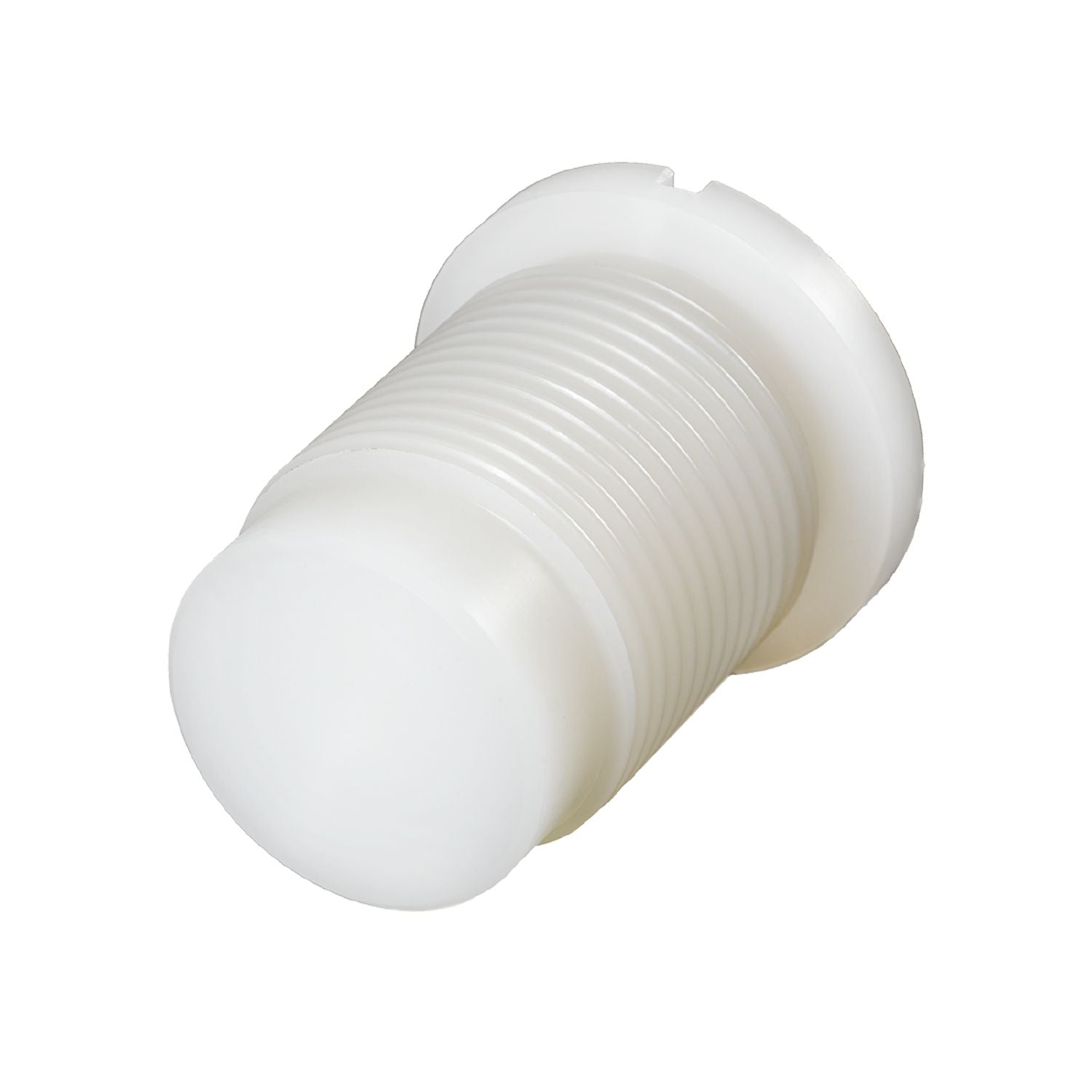

IFM E43905 - Mounting adapter for capacitive sensors MOUNTING CAP G1",PVDF

Reliable installation in a vessel wall.
Efficient protection against soiling, impact and shock.
For level detection with capacitive sensors in containers and tanks.
High pressure rating.
Use in high medium temperatures

Pressure rating [bar]	8

Operating conditions

Ambient temperature [°C]	-25...110

Weight [g]	50.2
Dimensions [mm]	G 1 / L = 50
Thread designation	G 1
Materials	Adapter: PVDF
Tightening torque [Nm]	5
Sensor connection	threaded connection M18 x 1 internal thread
Process connection	threaded connection G 1 external thread

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E43905-00 — 02.04.2007 —
