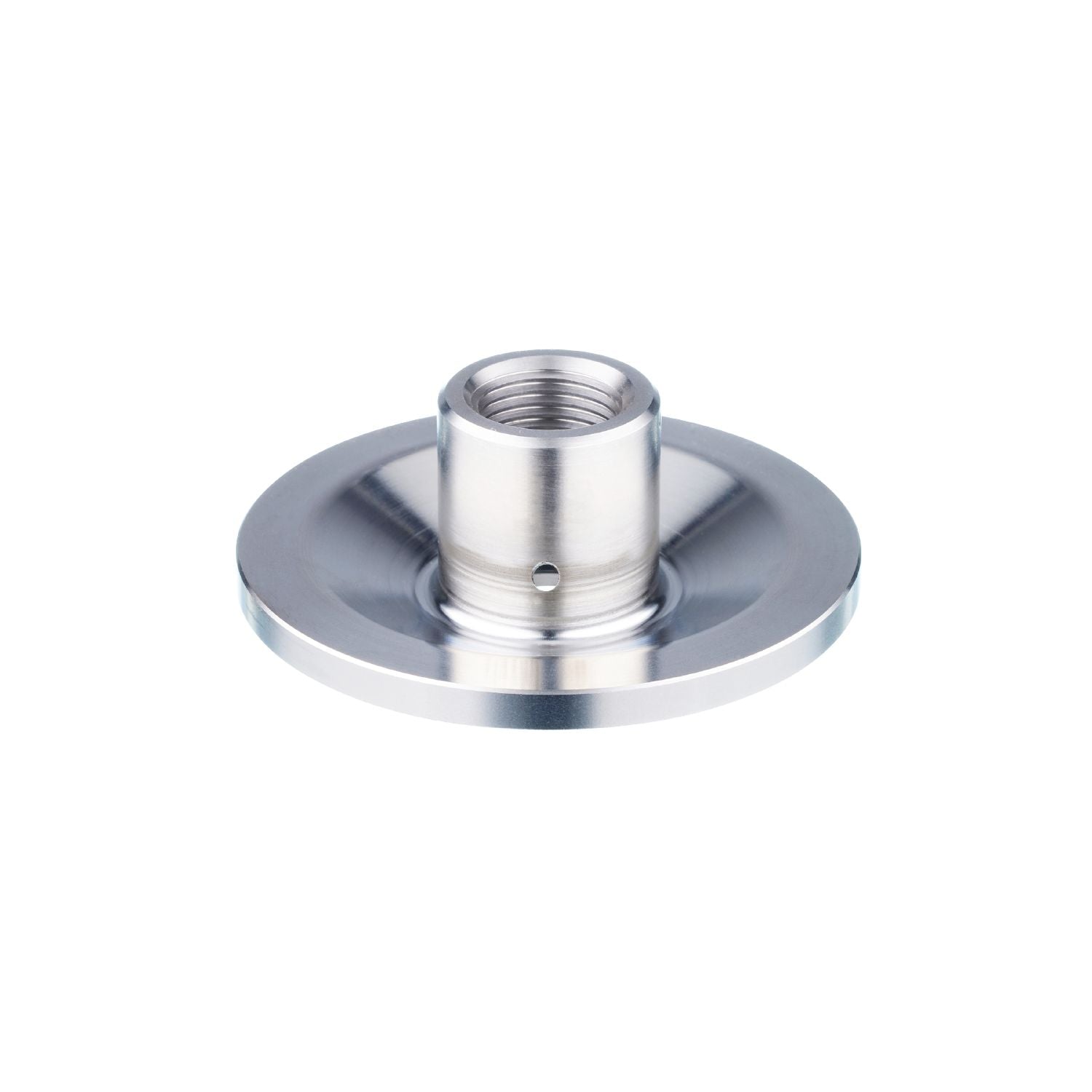

IFM E43918 - Welding adapter for process sensors WELDING ADAPT G1/2 D85X34 V4A/3A

Welding adapter for tank bottom and wall.
For use in industrial and hygienic applications.
Robust stainless steel design for use in harsh industrial environments.
High pressure rating

Design	with leakage port
Installation	for thick wall thicknesses and for unfavourable welding conditions
Pressure rating [bar]	50
Note on pressure rating	for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Safety instructions	The compatibility between medium andproduct material has to be checked in all applications.

Weight [g]	383.1
Materials	stainless steel (1.4435 / 316L)
Sensor connection	G 1/2 sealing cone
Process connection	welding adapter Ø 84,8 mm
Surface characteristics Ra/Rz of the wetted parts	Ra <0.4 / Rz <4

Pack quantity	1 pcs.
