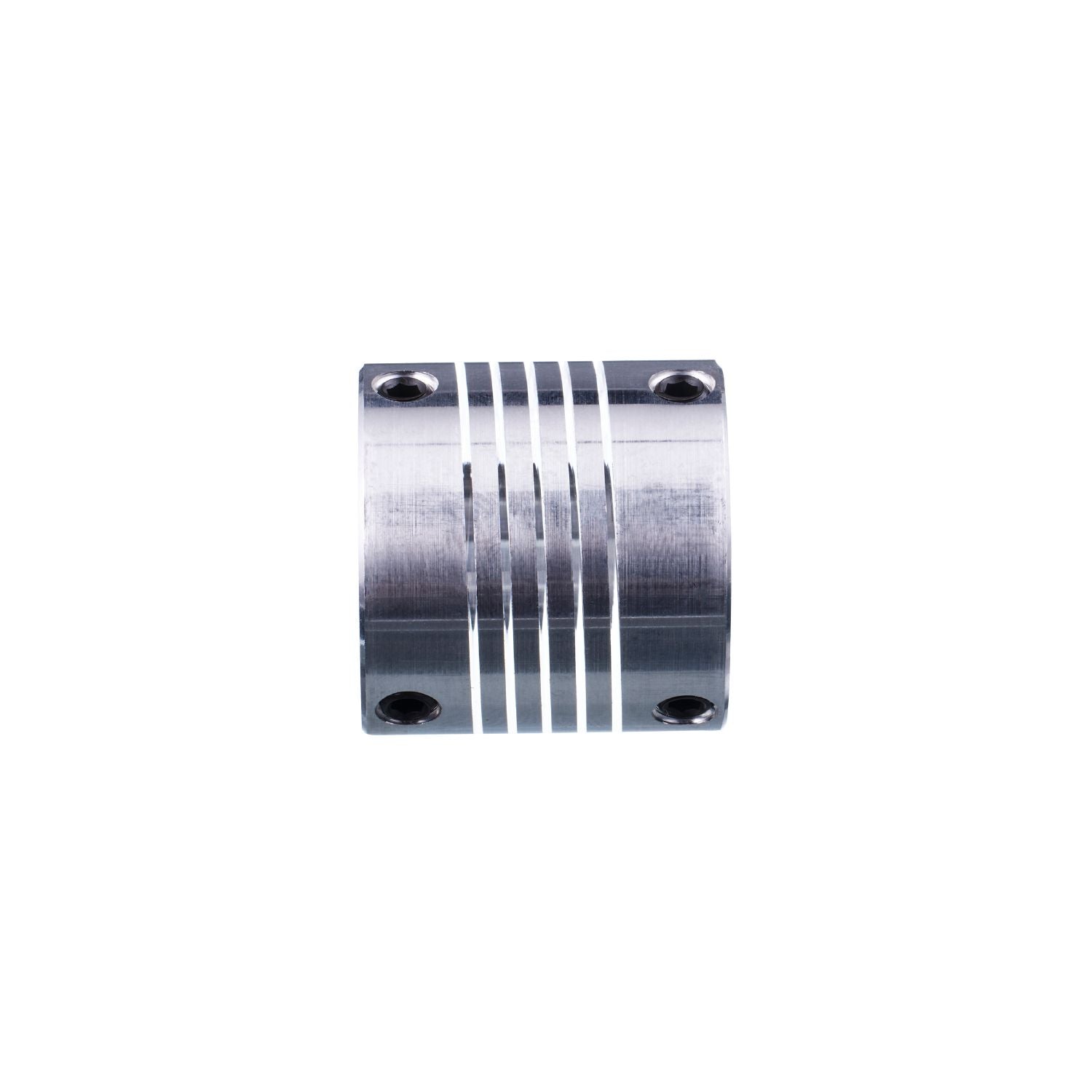

IFM E60022 - Flexible coupling for encoders COUPLING 25-10-10-24-SV

Clearance-free transmission of rotary movements.
Efficient vibration damping.
Excellent compensation of alignment errors.
Low rigidity of the torsion spring.
Small restoring forces

Weight [g]	25.7
Dimensions [mm]	Ø 25 / L = 24
Materials	aluminium
Tightening torque [Nm]	tightening torque screws: 120 Ncm
External diameter D [mm]	25
Inside diameter 1 [mm]	10
Inside diameter 2 [mm]	10
Depth of the clamping hub [mm]	7
Clamping screw [mm]	M4 x 6 - ISO 4029 (4x)
Length [mm]	24
Max. revolution, mechanical [U/min]	8000
Max. axial shaft misalignment [mm]	± 0,5
Max. radial shaft misalignment [mm]	± 0,3
Max. angular displacement [°]	± 4,0

Remarks	The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C. The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.
Pack quantity	1 pcs.
