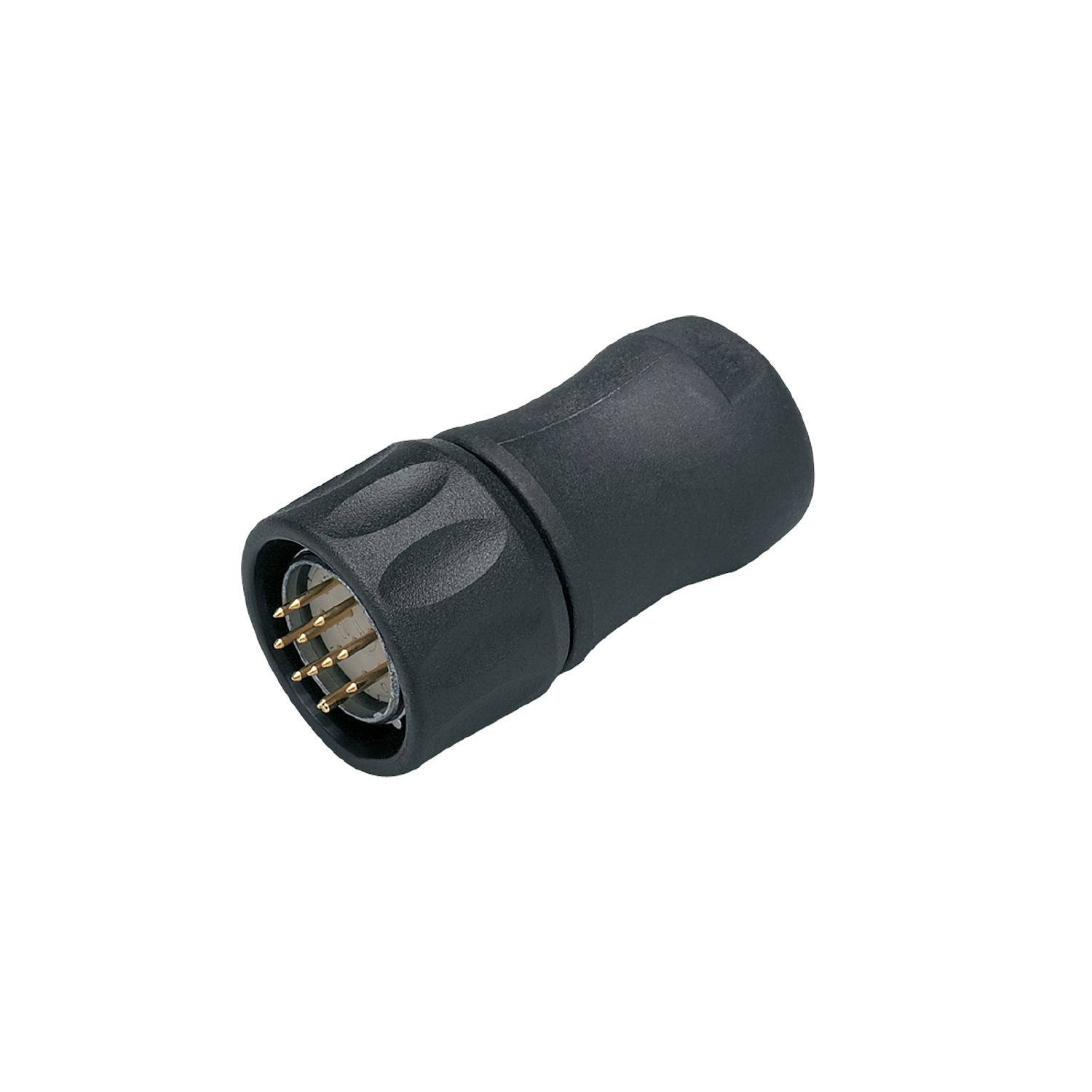

IFM E60123 - Wirable plug SSTGK120MKRFKSG

For incremental encoders with 12-pole M23 connector.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection due to soldering

Operating voltage [V]	4.5...30 DC

Operating conditions

Ambient temperature [°C]	-40...125
Protection	IP 67

Weight [g]	44.8
Dimensions [mm]	28 x 28 x 52
Materials	brass in plastic sheath; PA 6.6 black
Moulded-body material	brass / PA 6.6, in plastic sheath
Material nut	brass, in plastic sheath / PA 6.6, in plastic sheath

Pack quantity	1 pcs.

Electrical connection

	soldering: ...1 mm²

Electrical connection - plug

Connection	Connector: 1 x M23, straight; Moulded body: brass / PA 6.6, in plastic sheath; Locking: brass, in plastic sheath
