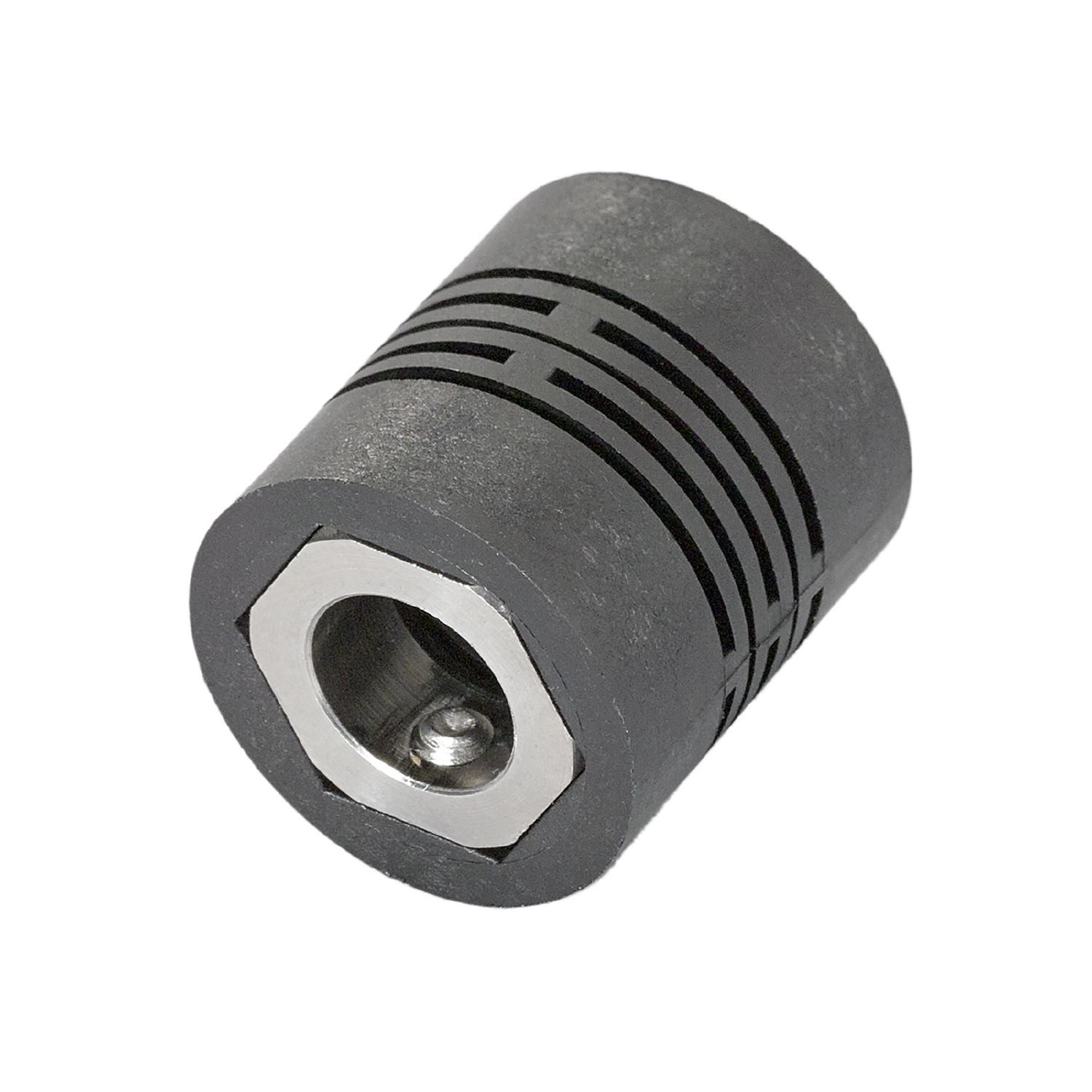

IFM E60193 - bar coupling Coupling 25-10-10-24-SV

Clearance-free transmission of rotary movements.
Efficient vibration damping.
Excellent compensation of alignment errors.
Low rigidity of the torsion spring.
Small restoring forces

Weight [g]	18.6
Dimensions [mm]	Ø 22 / L = 24
Materials	PA 6.6; stainless steel (1.4404 / 316L)
Tightening torque [Nm]	tightening torque screws: 120 Ncm
External diameter D [mm]	22
Inside diameter 1 [mm]	10
Inside diameter 2 [mm]	10
Depth of the clamping hub [mm]	6.4
Clamping screw [mm]	M4 x 6 - ISO 4029 (2x)
Length [mm]	24
Max. revolution, mechanical [U/min]	10000
Max. axial shaft misalignment [mm]	± 0,2
Max. radial shaft misalignment [mm]	± 0,3
Max. angular displacement [°]	± 3,0

Remarks	The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C. The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.
Pack quantity	1 pcs.
