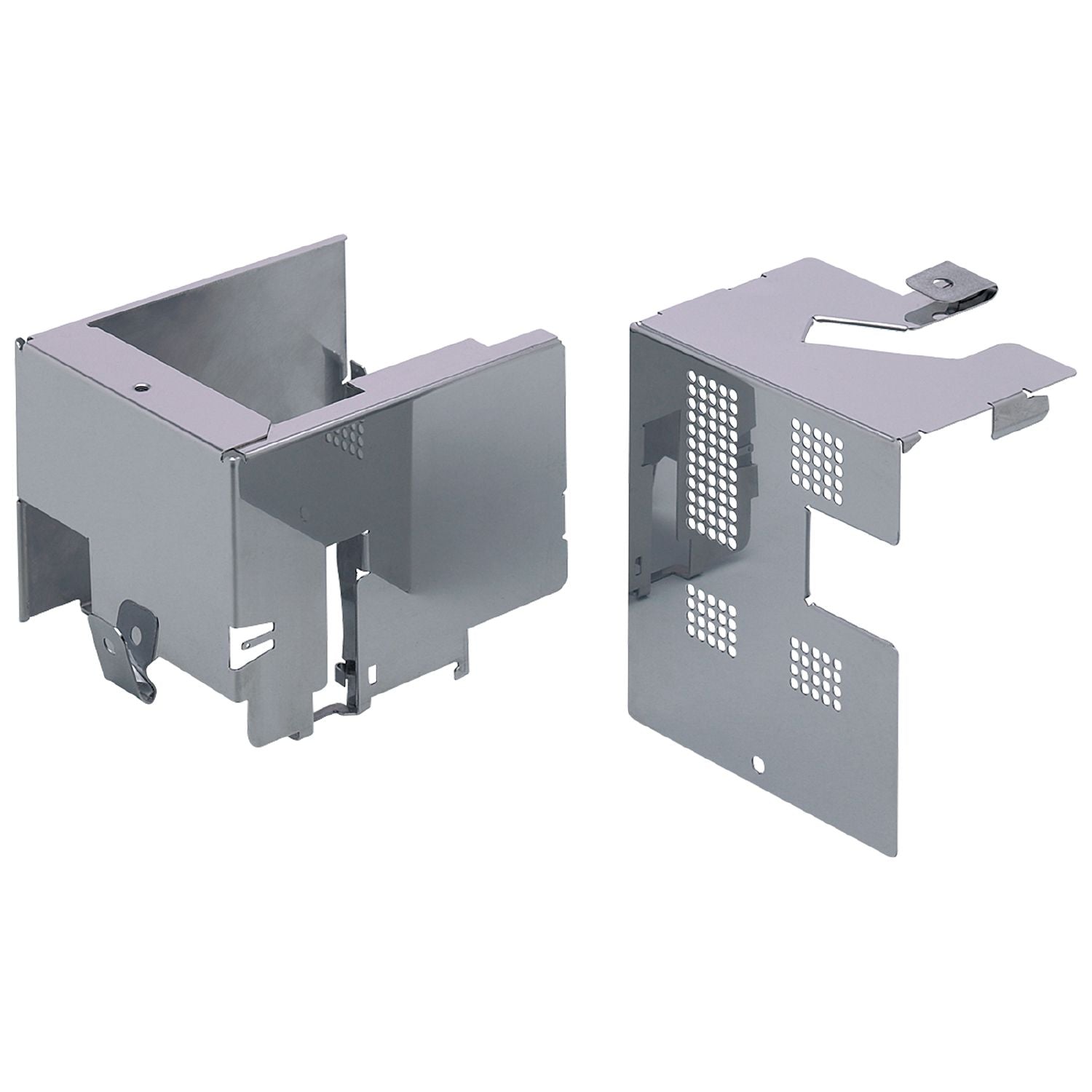

IFM E7000A - Impact protection housing for AS-Interface modules and AirBoxes ATEX unit protection

Reliable impact protection housing for AS-i modules and AirBoxes.
Robust stainless steel design for use in harsh industrial environments.
Quick and easy mounting and fixing

Design	for ATEX ClassicLine modules and ATEX AirBoxes

Operating conditions

Ambient temperature [°C]	-10...50

Weight [g]	441.5
Dimensions [mm]	106.8 x 117.6 x 173
Materials	housing: stainless steel (1.4016 / 430); button head hexagon socket screw: stainless steel (1.4301 / 304)

Accessories

Items supplied	button head hexagon socket screw: M5 x 10

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E7000A-00 — 11.06.2012 —
