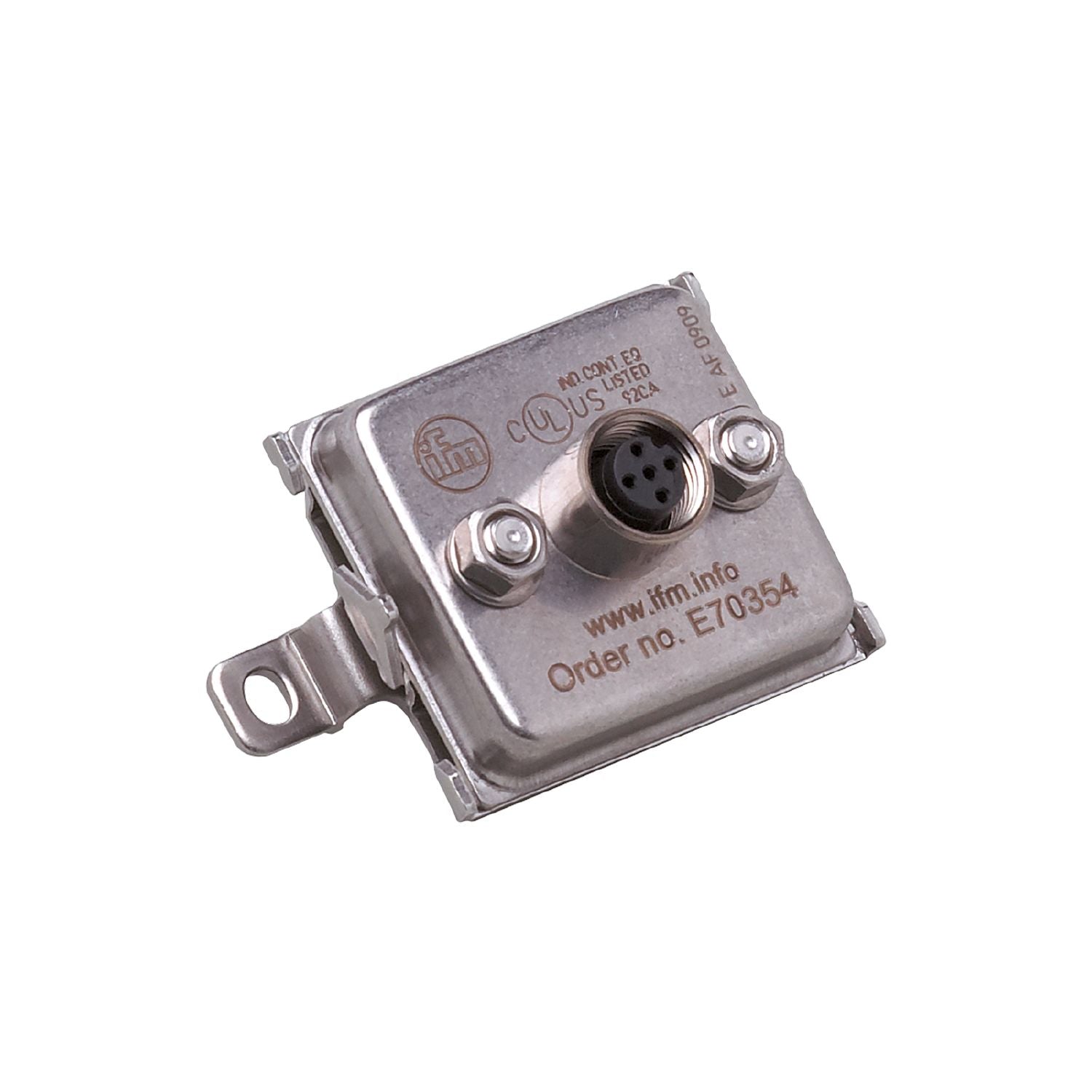

IFM E70354 - AS-Interface flat cable insulation displacement connector FCE Splitter ye/bk ProcessL

for the transition of AS-i / AUX flat cable to M12 connector.
Hygienic design for the requirements of the food and beverage industry.
Easy and quick connection due to insulation displacement technology.
Resistant to high-pressure cleaning with aggressive cleaning agents.
Large operating temperature range and high protection rating

Design	AS-i / 24 V

Operating voltage [V]	26.5...31.6 DC;(AS-i)
Protection class	III
Operating voltage AUX DC [V]	18...32
Max. current load total [A]	4;(AS-i: 2 A; AUX: 2 A)

Operating conditions

Ambient temperature [°C]	-30...80
Max. relative air humidity [%]	80;(31 °C; linearly decreasing to 50 % (40 °C))
Max. height above sea level [m]	2000
Protection	IP 67; IP 68; IP 69K
Pollution degree	2

Tests / approvals

EMC	EN 61000-6-2

Weight [g]	112.3
Materials	metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM
Tightening torque [Nm]	2.5;(lock nuts)

Accessories

Accessories (optional)	Torque wrench, E70390

Pack quantity	1 pcs.

Electrical connection - socket

Connection	Connector: 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm
