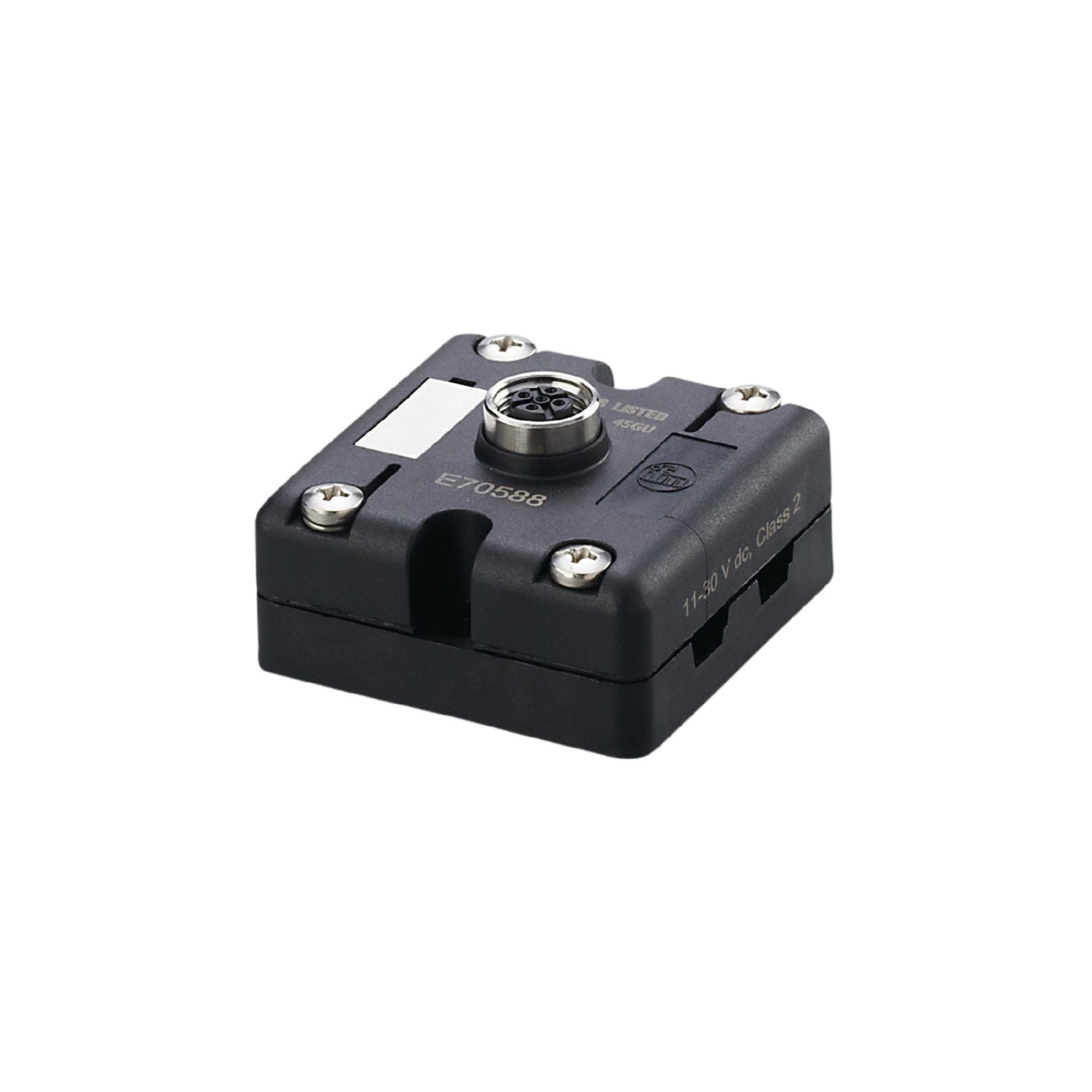

IFM E70588 - AS-Interface power distributor QUAD M12 AS-i/24V 4A

Reliable distribution of the AS-i voltage or the external 24 V supply.
Easy and quick connection due to insulation displacement technology.
High protection rating for the requirements of harsh industrial environments.
For transition from AS-i flat cable to M12 connector.
For extending the AS-i network by means of spurs

Design	AS-i / 24 V

Operating voltage [V]	26.5...31.6 DC
Max. current load total [A]	2
Additional voltage supply [V]	24 DC

Operating conditions

Ambient temperature [°C]	-25...75
Protection	IP 65

Weight [g]	95.5
Materials	PA 6.6; socket: stainless steel (1.4404 / 316L); screws: stainless steel (1.4404 / 316L); nut: stainless steel (1.4404 / 316L); O-ring: NBR; flat cable seal: NBR

Pack quantity	1 pcs.

Electrical connection

	Connector:M12; coding: A
