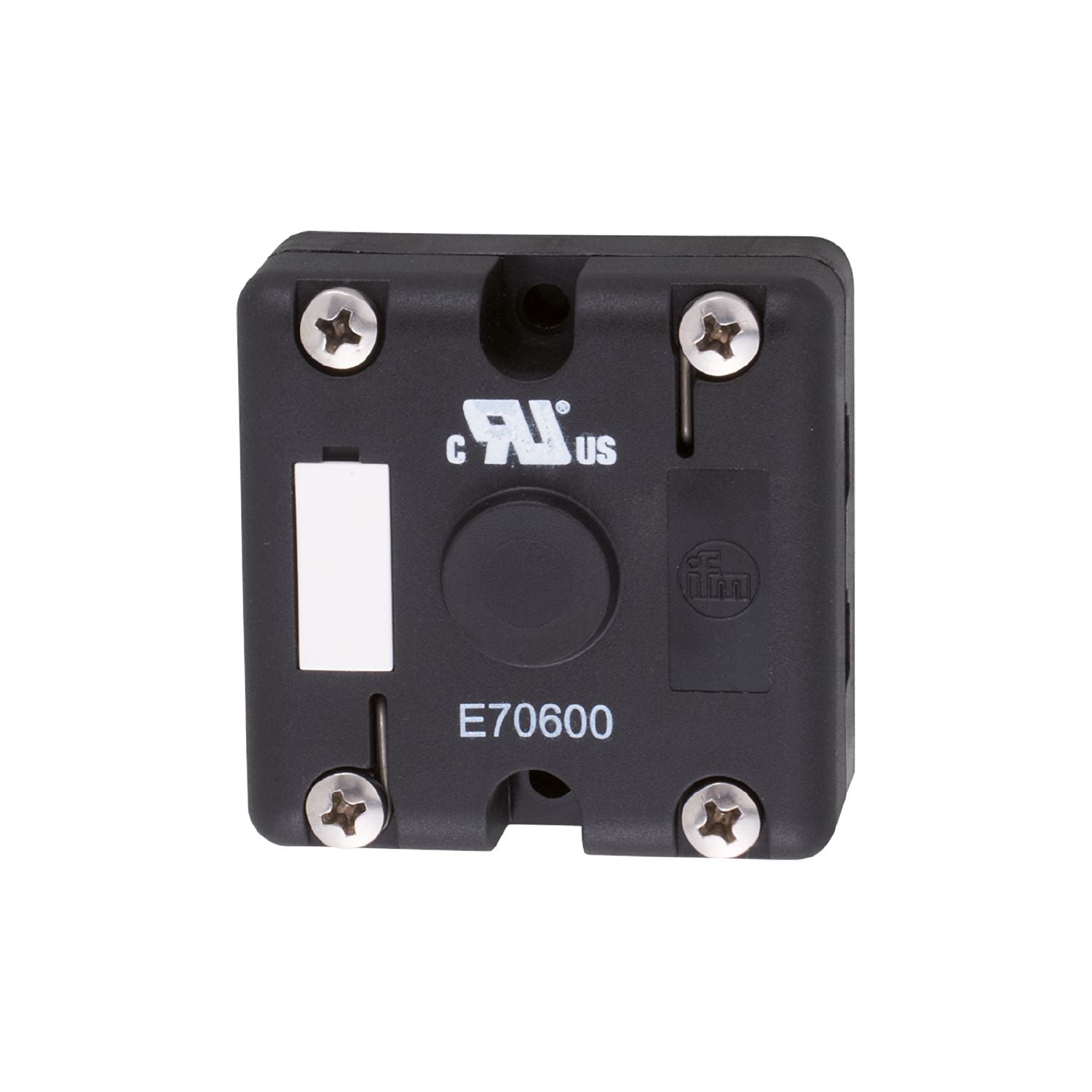

IFM E70600 - AS-Interface power distributor QUAD AS-i Splitter Box 8A

Reliable distribution of the AS-i voltage or the external 24 V supply.
Easy and quick connection due to insulation displacement technology.
High protection rating for the requirements of harsh industrial environments.
For extending the AS-i network by means of spurs

Design	AS-i / 24 V

Operating voltage [V]	26.5...31.6 DC
Max. current load total [A]	8
Additional voltage supply [V]	24 DC

Operating conditions

Ambient temperature [°C]	-25...75
Protection	IP 65

Weight [g]	89.5
Materials	PA 6.6; screws: stainless steel (1.4404 / 316L); Nuts: stainless steel (1.4404 / 316L); flat cable seal: NBR

Pack quantity	1 pcs.
