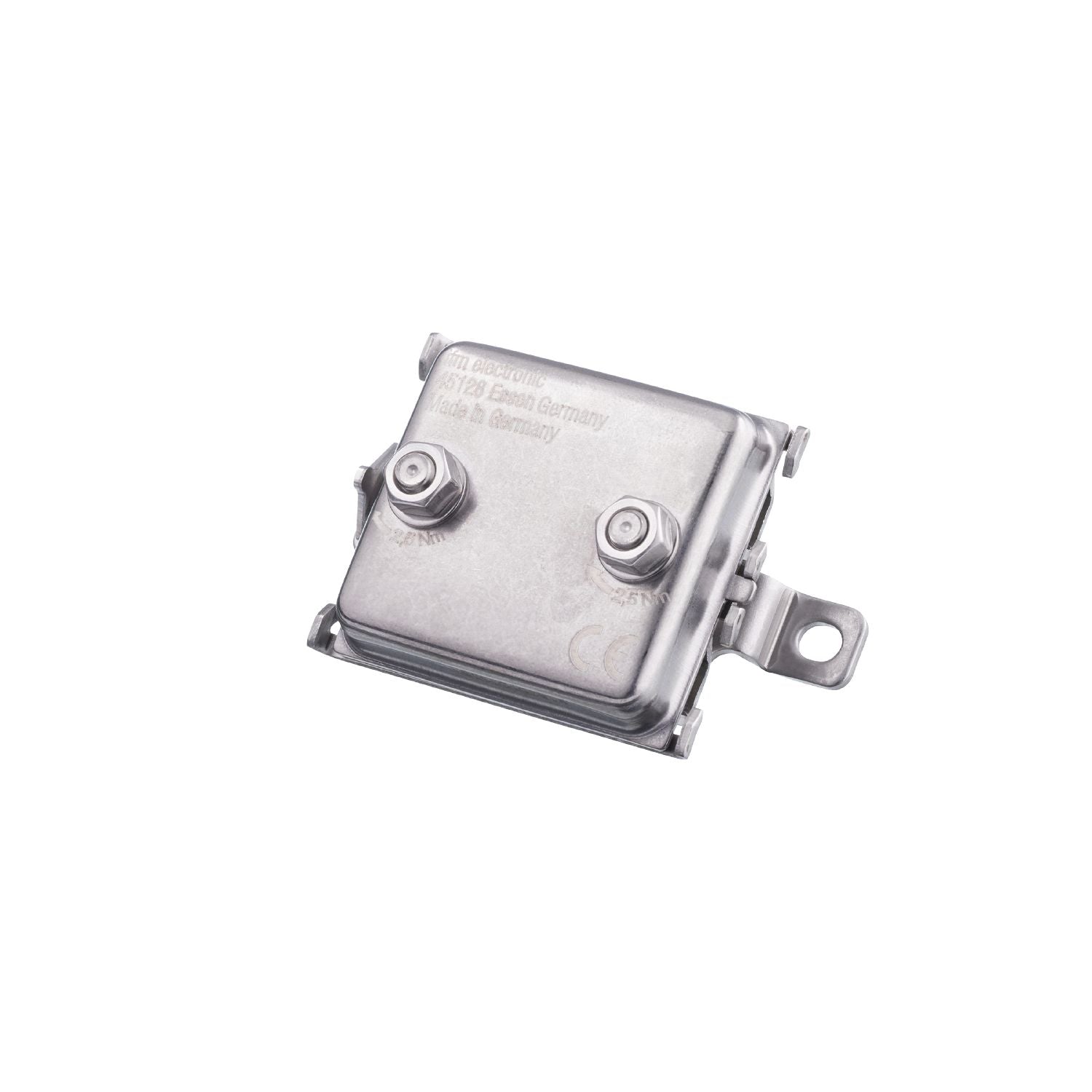

IFM E7377A - AS-Interface flat cable splitter FC Splitter ye/ye II 3D/3G

Reliable distribution of the AS-i voltage or the external 24 V supply.
Hygienic design for the requirements of the food and beverage industry.
Easy and quick connection due to insulation displacement technology.
Resistant to high-pressure cleaning with aggressive cleaning agents.
For applications in hazardous areas

Application	for the distribution of the AS-i voltage or the external 24 V supply

Protection class	III
Max. current load total [A]	8

Outputs

Electrical design	AS-i

Operating conditions

Ambient temperature [°C]	0...60
Note on ambient temperature	-15...60 °C: only in connection with an EPDM cable
Max. relative air humidity [%]	80;(31 °C; linearly decreasing to 50 % (40 °C))
Max. height above sea level [m]	2000
Protection	IP 67;(when used outside the hazardous area: IP 68 / IP 69K)
Pollution degree	2

Tests / approvals

ATEX marking	II 3G Ex ec IIC T6 Gc X
	II 3D Ex tc IIIC T 70°C Dc X

Weight [g]	132.5
Materials	metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FKM; Sealing: EPDM
Tightening torque [Nm]	2.5;(Mounting screw)

Accessories

Accessories (optional)	Torque wrench:, E70390 flat cable blank:, E70299

Pack quantity	1 pcs.
