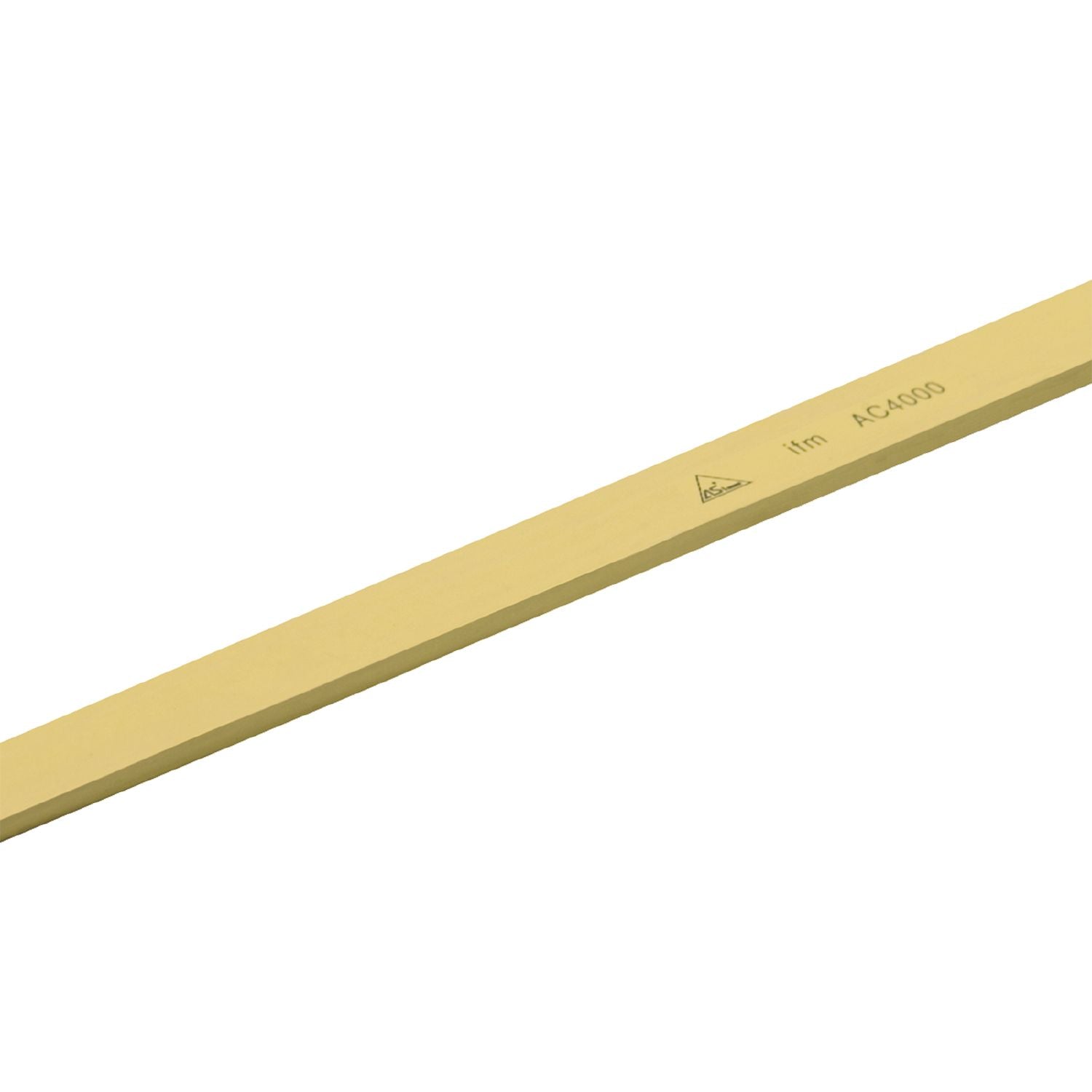

IFM E74000 - AS-Interface flat cable Flat cable 100 meter EPDM ye

For the reliable signal transmission in AS-i networks.
Connection of components by means of insulation displacement technology.
Reverse polarity protection due to special shape.
High protection rating for the requirements of harsh industrial environments

Special feature	Halogen-free
Design	for use of insulation displacement technology

Operating voltage [V]	26.5...31.6 DC

Operating conditions

Ambient temperature [°C]	-40...85

Weight [g]	7096

Remarks	100 m form supplied: coiled
Pack quantity	100 m

Electrical connection

	Cable: 100 m, EPDM, Halogen-free, yellow; 2 x 1.5 mm²
