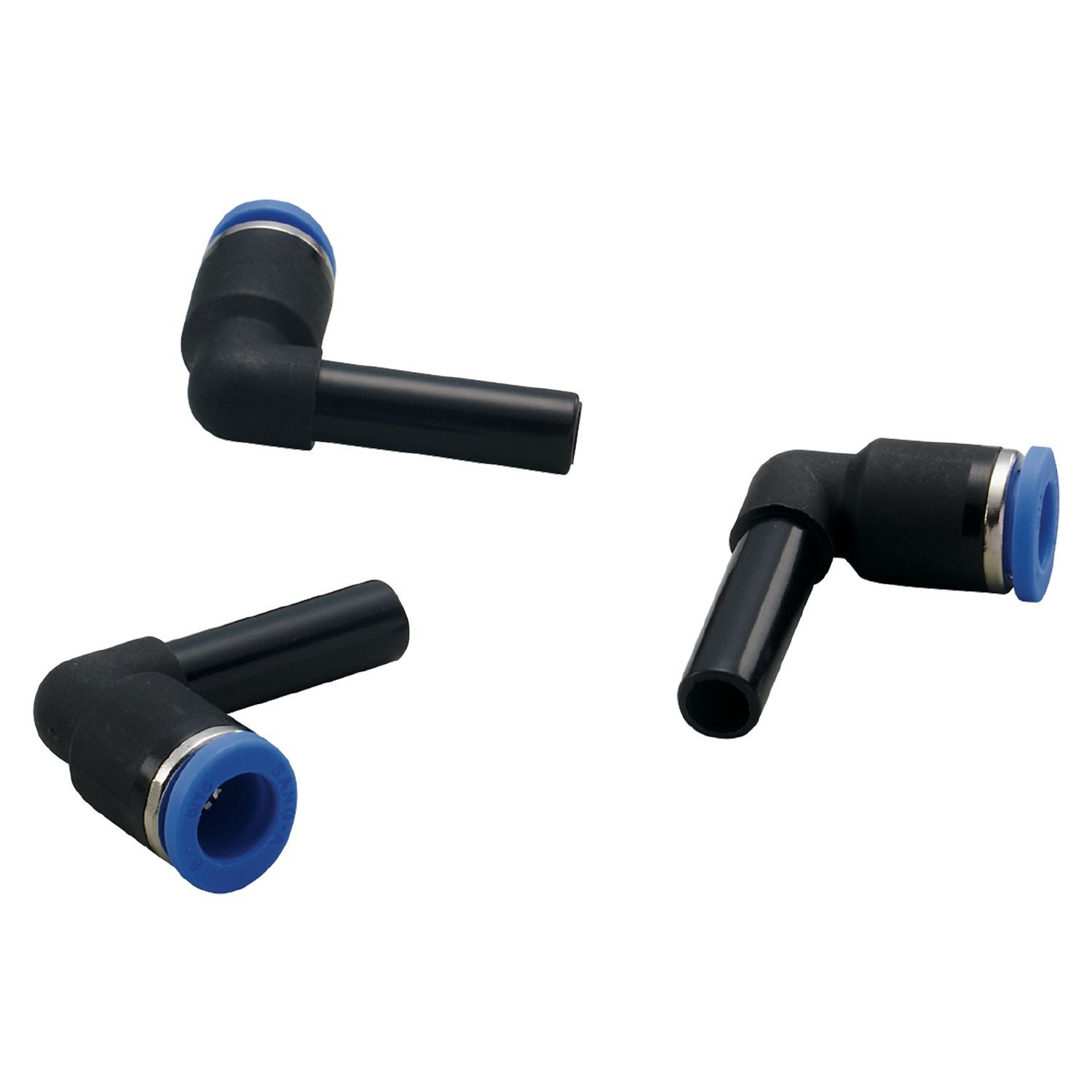

IFM E75228 - Push-in L-fitting for pneumatic connections AirBox push-in L-connect 10pcs

For a reliable pneumatic connection.
Easy and quick installation in an AirBox

Media	compressed air according to ISO 8573-1: 2001

Operating conditions

Operating pressure [bar]	10;(min. -0,95)
Ambient temperature [°C]	-20...80

Weight [g]	69.5
Materials	housing: nickel-plated brass / PA66; release ring: polyoxymethylene; Tooth lock washer: stainless steel; form ring: NBR
Tube fittings	8 mm
Sleeve diameter [mm]	8

Pack quantity	10 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E75228-02 — 28.03.2017 —
