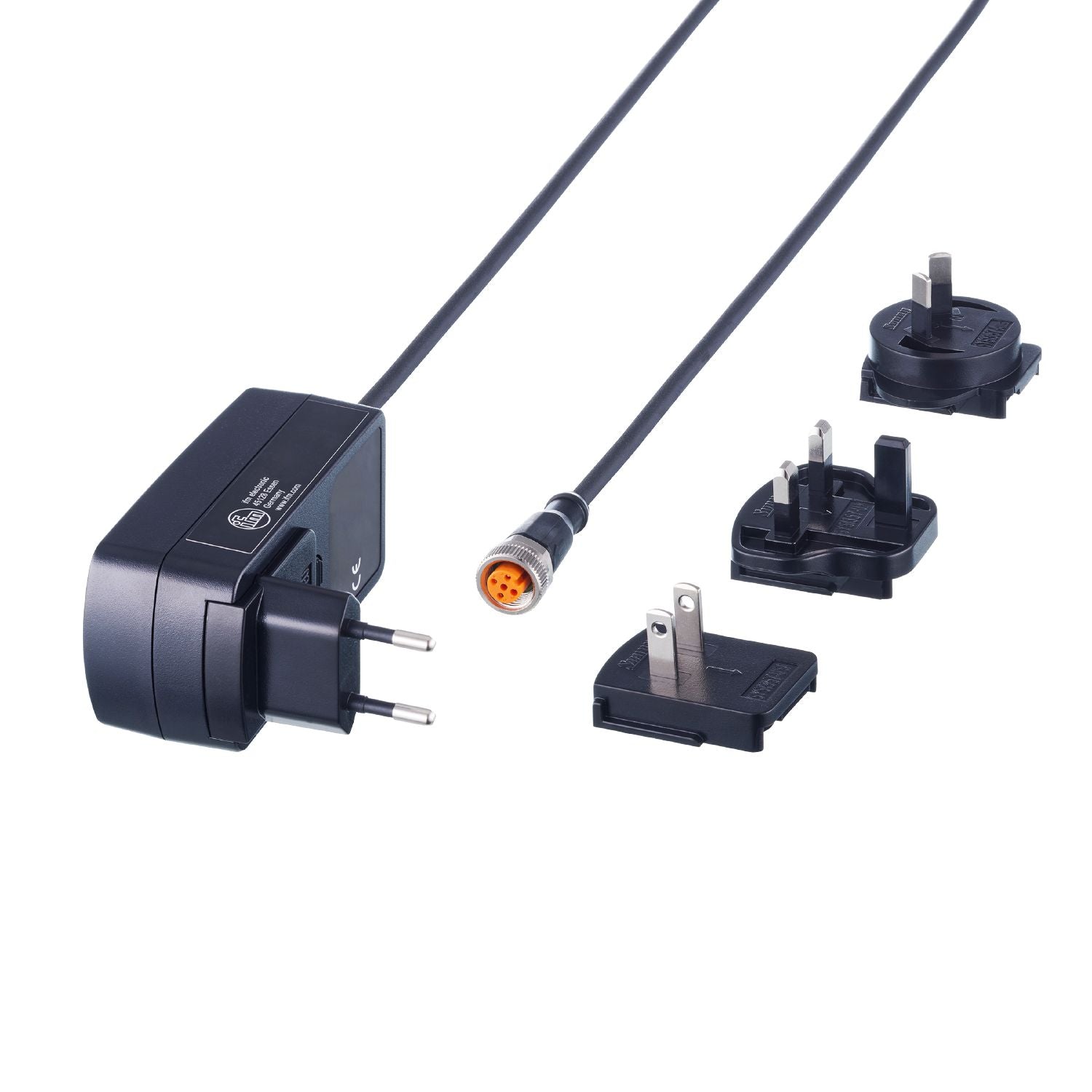

IFM E80121 - Plug-in power supply Power Supply 24VDC/1.0A/ww

Reliable supply of sensors with 24 V DC operating voltage.
Particularly space-saving design.
Easy connection via the tried-and-tested M12 connector

Nominal frequency AC [Hz]	50...60
Input voltage range AC [V]	100...240
Output voltage DC [V]	24
Protection class	II
Max. residual ripple [mV]	300
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]	86.8
Input current (nominal voltage 230 V AC / 50 Hz) [A]	0.75

Outputs

Output current, total [A]	1

Operating conditions

Ambient temperature [°C]	0...40
Protection	IP 40;(M12 connector: IP 69K)

Weight [g]	254.5
Materials	housing: plastics black

Accessories

Items supplied	Mains adapters: 1, EU 1, UK 1, USA 1, AUS

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m; 2 x 0.5 mm²
	Connector: 1 x M12

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80121-00 — 28.06.2019 —
