For reliably coding workpiece carriers in routing conveyors. Easy, quick and secure mounting. High shock and vibration resistance. Large operating temperature range and high protection rating. Very high number of read and write cycles
Application
coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C]
-25...85
Peak temperature (passive) [°C]
120;(duration of test: 1 x 100 h)
Operating frequency [MHz]
0,125
Memory size [bit]
2048
Max. read cycles
unlimited
Max. write cycles
100000
Operating conditions
Ambient temperature [°C]
-25...85
Storage temperature [°C]
-40...90
Protection
IP 67
Tests / approvals
Shock resistance
DIN IEC 68-2-29
30 g 18 ms
Vibration resistance
DIN IEC 68-2-6
6 g 14...200 Hz
Weight [g]
4.5

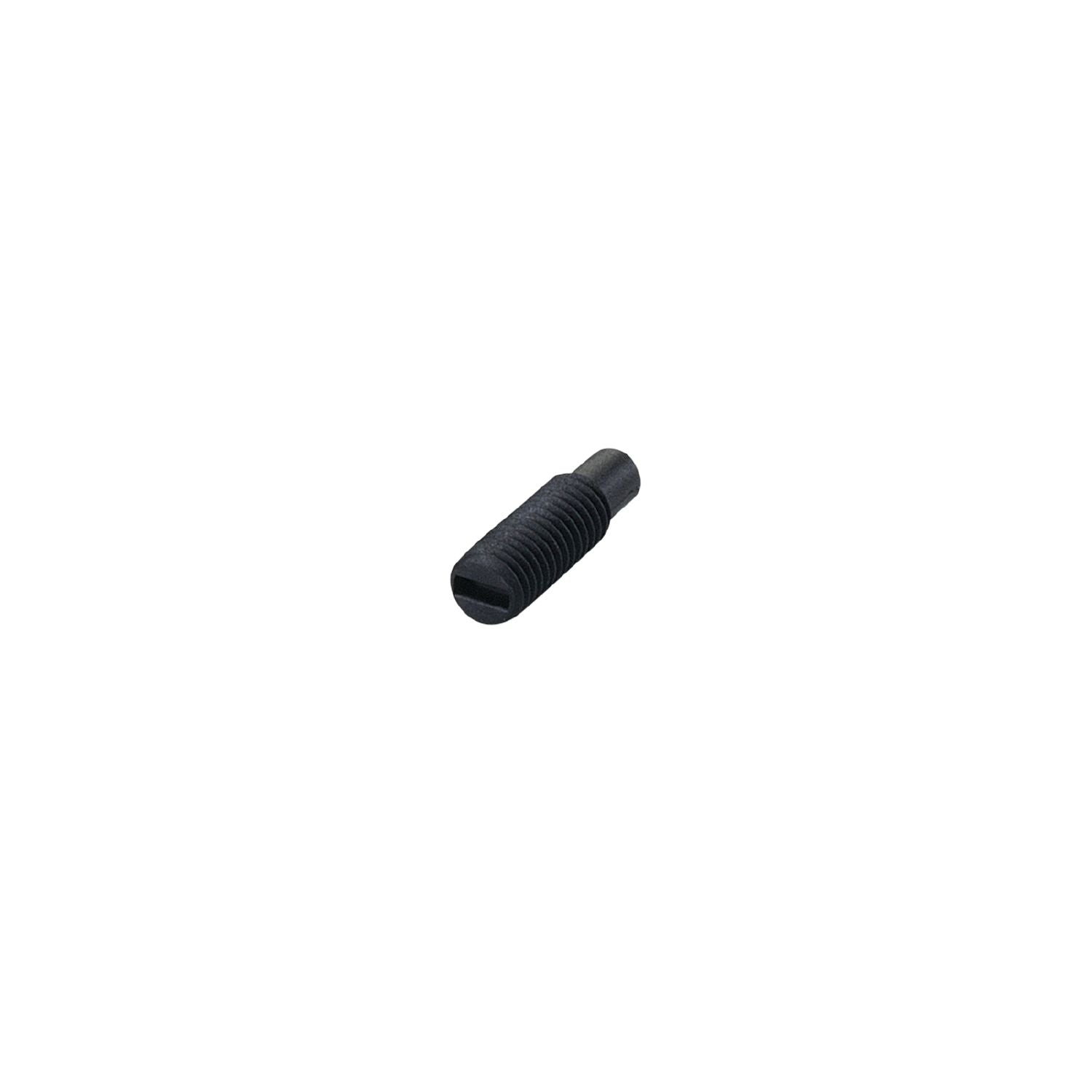

Housing
threaded type
Type of mounting
screw mounting
Dimensions [mm]
M5 x 0.8 / L = 16.5
Thread designation
M5 x 0.8
Materials
PA black
Remarks
peak temperature 1 x 100 h
Storage temperature 1 x 1000 h
shock 3 Achsen je 1084 Schocks
vibration 3 Achsen je 8 h
Pack quantity
10 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80345-00 — 05.11.2020 —
