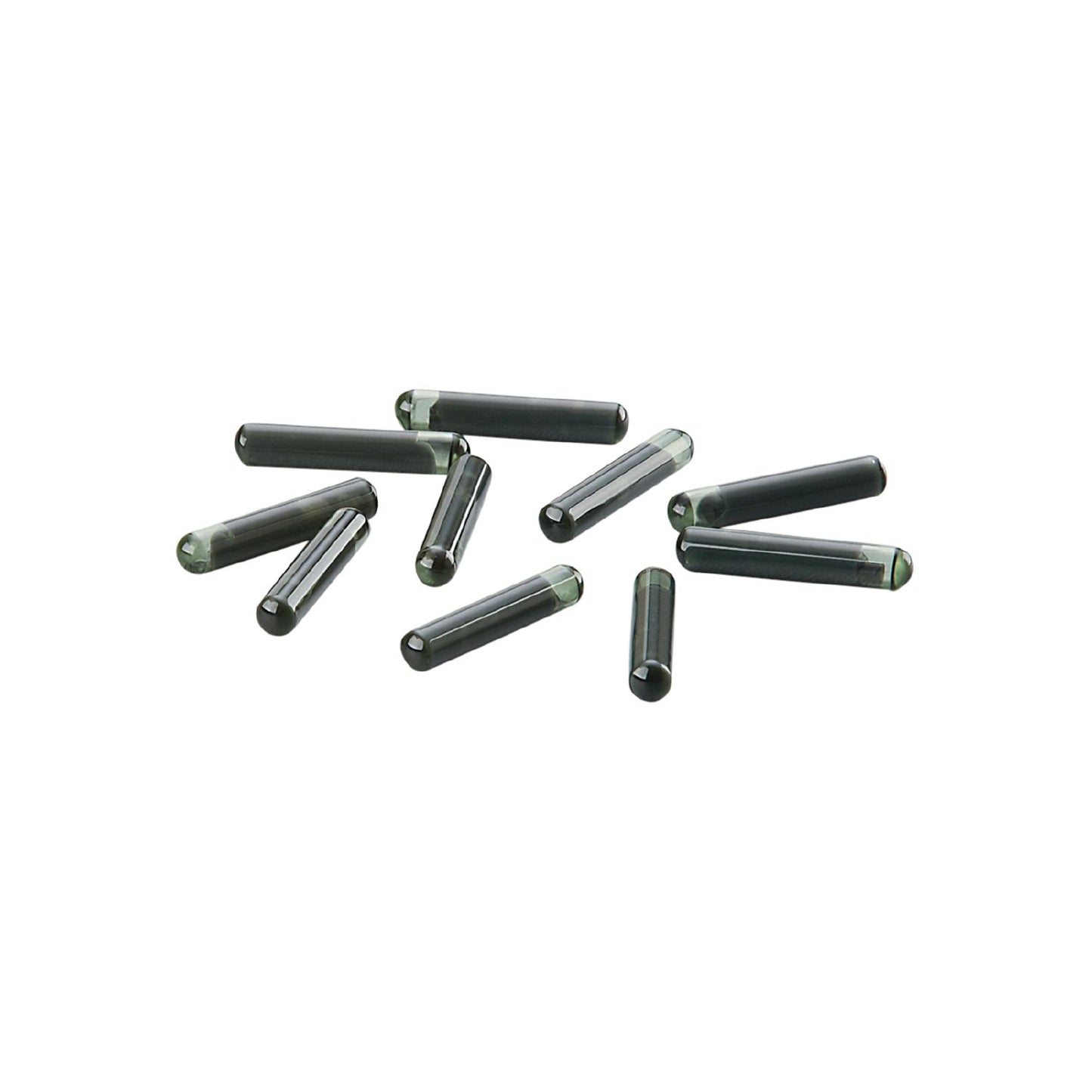

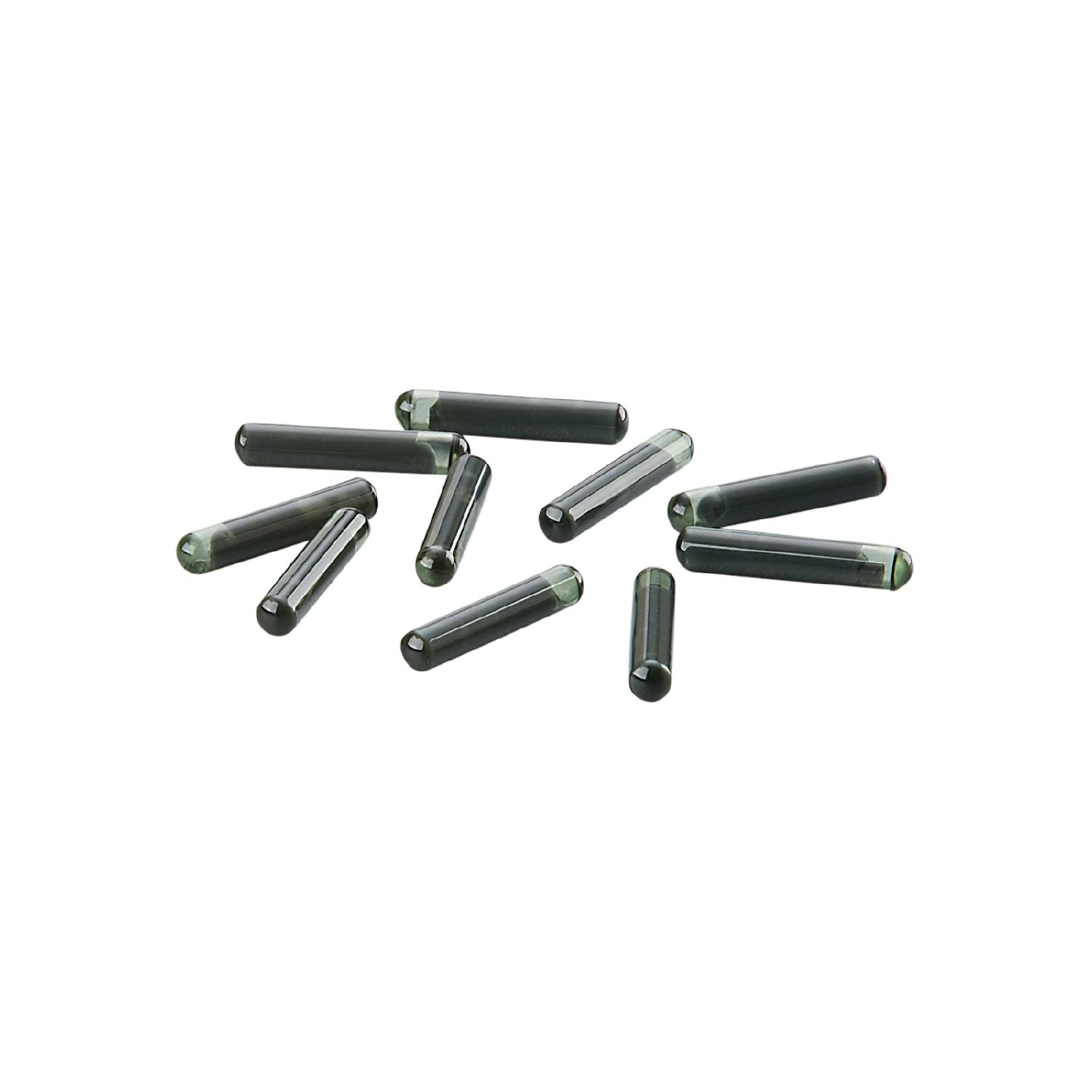

IFM E80385 - RFID tag ID-TAG/D4X22/03 - 2528 bit

RFID tag 13.56 MHz - ISO15693.
Reliable coding of workpiece carriers and products.
High protection rating for the requirements of harsh industrial environments

Application	coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C]	-20...85
Peak temperature (passive) [°C]	90

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	ICODE SLIX
Number of blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-20...85
Storage temperature [°C]	-40...90
Protection	IP 68

Tests / approvals

Shock resistance	DIN IEC 68-2-27 40 g 18 ms
Vibration resistance	DIN IEC 68-2-6 10 g 10...2000 Hz
Radio approval	ISO 15693

Weight [g]	1.85
Type of mounting	installation on non-metal materials;(sticking to a surface)
Dimensions [mm]	Ø 4 / L = 22
Materials	glass

Pack quantity	10 pcs.
