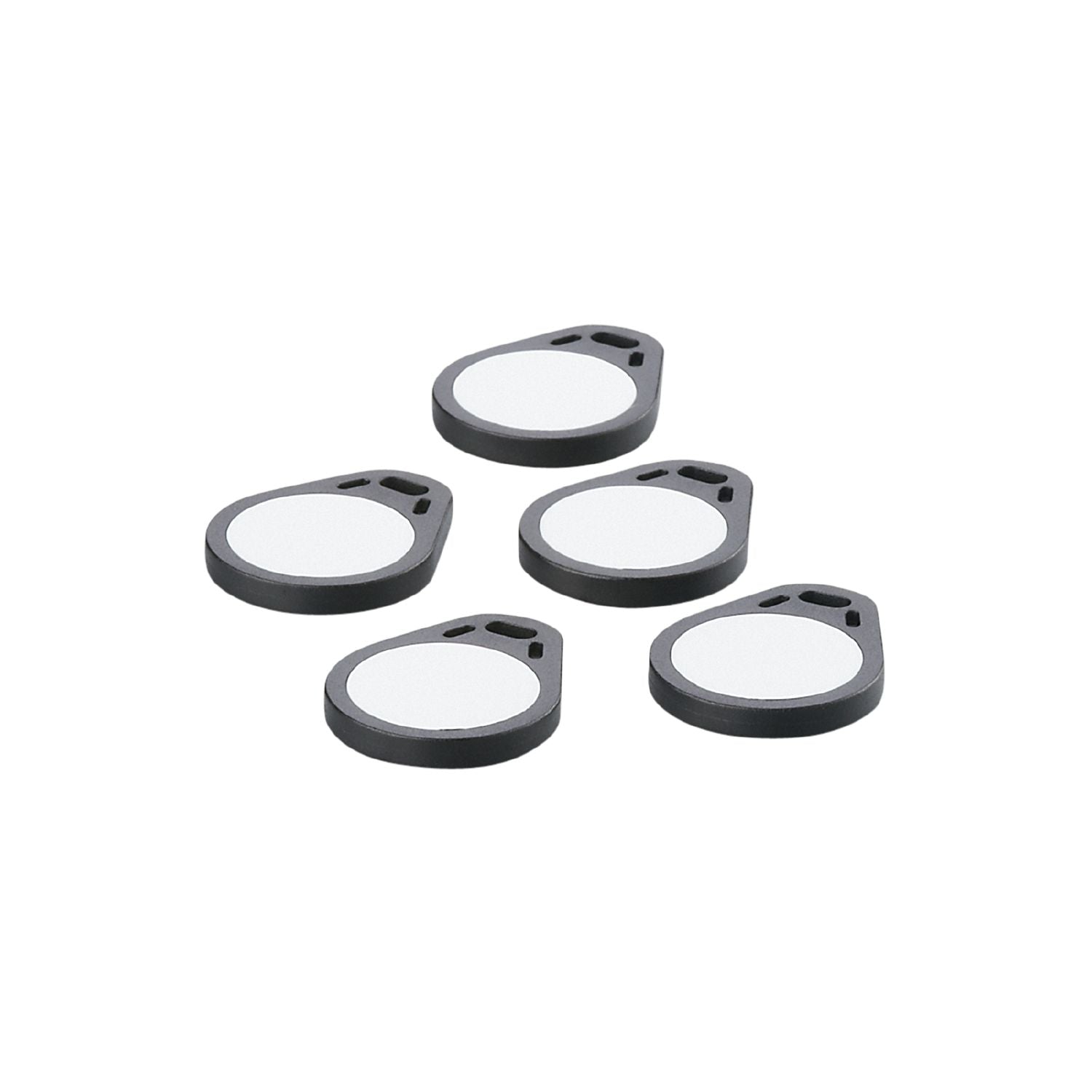

IFM E80387 - RFID tag ID-TAG/Tear Shape/06

RFID tag 13.56 MHz - ISO15693.
Key tags to release machinery or plant.
For use in the food and beverage industry

Application	coding of workpiece carriers in routing conveyors
Operating temperature (active) [°C]	-25...55
Peak temperature (passive) [°C]	75

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	ICODE SLIX
Number of blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-25...55
Storage temperature [°C]	-25...75
Protection	IP 66

Tests / approvals

Shock resistance	DIN IEC 68-2-27 40 g 18 ms
Vibration resistance	DIN IEC 68-2-6 10 g 10...2000 Hz
Radio approval	ISO 15693

Weight [g]	21
Type of mounting	installation on non-metal materials;(fixing eyelet)
Dimensions [mm]	40 x 31 x 4.8
Materials	ABS

Pack quantity	5 pcs.

Other data
