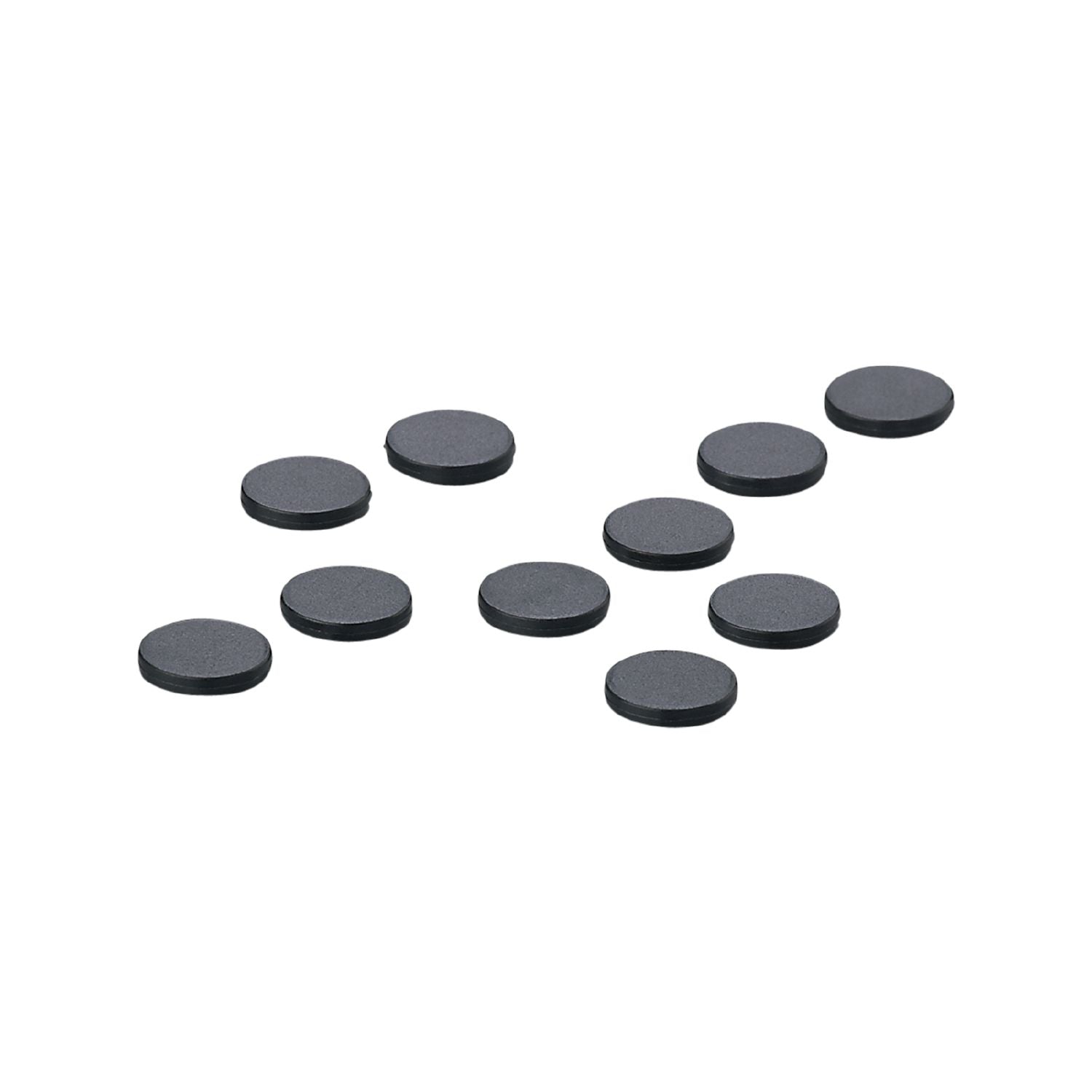

IFM E80388 - RFID tag ID-TAG/12X2.3/06

RFID tag 13.56 MHz - ISO15693.
Reliable coding of workpiece carriers and products.
Small compact tags for installation on metal and non-metal materials

Operating temperature (active) [°C]	-40...90
Peak temperature (passive) [°C]	90

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	Vigo
Number of blocks	32
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-40...90
Storage temperature [°C]	-40...90
Protection	IP 68

Tests / approvals

Shock resistance	DIN IEC 68-2-27 40 g 18 ms
Vibration resistance	DIN IEC 68-2-6 10 g 10...2000 Hz
Radio approval	ISO 15693

Weight [g]	5.4
Type of mounting	Installation on metal and non-metal materials;(sticking to a surface ; In case of installation on metal mount the grey side on the surface)
Dimensions [mm]	Ø 12.3 / L = 2.1
Materials	PPS black; epoxy resin potted

Pack quantity	10 pcs.
