ifm Electronic

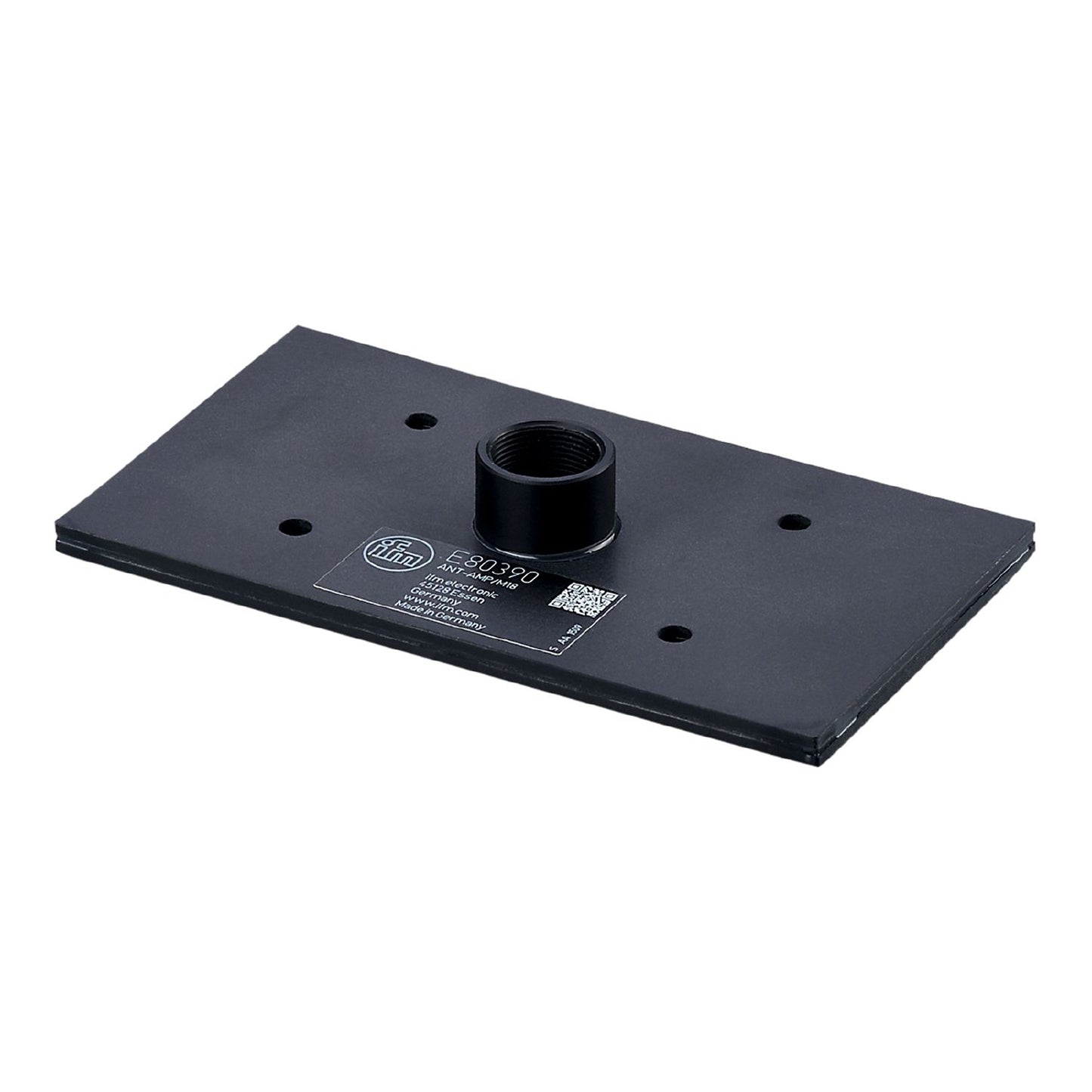

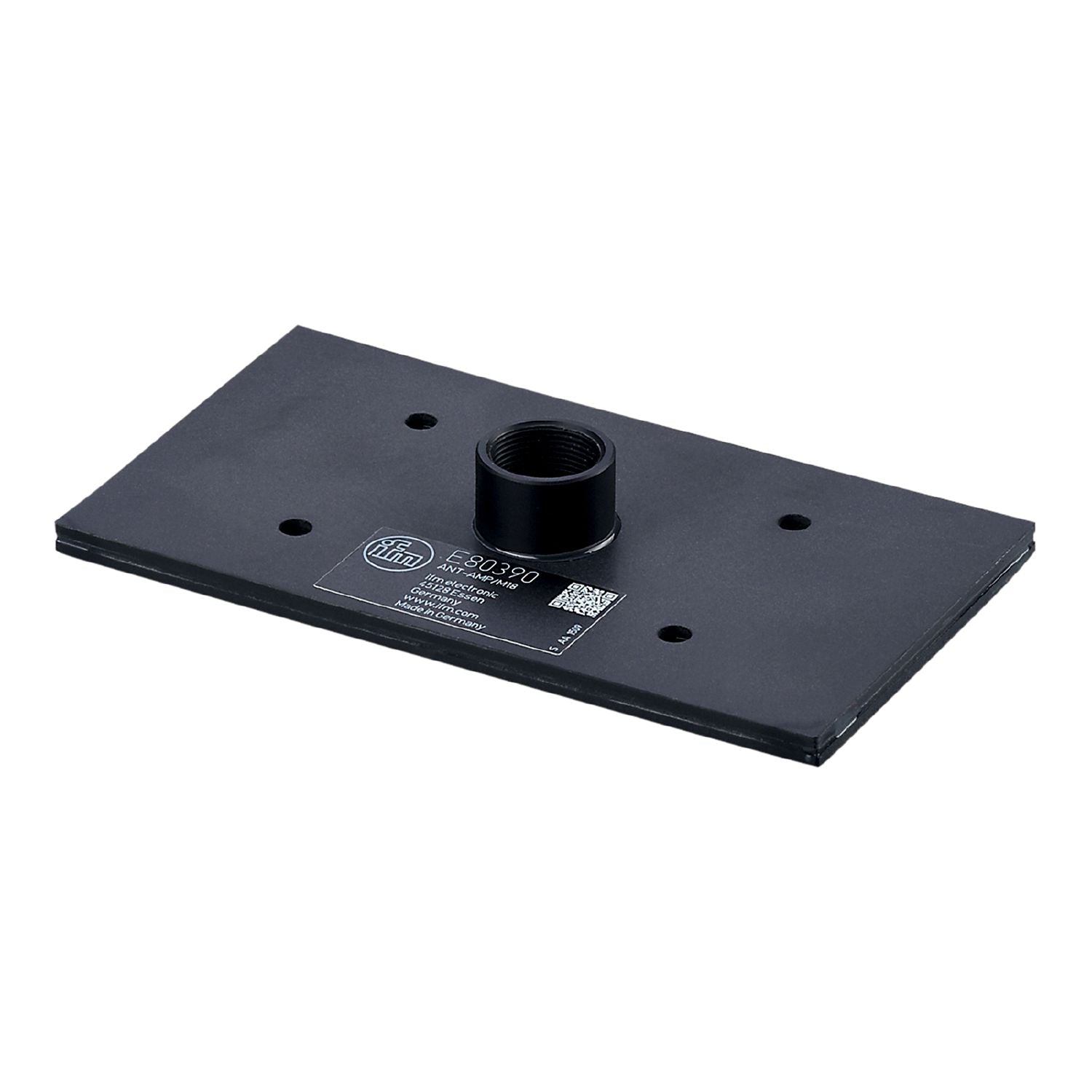

IFM E80390 - RFID antenna adapter to increase the ranges ANT-AMP/136x76/M18
IFM E80390 - RFID antenna adapter to increase the ranges ANT-AMP/136x76/M18
Regular price
€96,91
Regular price
Sale price
€96,91
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:E80390
For increasing the range of RFID antennas.
Quick and easy mounting and fixing
Operating conditions
Other data
View full details
Quick and easy mounting and fixing
| Operating frequency [MHz] | 13,56 |
|---|
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -20...60 |
| Weight [g] | 95.5 |
|---|---|
| Materials | PVC |
| Tightening torque [Nm] | 0.6 |
| Pack quantity | 1 pcs. |
|---|
Tag E80371 (30 mm)
| antenna | range without metal | |||
| ANT420 / DTM424 + E80390 | 30 mm | |||
| ANT421 / DTM425 + E80390 | 80 mm |
Tag E80384 (50 mm)
| antenna | range without metal | |||
| ANT420 / DTM424 + E80390 | 60 mm | |||
| ANT421 / DTM425 + E80390 | 100 mm |
Tag E80320 (ISO card)
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80390-00 — 09.11.2015 —
| antenna | range without metal | |||
| ANT420 / DTM424 + E80390 | 75 mm | |||
| ANT421 / DTM425 + E80390 | 150 mm |
