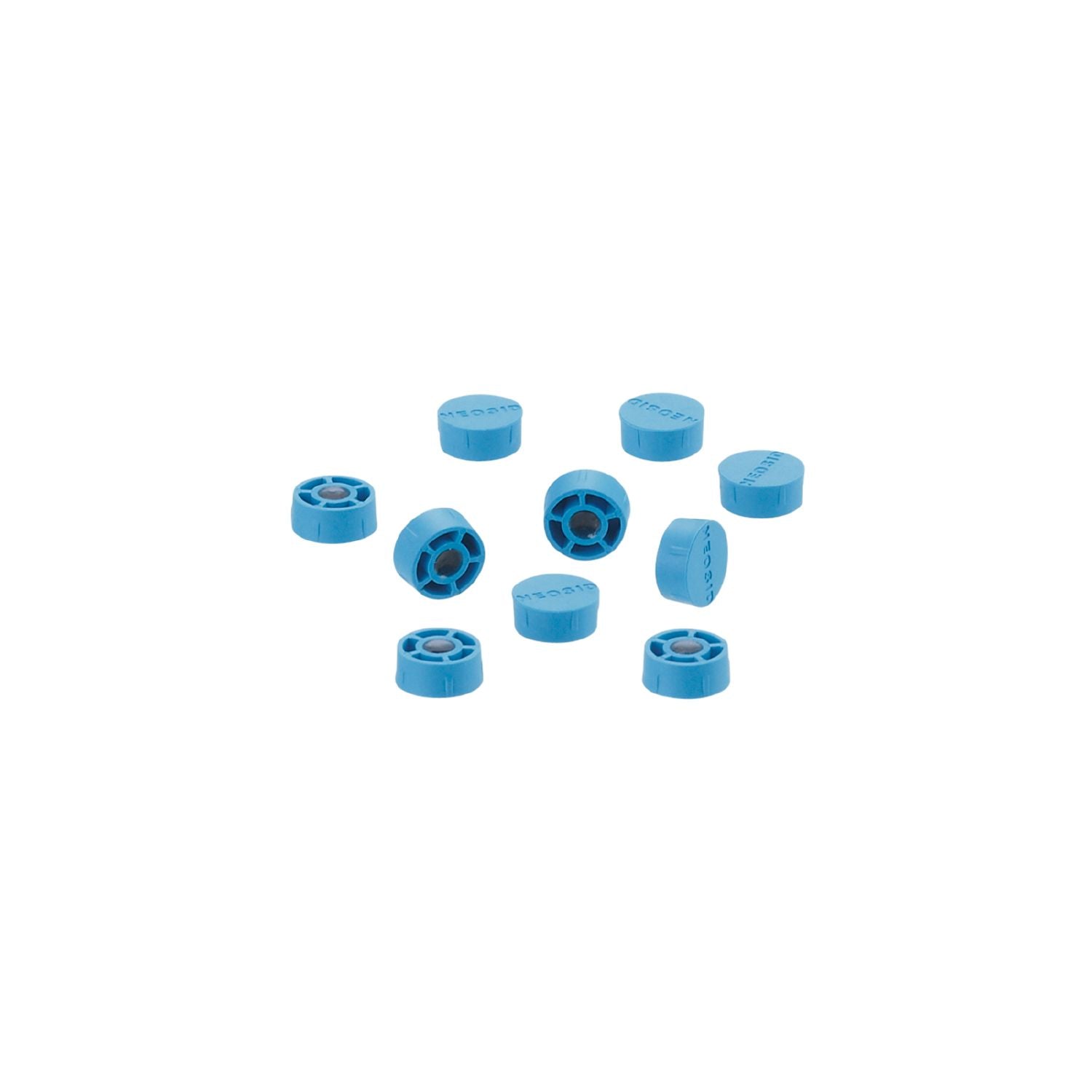

IFM E80415 - RFID tag ID-TAG/10,1X3,9/03 (10 pieces)

Operating temperature (active) [°C]	-40...85
Peak temperature (passive) [°C]	90

Operating frequency [MHz]	13,56
Memory size [bit]	896
Memory type	EEPROM
Chip type	ICODE SLIX
Number of blocks	28
Block size [Byte]	4
Unique Identification Number (UID) [Byte]	8
RFID standard	ISO 15693
Max. read cycles	unlimited
Max. write cycles	100000

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...90
Protection	IP 68

Tests / approvals

Radio approval	ISO 15693

Weight [g]	5
Type of mounting	Press-fit housing; Installation in metal
Dimensions [mm]	Ø 10.3 / L = 4
Materials	housing: PPA GF30; epoxy resin

Pack quantity	10 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80415-00 — 07.01.2020 —
