ifm Electronic

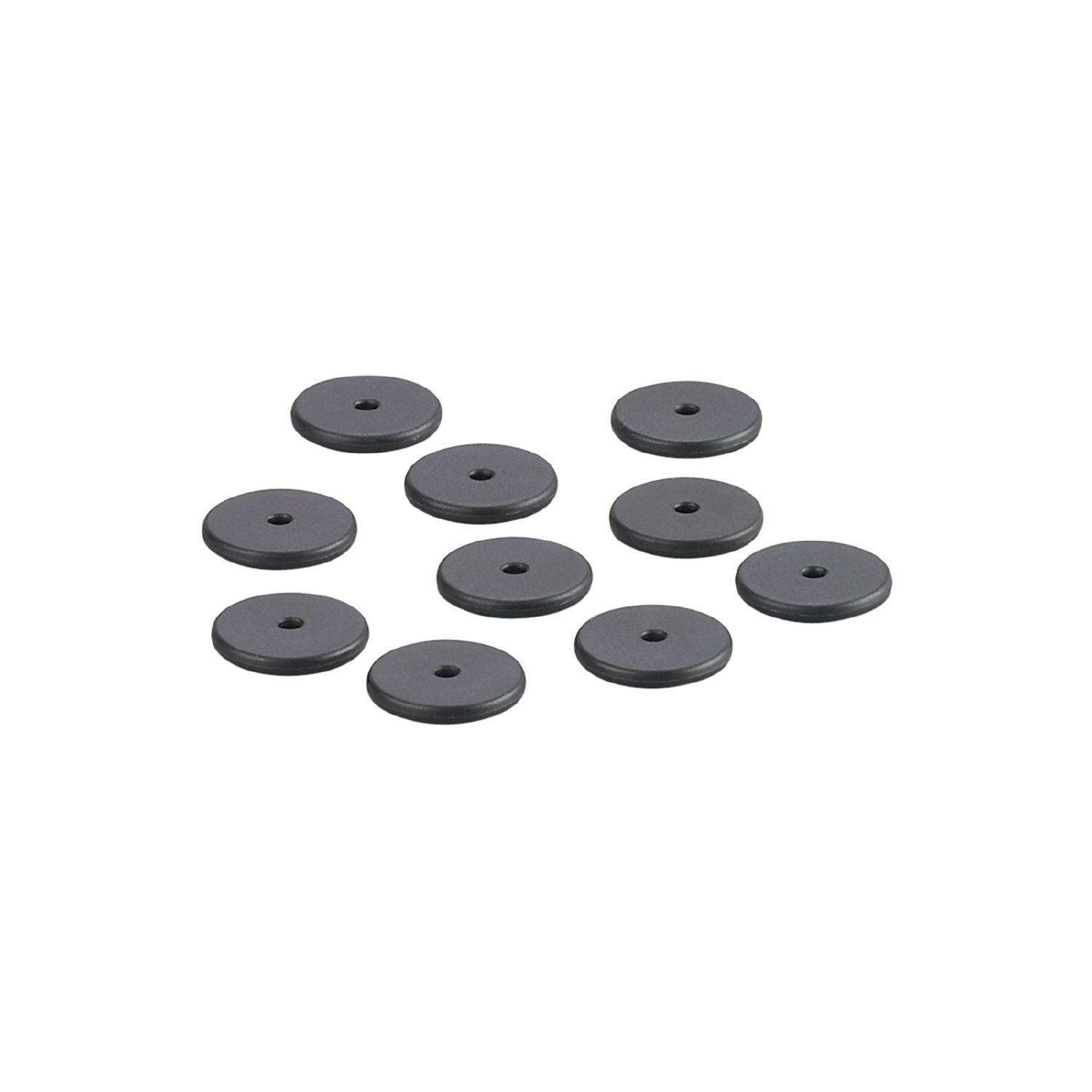

IFM E80418 - RFID tag ID-TAG/22 X 3.0 / 03

IFM E80418 - RFID tag ID-TAG/22 X 3.0 / 03

€84,76
€84,76
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: E80418


Operating temperature (active) [°C] -25...85
Peak temperature (passive) [°C] 120
Operating frequency [MHz] 13,56
Memory size [bit] 16000
Memory type FRAM
Chip type MB89R118C
Number of blocks 250
Block size [Byte] 8
Unique Identification Number (UID) [Byte] 8
RFID standard ISO 15693
Max. read cycles unlimited
Max. write cycles unlimited
Operating conditions
Ambient temperature [°C] -25...85
Storage temperature [°C] -25...120
Protection IP 68
Tests / approvals
Shock resistance
DIN IEC 68-2-27 40 g 18 ms
Vibration resistance
DIN IEC 68-2-6 10 g 10...2000 Hz
Radio approval ISO 15693
Weight [g] 18.4
Type of mounting Installation on metal and non-metal materials;(screw fastening ; sticking to a surface ; In case of installation on metal, mount marked side on surface (marking: B or dot))
Dimensions [mm] Ø 22 / L = 3
Materials nylon
Remarks
Pack quantity 10 pcs.
Other data
Reading distance when mounted on non-metal (mm)
ANT410 / DTI410 9
ANT411 / DTI411 11
ANT420 / DTI420 / DTM424 / DTI424 / DTM426 6
ANT421 / DTI421 / DTM425 / DTI425 / DTM427 16
ANT430 / DTI430 / DTM434 / DTI434 / DTM436 15
ANT431 / DTI431 / DTM435 / DTI435 / DTM437 20
ANT513 / DTI513 / DTC510 28
ANT515 / DTI515 / ANT516 / DTI516 7
ANT600 / DTI600 28
read distance when mounted on metal (mm)
ANT410 / DTI410 12
ANT411 / DTI411 8
ANT420 / DTI420 / DTM424 / DTI424 / DTM426 8
ANT421 / DTI421 / DTM425 / DTI425 / DTM427 19
ANT430 / DTI430 / DTM434 / DTI434 / DTM436 21
ANT431 / DTI431 / DTM435 / DTI435 / DTM437 26
ANT513 / DTI513 / DTC510 34
ANT515 / DTI515 / ANT516 / DTI516 17
ANT600 / DTI600 27
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80418-00 — 29.06.2021 —
