ifm Electronic

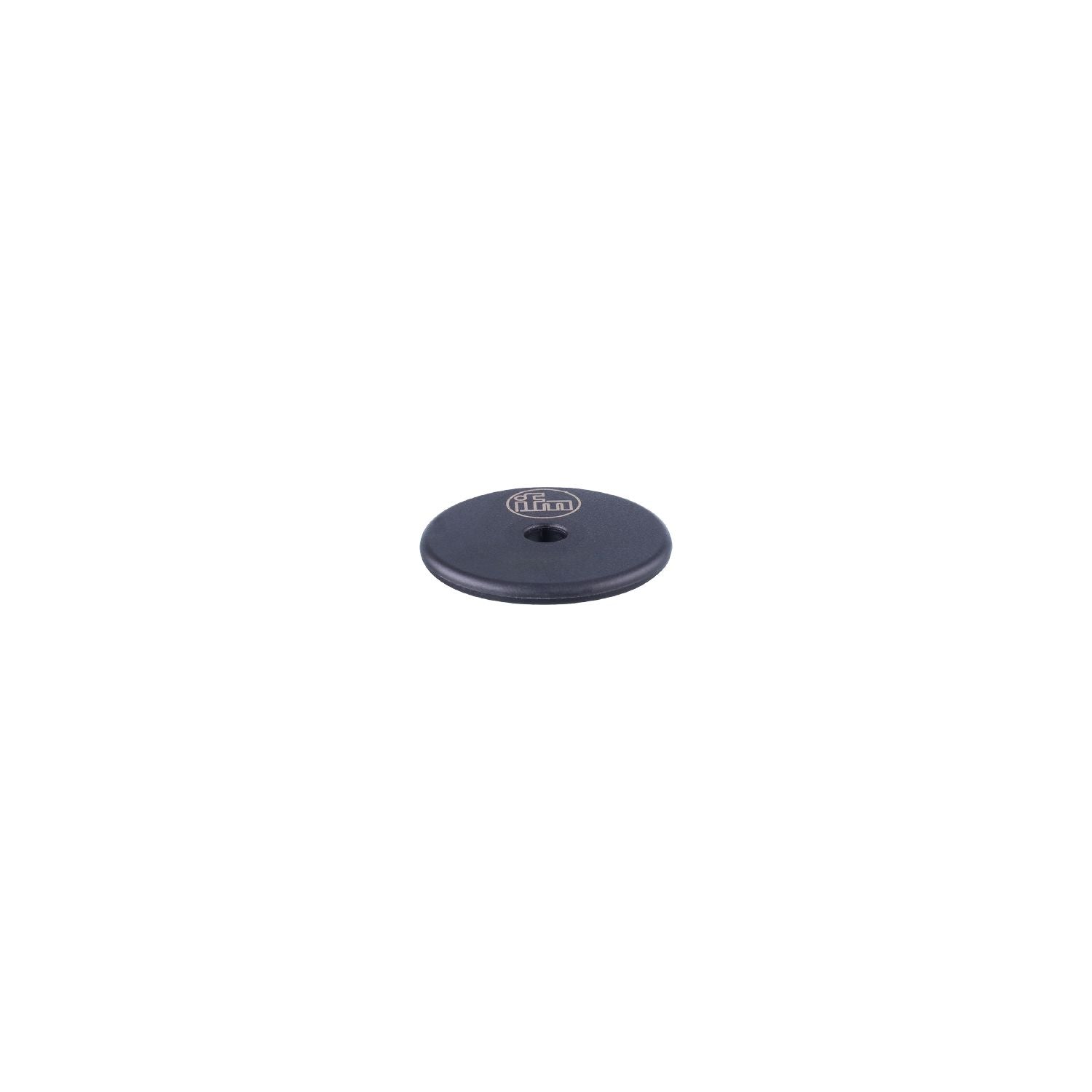

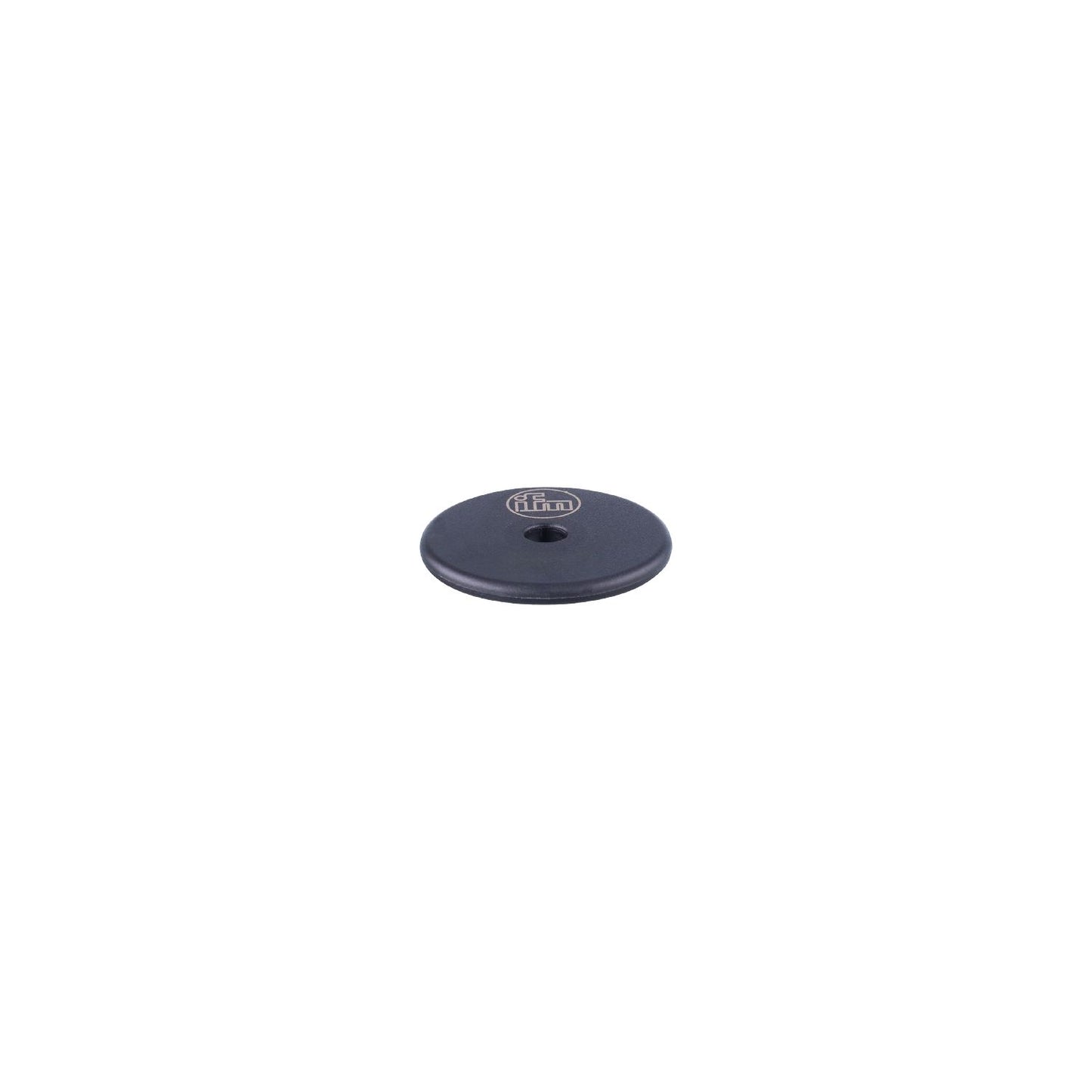

IFM E80426 - RFID tag ID-TAG/D30x2.5/6 - 2528 bit

IFM E80426 - RFID tag ID-TAG/D30x2.5/6 - 2528 bit

€85,98
€85,98
Sale Sold out
Taxes included.

📦 Ready for dispatch: 04.12.2025

SKU: E80426


Operating temperature (active) [°C] -40...85
Peak temperature (passive) [°C] 90
Operating frequency [MHz] 13,56
Memory size [bit] 896
Memory type EEPROM
Chip type ICODE SLIX2
Number of blocks 28
Block size [Byte] 4
Unique Identification Number (UID) [Byte] 8
RFID standard ISO 15693
Max. read cycles unlimited
Max. write cycles 100000
Operating conditions
Ambient temperature [°C] -40...85
Storage temperature [°C] -40...90
Protection IP 68; IP 69K
Tests / approvals
Shock resistance
DIN IEC 68-2-27 40 g 18 ms
Vibration resistance
DIN IEC 68-2-6 10 g 10...2000 Hz
Radio approval ISO 15693
Weight [g] 31
Type of mounting installation on non-metal materials;(screw fastening ; sticking to a surface)
Dimensions [mm] Ø 30 / L = 3
Materials PA 6 black
Pack quantity 10 pcs.
Other data
Reading distance when mounted on non-metal (mm)
ANT410 / DTI410 15
ANT411 / DTI411 20
ANT420 / DTI420 / DTM424 / DTI424 / DTM426 15
ANT421 / DTI421 / DTM425 / DTI425 / DTM427 40
ANT430 / DTI430 / DTM434 / DTI434 / DTM436 30
ANT431 / DTI431 / DTM435 / DTI435 / DTM437 50
ANT513 / DTI513 / DTC510 65
ANT515 / DTI515 / ANT516 / DTI516 35
ANT600 / DTI600 140
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80426-00 — 18.10.2023 —
