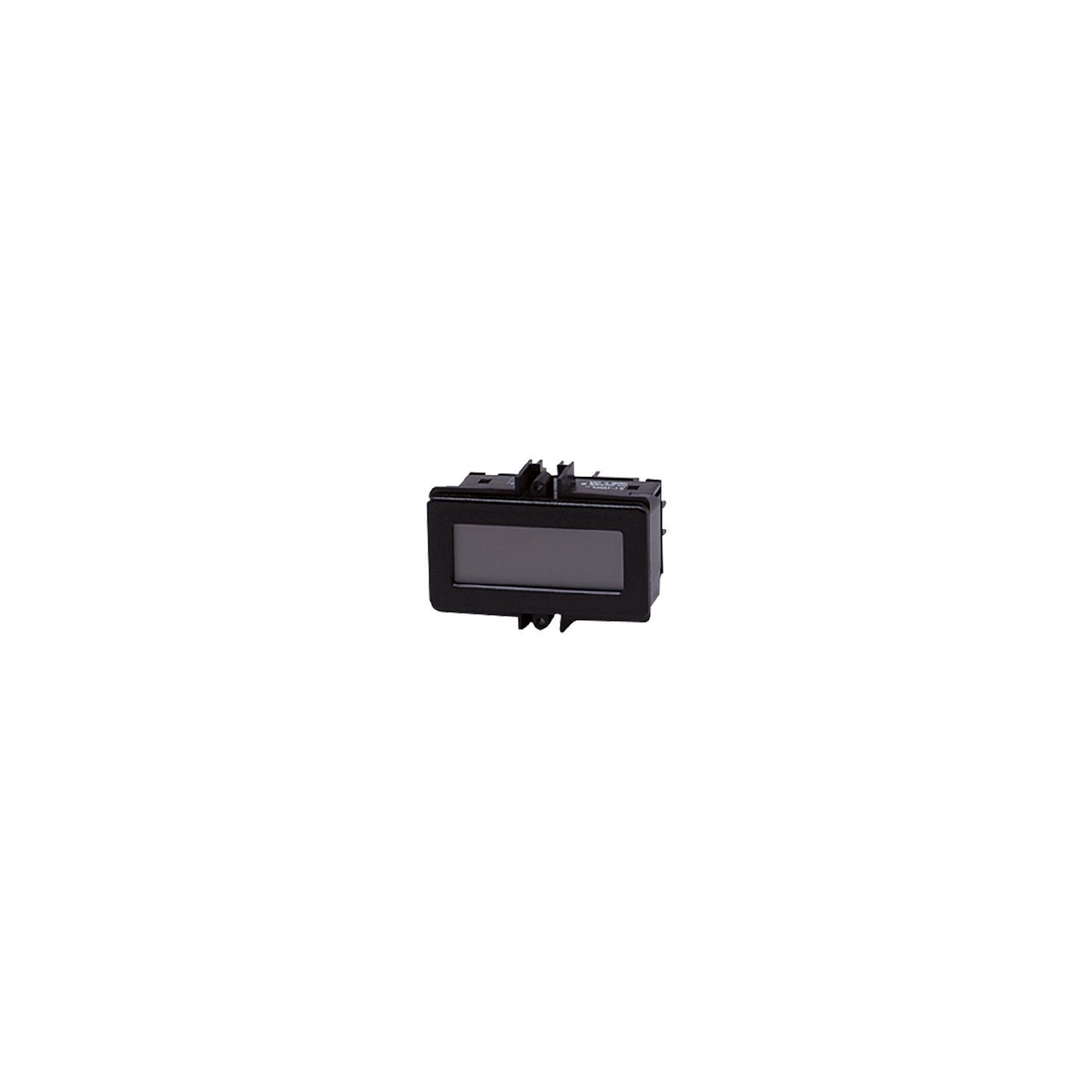

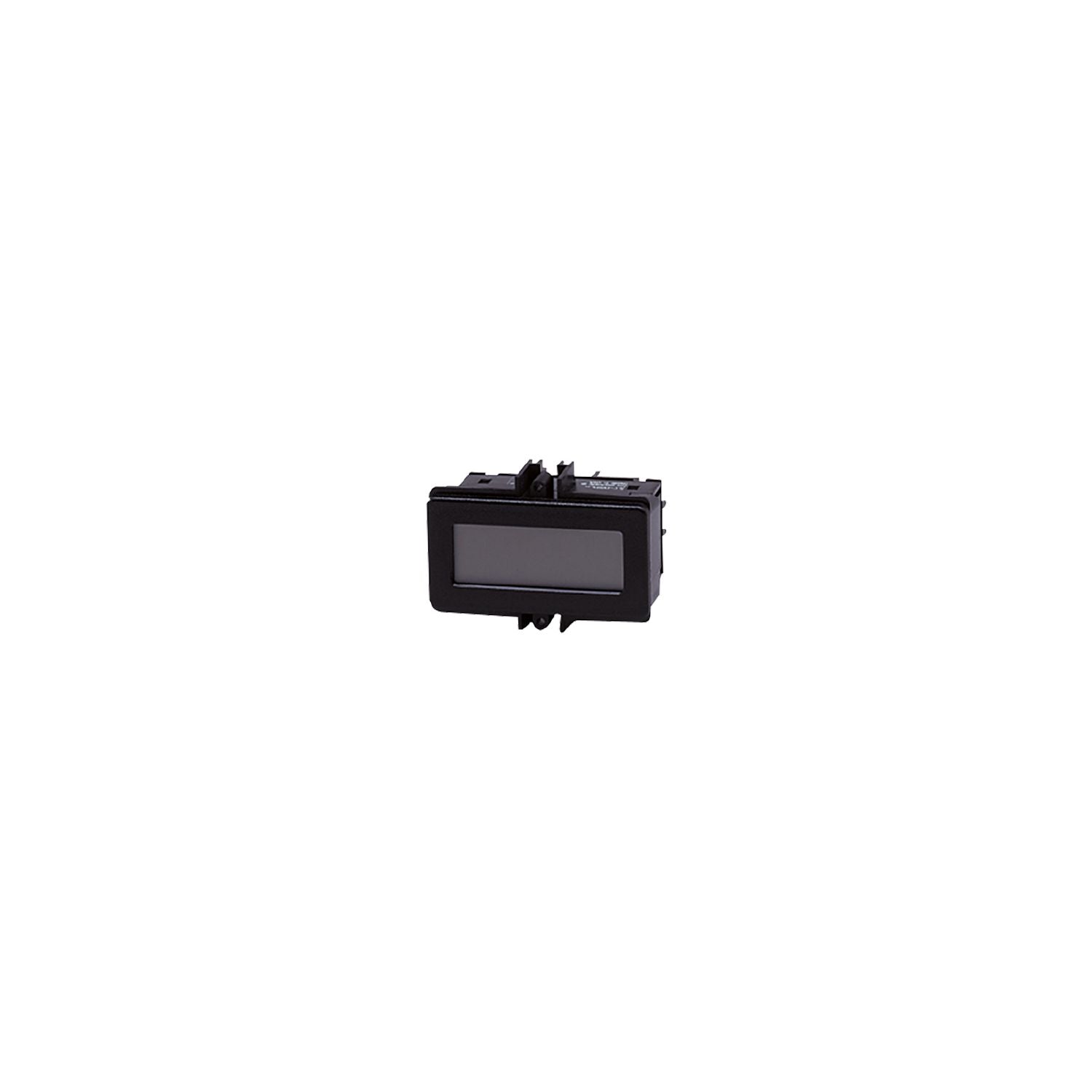

IFM E89150 - LC display LC-DISPLAY

Reliable monitoring of sensors with analogue standard signals.
Easy scaling of the displayed value range via potentiometer.
Clearly visible LCD display.
Direct supply from the current loop of the analogue output.
Dust-tight and hose-water proof installation in control panels

Housing	housing for panel mounting
Dimensions [mm]	39 x 75 x 54

Application	scalable display for sensors with analogue output

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 1

Inputs

Number of analogue inputs	1
Analogue input (voltage) [V]	10...50

Operating conditions

Ambient temperature [°C]	0...60
Protection	IP 65;(mounted with washer)

Weight [g]	120
Housing	housing for panel mounting
Dimensions [mm]	39 x 75 x 54
Materials	plastics

Electrical connection

Connection	terminals: ...2.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E89150-00 — 06.03.2003 —
