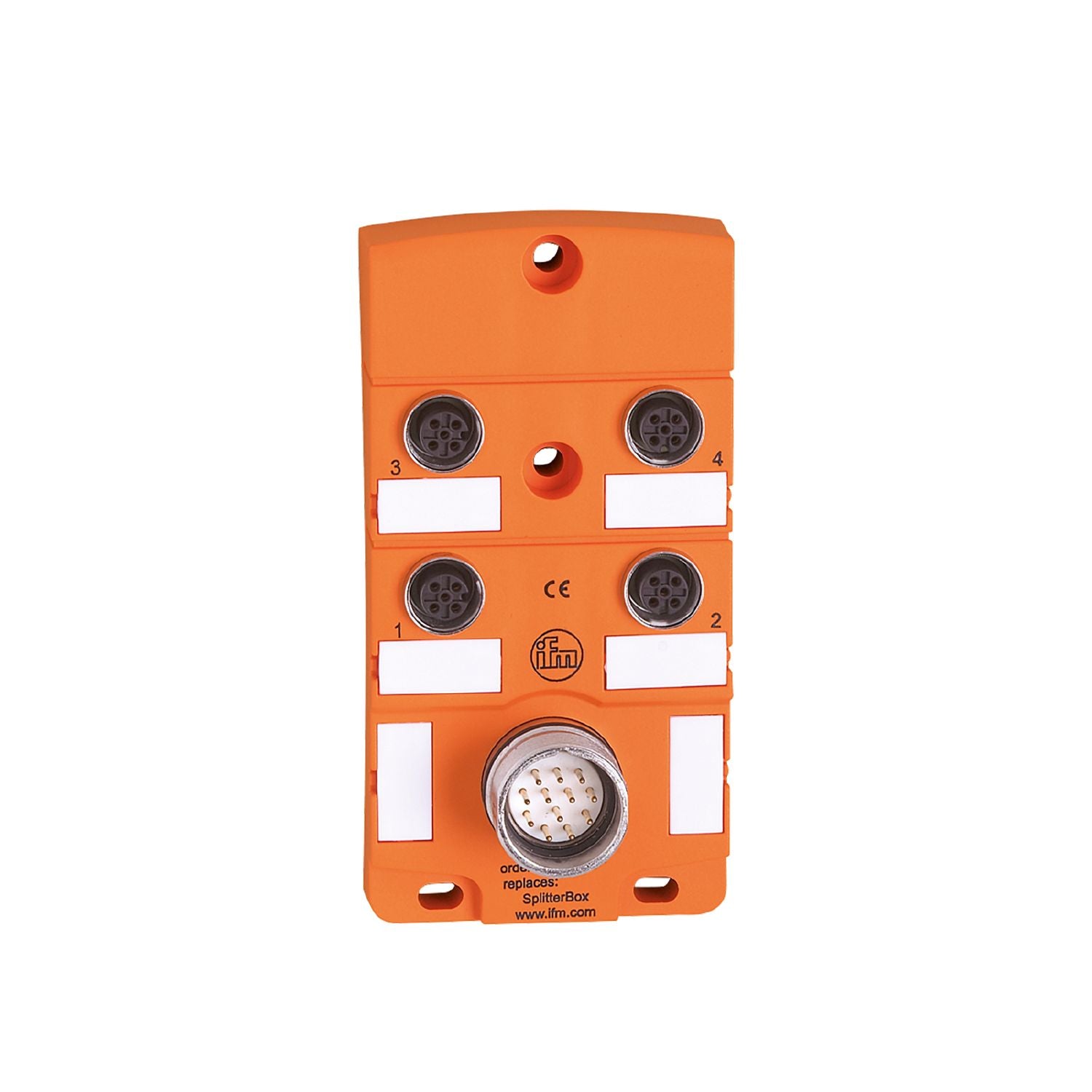

IFM EBC001 - Splitter box ZDO4H050MSS0000-00STAK120MSS

Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools.
Mechanical end stop to protect the O-ring from destruction.
Robust housing for use in harsh industrial environments.
High shock and vibration resistance

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 30 DC;("supply class 2" to cULus)
Max. current load per module/slot [A]	4
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

UL approval	Enclosure type Type 1

Weight [g]	236.5
Dimensions [mm]	33 x 60 x 118.2
Materials	PA
Moulded-body material	PA
Number of ports splitter box	4
Connector type	M12

Accessories

Items supplied	Protective caps: 2 labels: 4

Pack quantity	1 pcs.

Electrical connection - Connection

Connection	Connector: 1 x M23; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

Electrical connection - slot

	Connector: 4 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm
