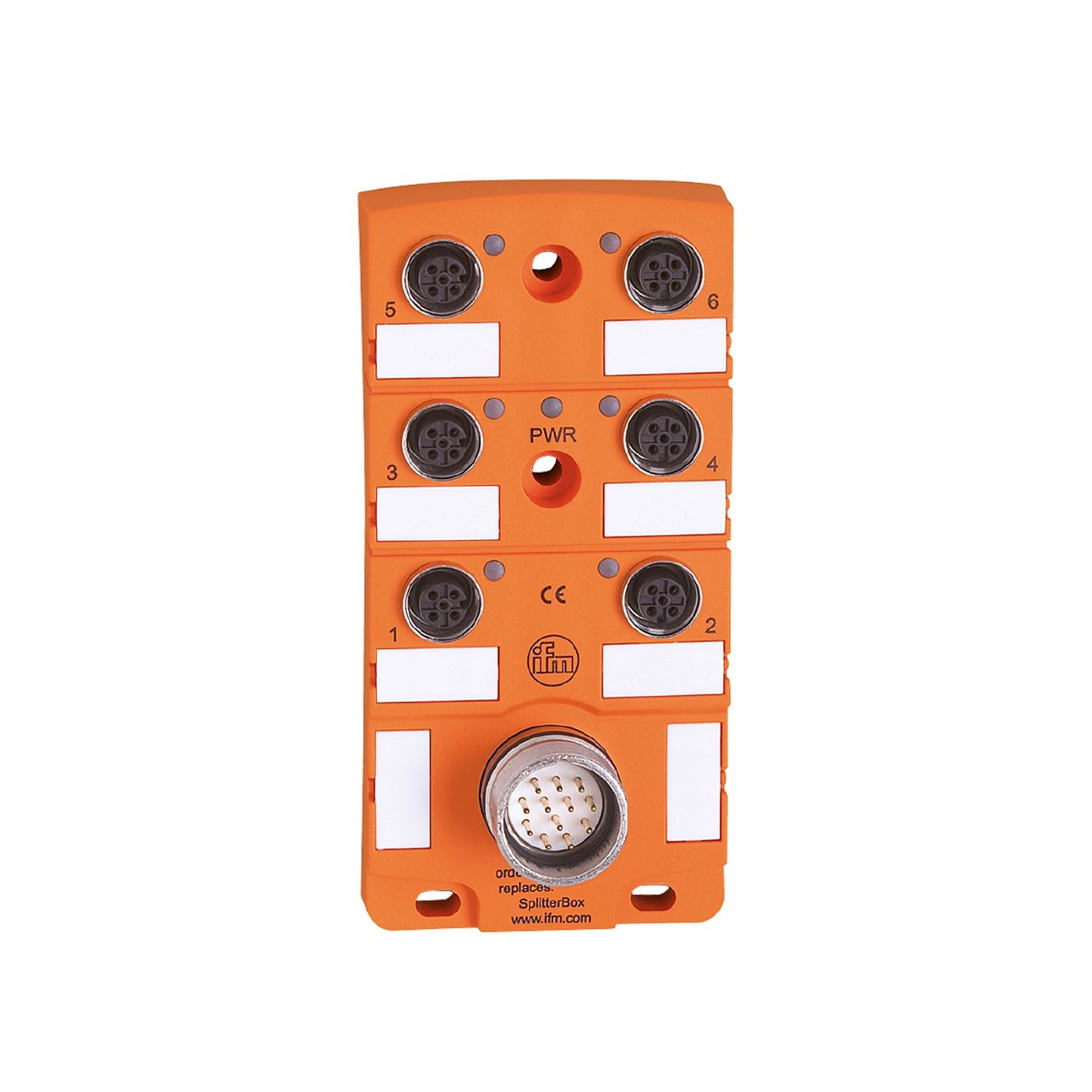

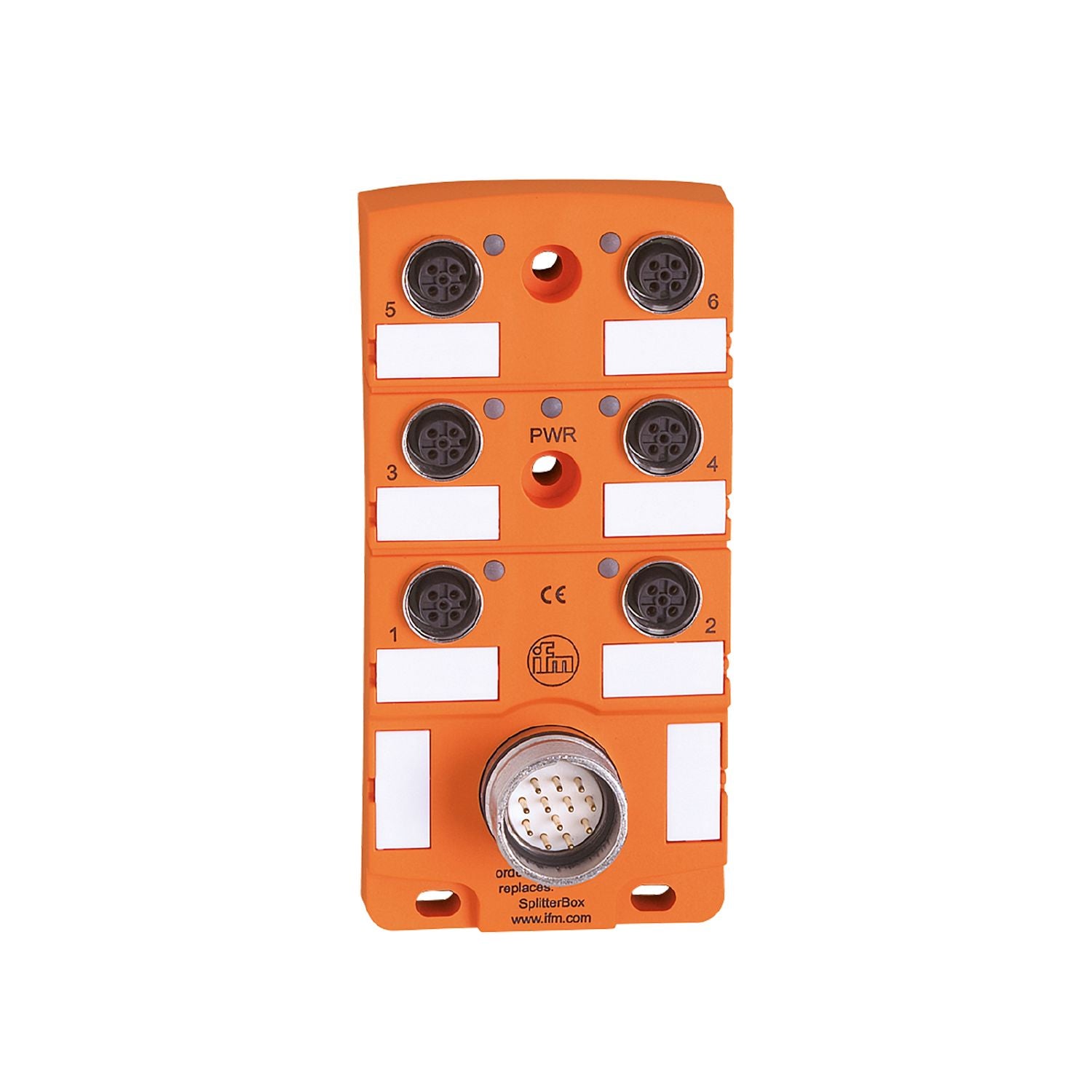

IFM EBC006 - Splitter box ZDO6H057MSS0000-00STAK120MSS

Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools.
Mechanical end stop to protect the O-ring from destruction.
Robust housing for use in harsh industrial environments.
LEDs clearly visible even under bright lighting

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Max. current load per module/slot [A]	4
Max. current load total [A]	12

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

UL approval	Enclosure type Type 1

Weight [g]	240.5
Dimensions [mm]	33 x 60 x 125
Materials	PA
Moulded-body material	PA
Number of ports splitter box	6
Connector type	M12

Displays / operating elements

Display	switching status 6 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	Protective caps: 2 labels: 6

Pack quantity	1 pcs.

Electrical connection - Connection

Connection	Connector: 1 x M23; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

Electrical connection - slot

	Connector: 6 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC006-00 — 05.11.2020 —
