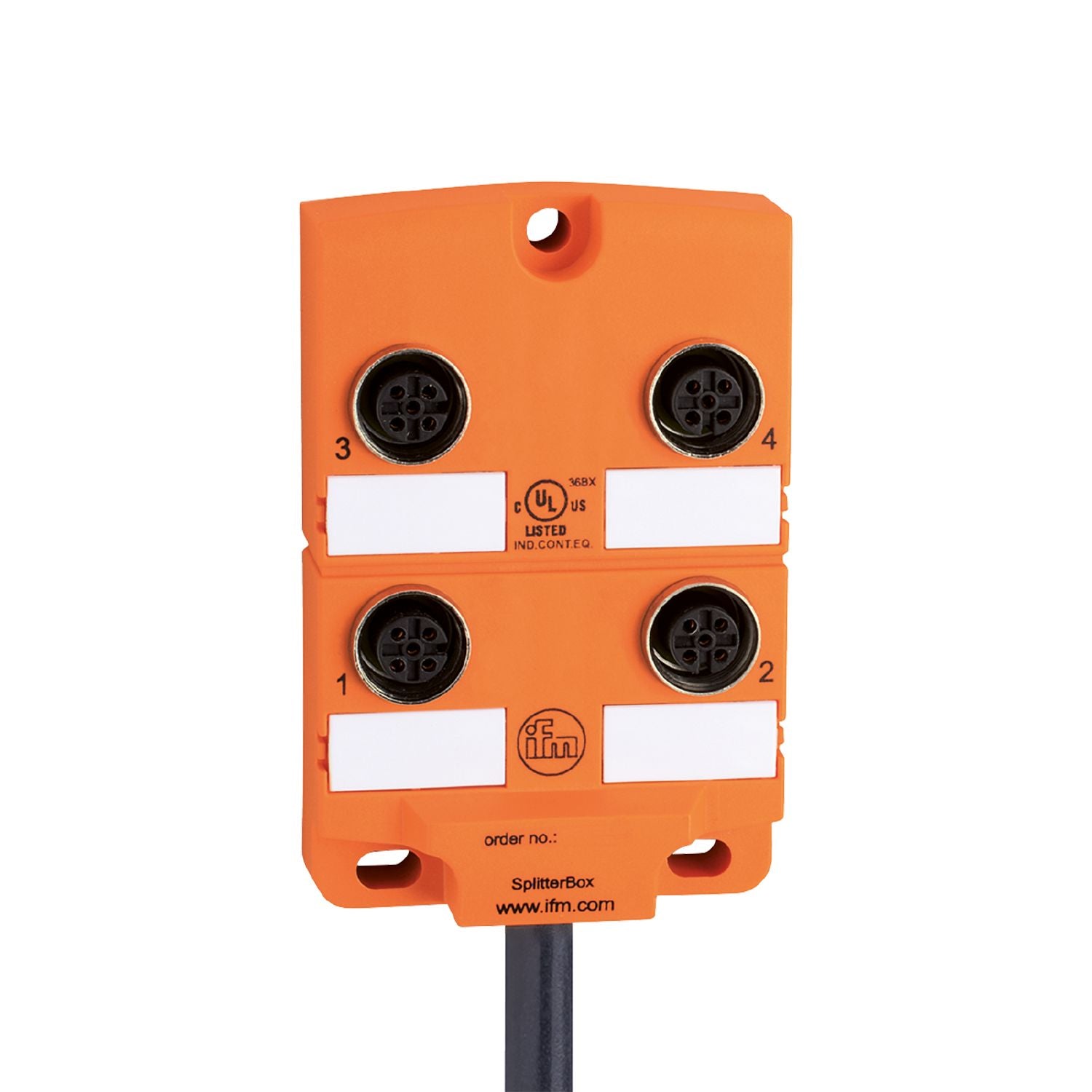

IFM EBC013 - Splitter box ZDO4H050MSS0005H07

Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools.
Mechanical end stop to protect the O-ring from destruction.
Robust housing for use in harsh industrial environments.
High shock and vibration resistance

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes

Operating voltage [V]	< 30 DC;("supply class 2" to cULus)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...80
Ambient temperature (moving) [°C]	-5...60
Protection	IP 67; IP 68

Tests / approvals

UL approval	Enclosure type Type 1

Weight [g]	537
Dimensions [mm]	18 x 54 x 82
Materials	PA
Moulded-body material	PA
Number of ports splitter box	4
Connector type	M12
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter bending cycles > 2 Mio.

Accessories

Items supplied	Protective caps: 2 labels: 4

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 7.5 mm; 4 x 0.34 mm² (43 x Ø 0.1 mm ) + 3 x 1 mm² (55 x Ø 0.15 mm )

Electrical connection - slot

Connection	Connector: 4 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC013-01 — 05.11.2020 —
