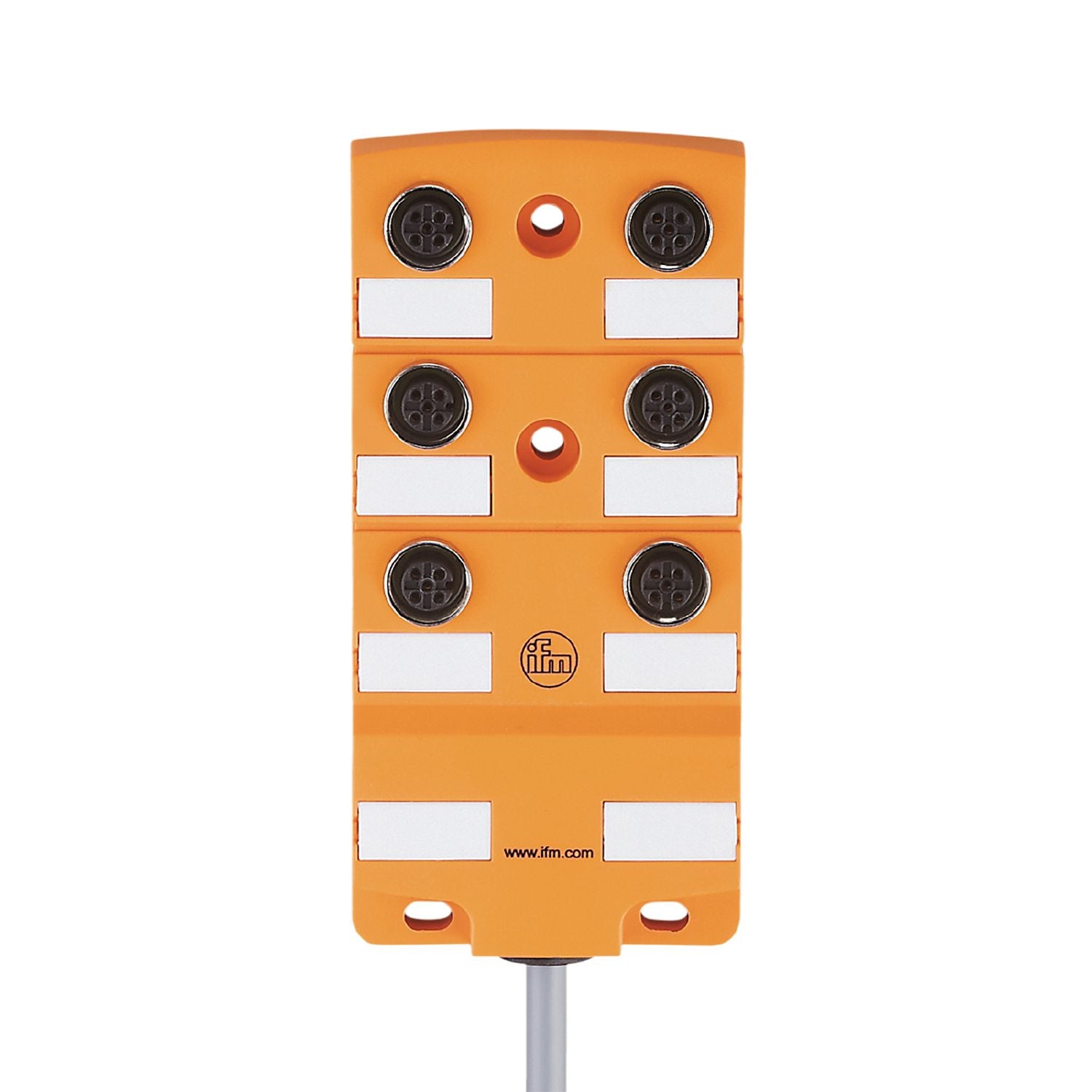

IFM EBC043 - Splitter box ZDO6H050MSS0010E15

Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools.
Mechanical end stop to protect the O-ring from destruction.
Robust housing for use in harsh industrial environments.
Clearly visible LEDs for indicating switching status and operation

Special feature	Gold-plated contacts

Operating voltage [V]	< 30 DC;("supply class 2" to cULus)
Max. current load per module/slot [A]	4;(per pin: 2; per group: 8)
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...40
Ambient temperature (moving) [°C]	-5...60
Protection	IP 67

Tests / approvals

UL approval	Enclosure type Type 1

Weight [g]	880
Dimensions [mm]	22 x 60 x 125
Materials	PA
Moulded-body material	PA
Number of ports splitter box	6
Connector type	M12

Accessories

Items supplied	labels: 6

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PVC, black, Ø 6.3 mm; 5 x 0.5 mm²

Electrical connection - slot

Connection	Connector: 6 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm
