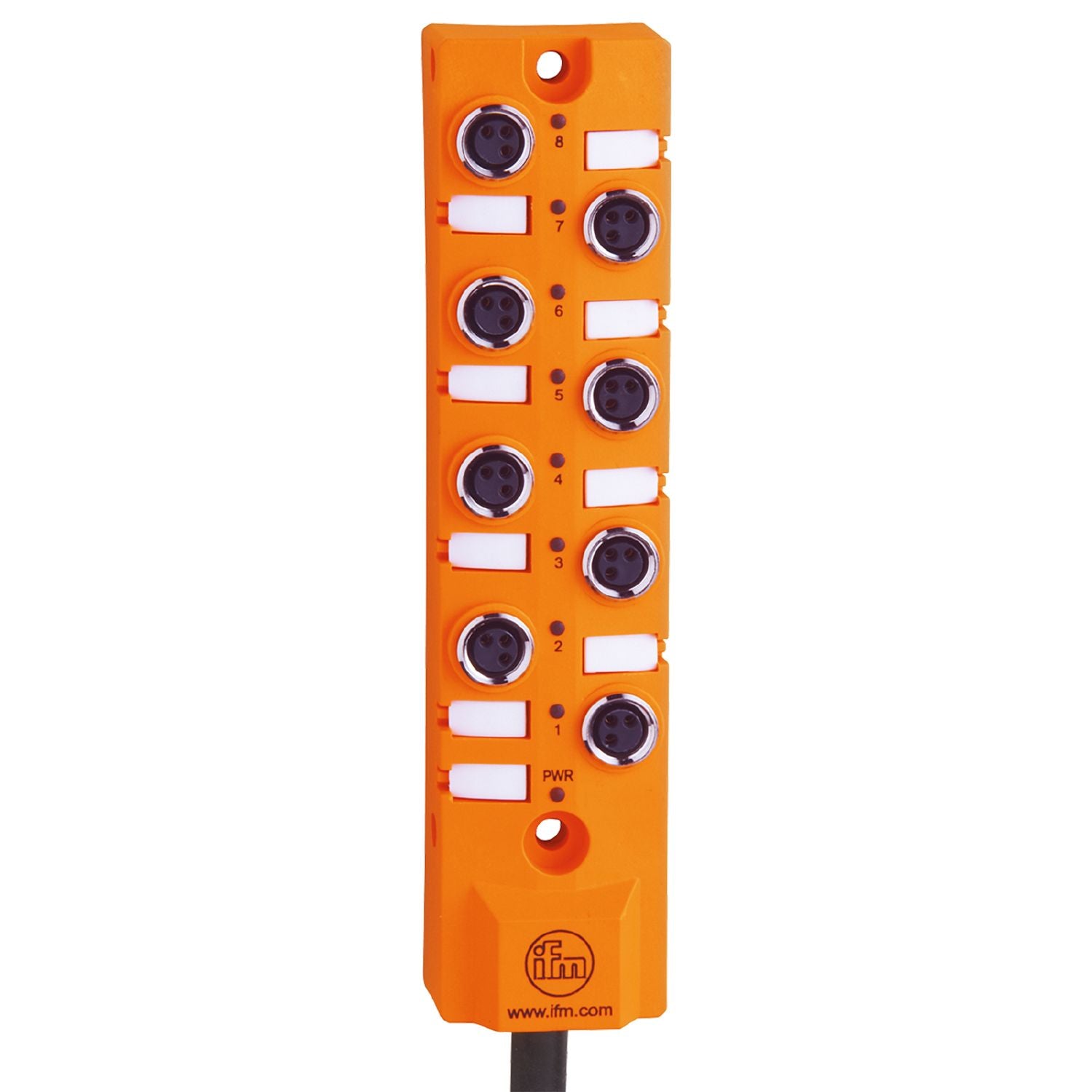

IFM EBC064 - Splitter box ZDO8F039MSJ0005H10

Compact housing for use where space is restricted.
Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools.
Mechanical end stop to protect the O-ring from destruction.
Clearly visible LEDs for indicating switching status and operation

Special feature	Halogen-free; Gold-plated contacts; Drag chain suitability

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Protection class	III
Max. current load per module/slot [A]	2
Max. current load total [A]	6

Outputs

Electrical design	NPN

Operating conditions

Ambient temperature [°C]	-25...80
Ambient temperature (moving) [°C]	-5...60
Protection	IP 65; IP 67; IP 68

Weight [g]	516
Materials	PBT-GF20; brass nickel-plated
Moulded-body material	PBT-GF 20 / brass, nickel-plated
Number of ports splitter box	8
Connector type	M8
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 5 Mio. torsional strain ± 180 °/m

Displays / operating elements

Display	switching status 8 x LED, yellow operation 1 x LED, green

Accessories

Accessories (optional)	DIN rail adapter:, E73007 Protective cap: M8, E73005

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 9.1 mm; 8 x 0.34 mm² (42 x Ø 0.1 mm ) + 2 x 0.75 mm² (96 x Ø 0.1 mm )

Electrical connection - slot

Connection	Connector: 8 x M8; coding: A; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBC064-00 — 05.11.2020 —
