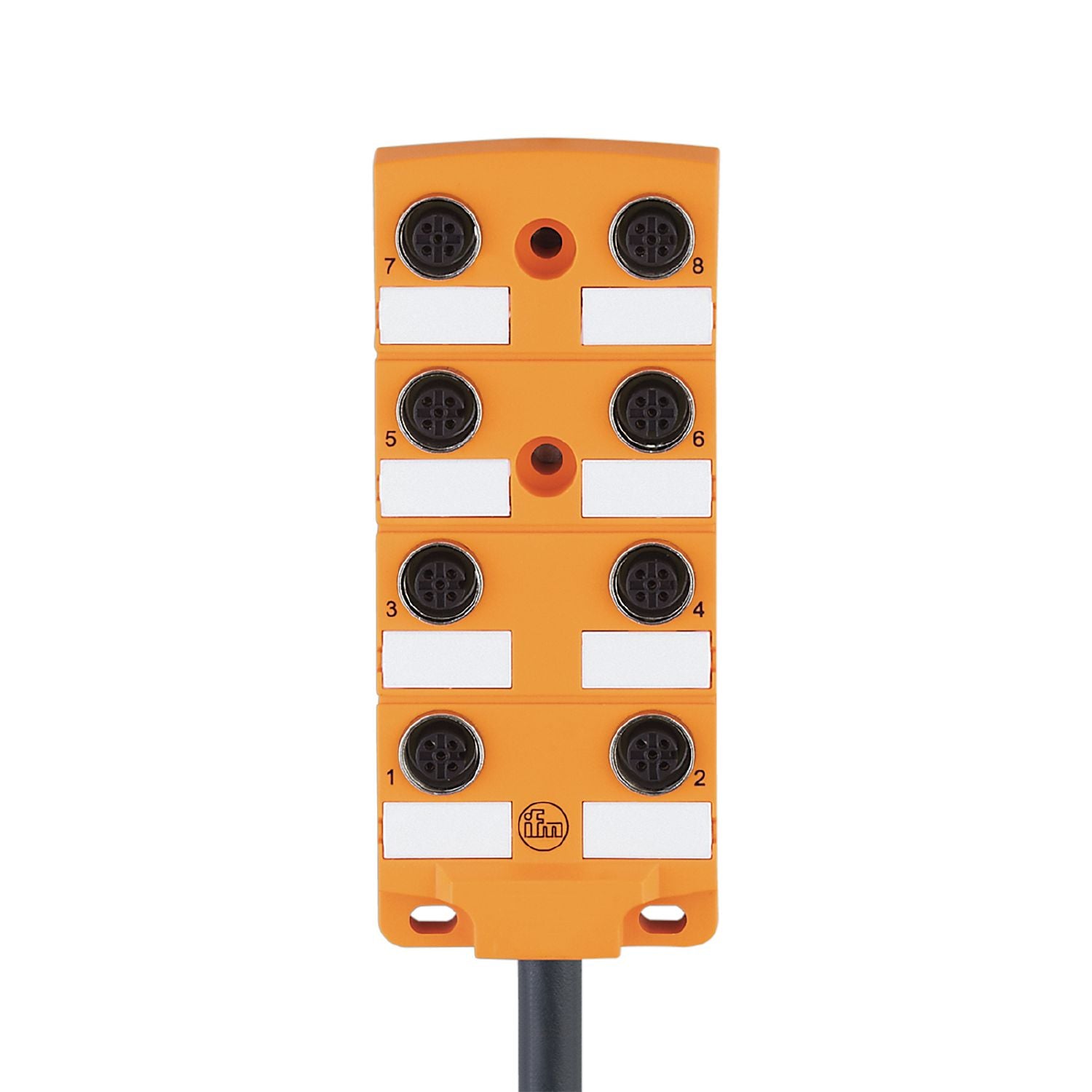

IFM EBT004 - Splitter box ZDO8H050VAS0015E19

Resistant to high-pressure cleaning with aggressive cleaning agents.
Permanent, reliable sealing even when mounted without tools.
Robust housing for use in harsh industrial environments.
High protection rating for the requirements of the food and beverage industry.
Mechanical end stop to protect the O-ring from destruction

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...70
Ambient temperature (moving) [°C]	-5...60
Protection	IP 67; IP 68

Tests / approvals

UL approval	Enclosure type Type 1

Weight [g]	2875
Dimensions [mm]	22 x 54 x 127
Materials	housing: PA
Number of ports splitter box	8
Connector type	M12

Accessories

Items supplied	Protective caps: 2 labels: 8

Pack quantity	1 pcs.

Electrical connection

	Cable: 15 m, PVC, black, Ø 9.7 mm; 16 x 0.34 mm² + 3 x 1.0 mm²

Electrical connection - slot

Connection	Connector: 8 x M12; coding: A; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EBT004-01 — 05.11.2020 —
