For the connection of controllers and dialogue units. For utilising all connections of a controller. Reliable signal transmission for CAN devices. Can be coded and cut to size
Design
for BasicController, utilising all connections to a BasicController, CR04xx
Weight [g]
77.5
Accessories

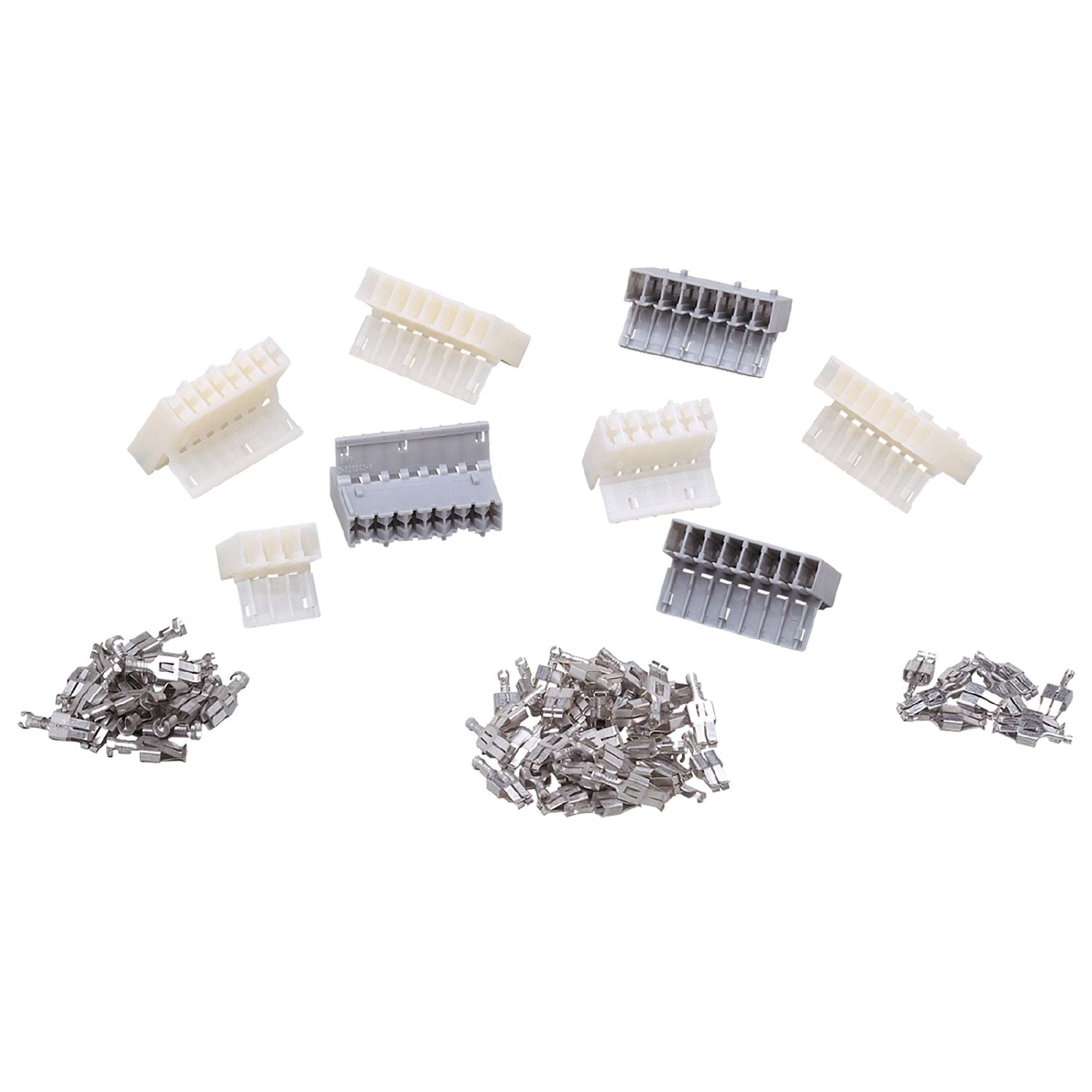

Items supplied
Standard timer contact housing: 3, 8-pole, grey (A/B/C = inputs)
Standard timer contact housing: 3, 8-pole, natural (D/E/F = outputs)
Standard timer contact housing: 1, 6-pole, natural (P/N1 = CAN1 and supply)
Standard timer contact housing: 1, 4-pole, natural (N2 = CAN2)
standard timer contacts: 10 x 0,2...0,5 mm², tin-plated
standard timer contacts: 40 x 0,5...1,0 mm², tin-plated
standard timer contacts: 20 x 1,0...2,5 mm², tin-plated
Pack quantity
1 pcs.
Electrical connection - 10x
Standard timer contact: 0.2...0.5 mm²
Electrical connection - 20x
Standard timer contact: 1.0...2.5 mm²
Electrical connection - 40x
Standard timer contact: 0.5...1.0 mm²
