IFM EC0464 - Standard timer contact housing with contacts BasicHousing + Contact

For the connection of controllers and dialogue units.
For utilising all connections of a controller.
Reliable signal transmission for CAN devices.
Can be coded and cut to size

Design	for BasicController Relay, utilising all connections to a BasicController Relay, CR0431

Weight [g]	70.8

Accessories

Items supplied

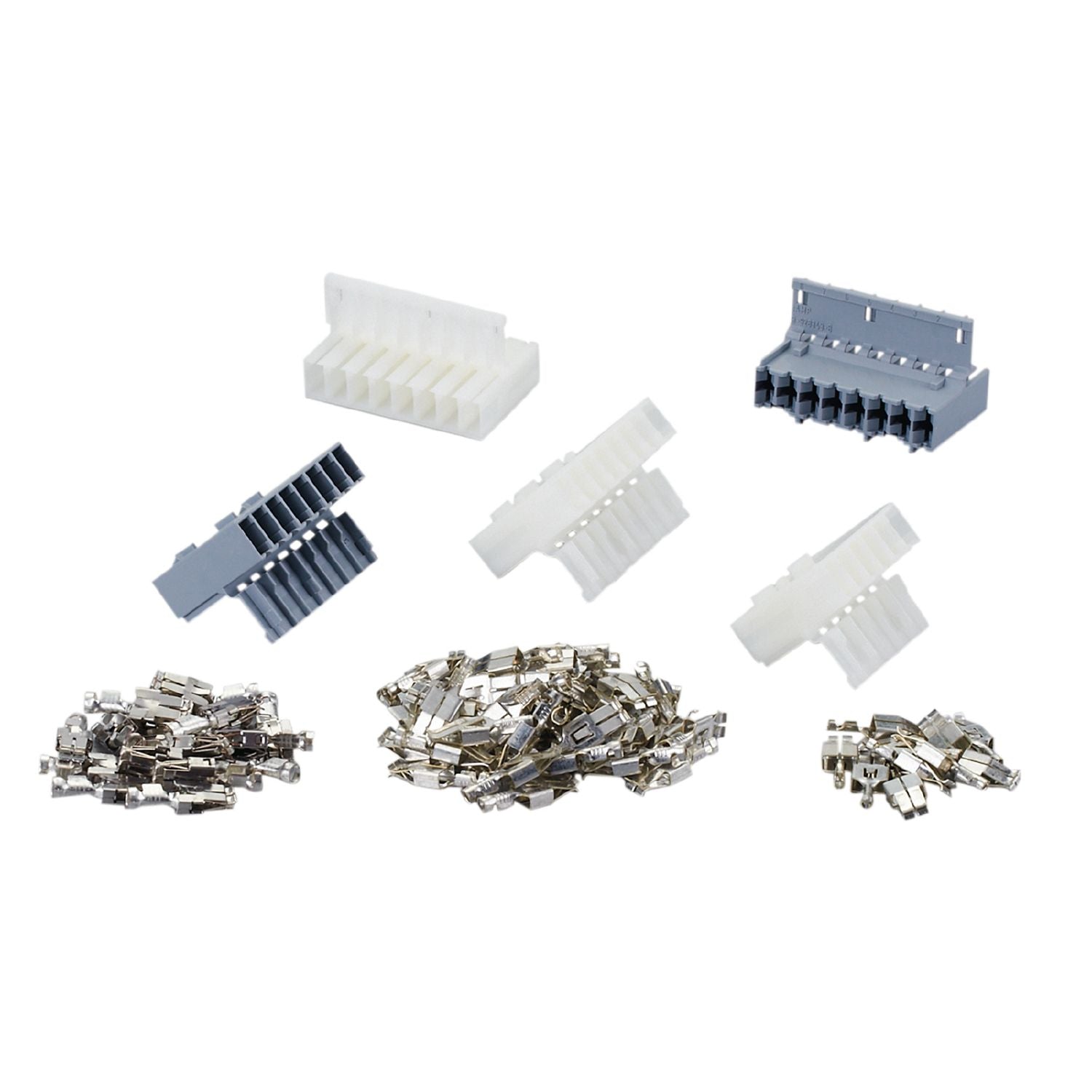

Standard timer contact housing: 2, 8-pole, grey (A/B = inputs) Standard timer contact housing: 2, 8-pole, natural (D/E = outputs) Standard timer contact housing: 1, 6-pole, natural (V_EXT/N1/N2 = supply external units and CAN1/2) standard timer contacts: 10 x 0,2...0,5 mm², tin-plated standard timer contacts: 40 x 0,5...1,0 mm², tin-plated standard power timer contacts: 20 x 1,25...2,5 mm², tin-plated

Pack quantity	1 pcs.

Electrical connection

	terminals:

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC0464-00 — 24.09.2015 —
