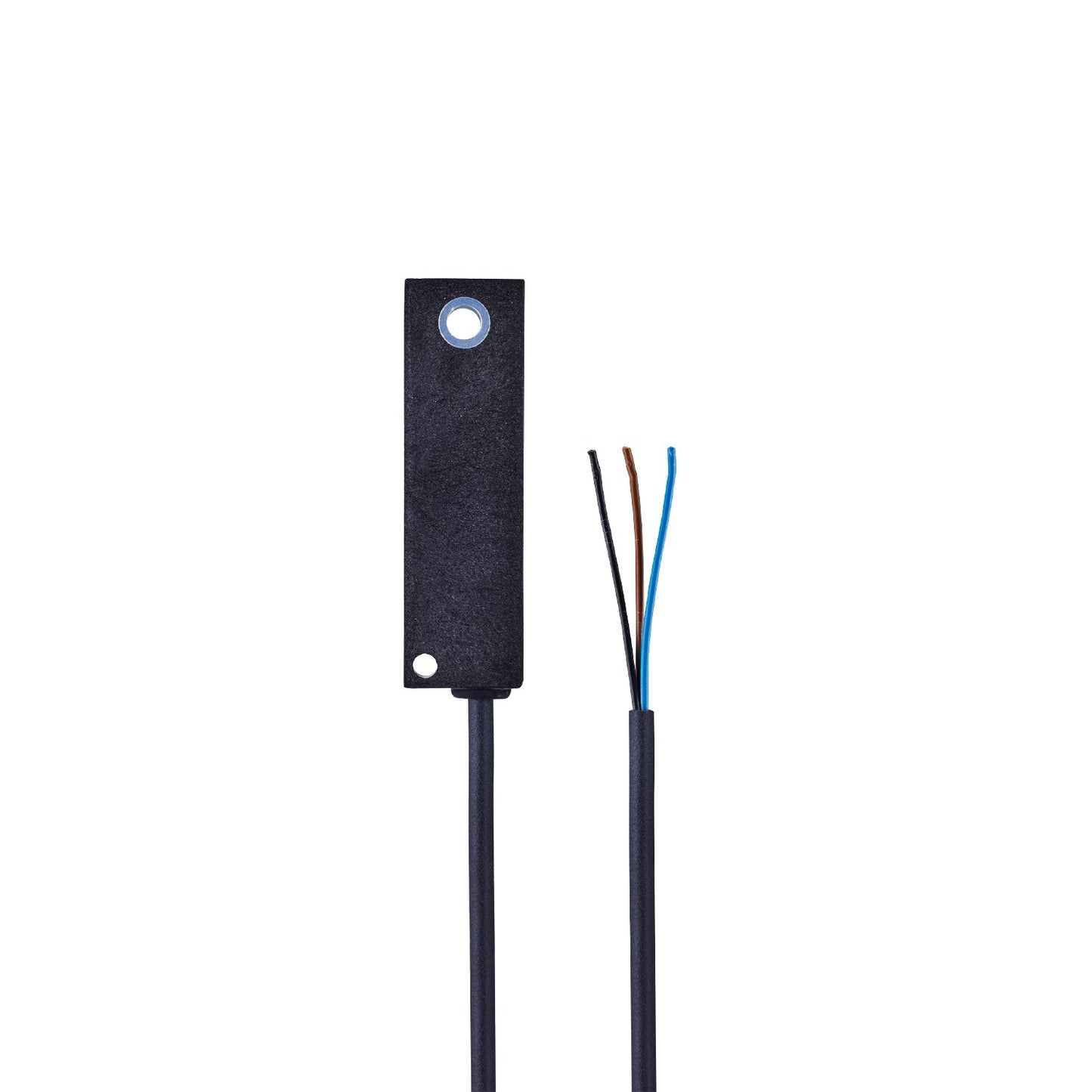

Precise zero point detection. High repeatability. Precise switching output. Compact design
Number of measurement axes
1;(Z)
Angular range [°]
1…-6
Housing
plastic housing
Function principle
static
Operating principle
noble metal with liquid
Operating voltage [V]
8...30 DC
Max. current consumption [mA]
700
Protection class
III
Reverse polarity protection
yes
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1
Outputs
Output signal
switching signal
Number of digital outputs
1
Output function
normally open
Measuring/setting range
Note on setpoint SP
switch point (ON): 0° = horizontal (absolute) installation position
reset point (OFF): -2...-5° (counterclockwise movement of the cable outlet)
hysteresis SP and RP: +/- 1°
Number of measurement axes
1;(Z)
Angular range [°]
1…-6
Accuracy / deviations
Accuracy [°]
0,2
Repeatability [°]
<0,2
Operating conditions
Ambient temperature [°C]
-30...80
Storage temperature [°C]
-30...80
Protection
IP 67
Tests / approvals
MTTF [years]
571
Weight [g]
226.9
Housing
plastic housing
Type of mounting
Metallbuchse Ø 6,3 mm zur Befestigung des Neigungsschalters Loch Ø 4,5 mm zur Fixierung des Neigungsschalters
Dimensions [mm]
75 x 22 x 18
Installation position
horizontal
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 3.1 m, PVC
Diagrams and graphs
Mess- und Montagerichtung
horizontale Einbaulage / Rotation um Z-Achse
