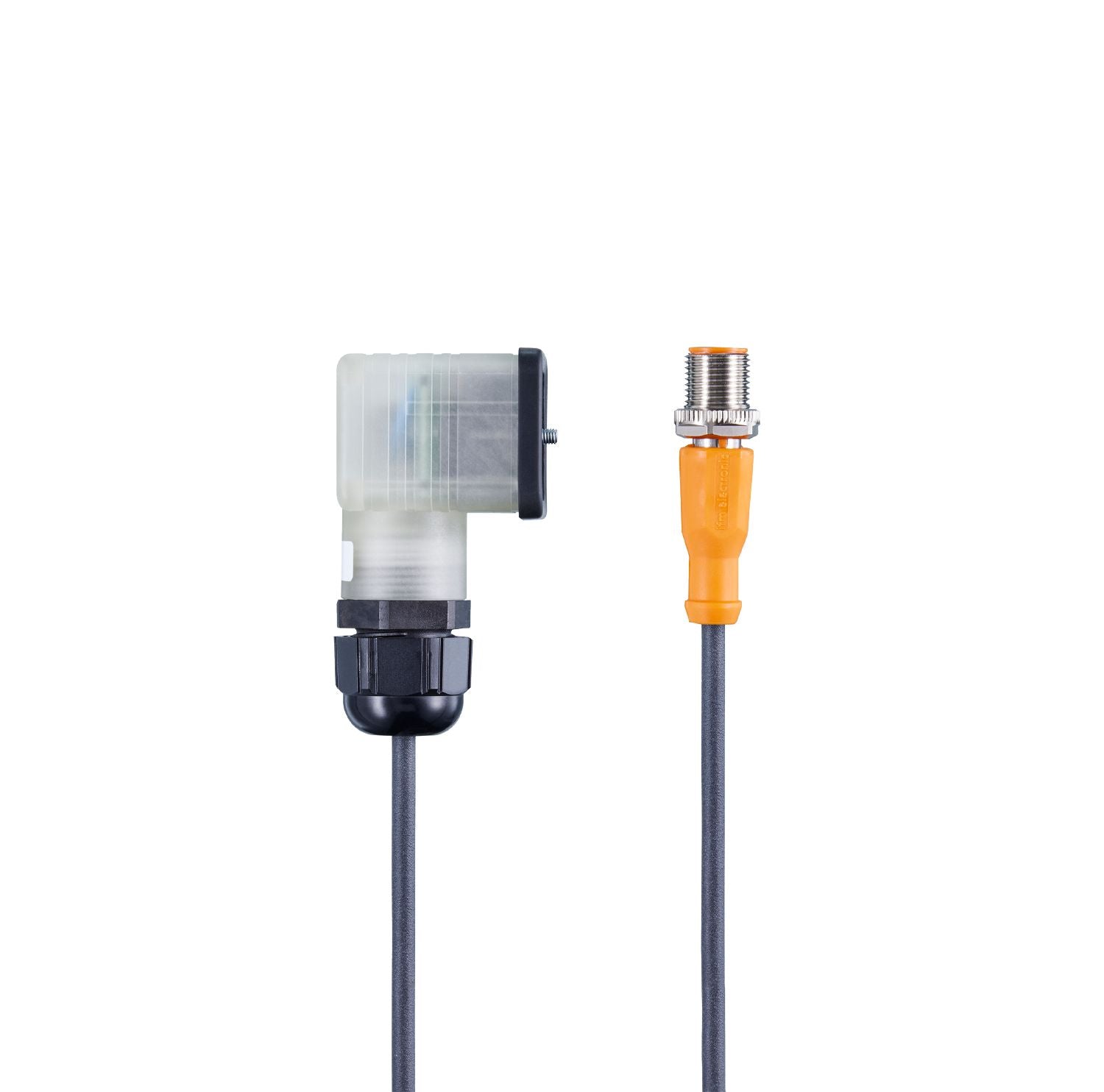

IFM EC2088 - Jumper cable with valve plug R360/DANFOSS PVEH-F/M12

Reliable connection of valves in the field.
Angled type for use where space is restricted.
Wide operating temperature range.
Robust rectangular connector

Special feature	Halogen-free

Operating voltage [V]	< 250 AC/DC
Protection class	II
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...90
Note on ambient temperature	valve plug: -30 ... 90 °C M12 connector: -25 ... 90 °C
Protection	IP 65;(M12 connector: IP65, IP67, IP68, IP69K)

Weight [g]	82
Moulded-body material	PA-GF, Halogen-free / TPU, Halogen-free
Material nut	steel, galvanised / brass, nickel-plated
Sealing material	NBR / CR

Pack quantity	1 pcs.

Electrical connection - socket

	Connector: 1 x valve type A DIN, angled; Moulded body: PA-GF, Halogen-free, black; Locking: steel, galvanised; Sealing: NBR / CR; Contacts: brass; Tightening torque: 0.5...0.6 Nm

Electrical connection -Cable

Connection	Cable: 0.24 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU, Halogen-free, orange; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC2088-01 — 28.07.2023 —
