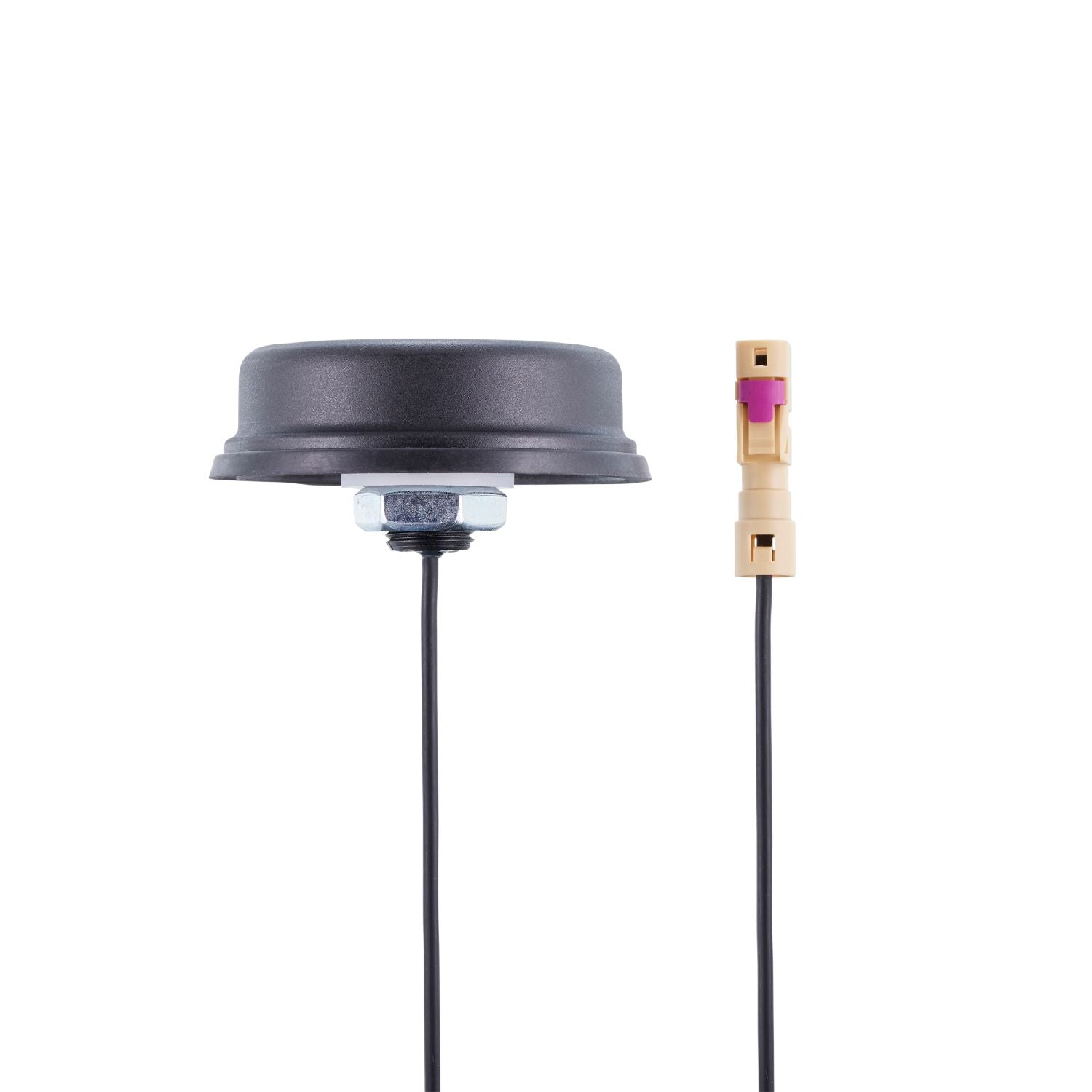

IFM EC3133 - combined antenna for WLAN and Bluetooth WLAN/BLE/FAKRA-I Antenna

For receiving and sending data via WLAN and Bluetooth.
With integrated amplifier.
Robust design for use in mobile machines.
Flat housing for roof mounting on vehicles and mobile machines
Interfaces

Frequency band	2400...2480 MHz (802.11b/g/n); 5150...5852 MHz (802.11a/h/j/n/ac)
Connector type	FAKRA
Note on interfaces	VSWR: < 2,0 Antenna gain (2,4 GHz): + 3 dBi Antenna gain(5,3 GHz): + 1 dBi Power: < 10 W

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 69K

Tests / approvals

Standard	IEC 60068-2-14 Nb; IEC 60068-2-14 Na; IEC 60068-2-3 Db; IEC 60068-2-2; IEC 60068-2-27; ISO 16750-2; EN 45545-2; ECE R 118

Weight [g]	105.85
Type of mounting	screw mounting;(M16 x 1,5)
Dimensions [mm]	Ø 76 / L = 23
Tightening torque [Nm]	5

Remarks

When mounting the antenna(s) in vehicles avoid the vicinity of fuel tanks, vessels with explosives or insufficiently screened electronic components. Do not install antenna inside closed metal construction (e.g. in driver's cabin). Clean the mounting surface before the installation. Do not extend or shorten antenna cable. Avoid direct exposure to steam or high-pressure cleaning during car wash. Radio communication can affect the function of electronic devices that are not correctly shielded. Contact the manufacturer of the corresponding device in case of any interference.

Pack quantity

1 pcs.

Electrical connection - WLAN / Bluetooth

	Cable: 2 m
	Connector:FAKRA I

Diagrams and graphs

Funkdiagramm	measured with a 0.6 m cable on a base area of 300 mm x 300 mm

Funkdiagramm	measured with a 0.6 m cable on a base area of 300 mm x 300 mm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC3133-00 — 27.04.2023 —
