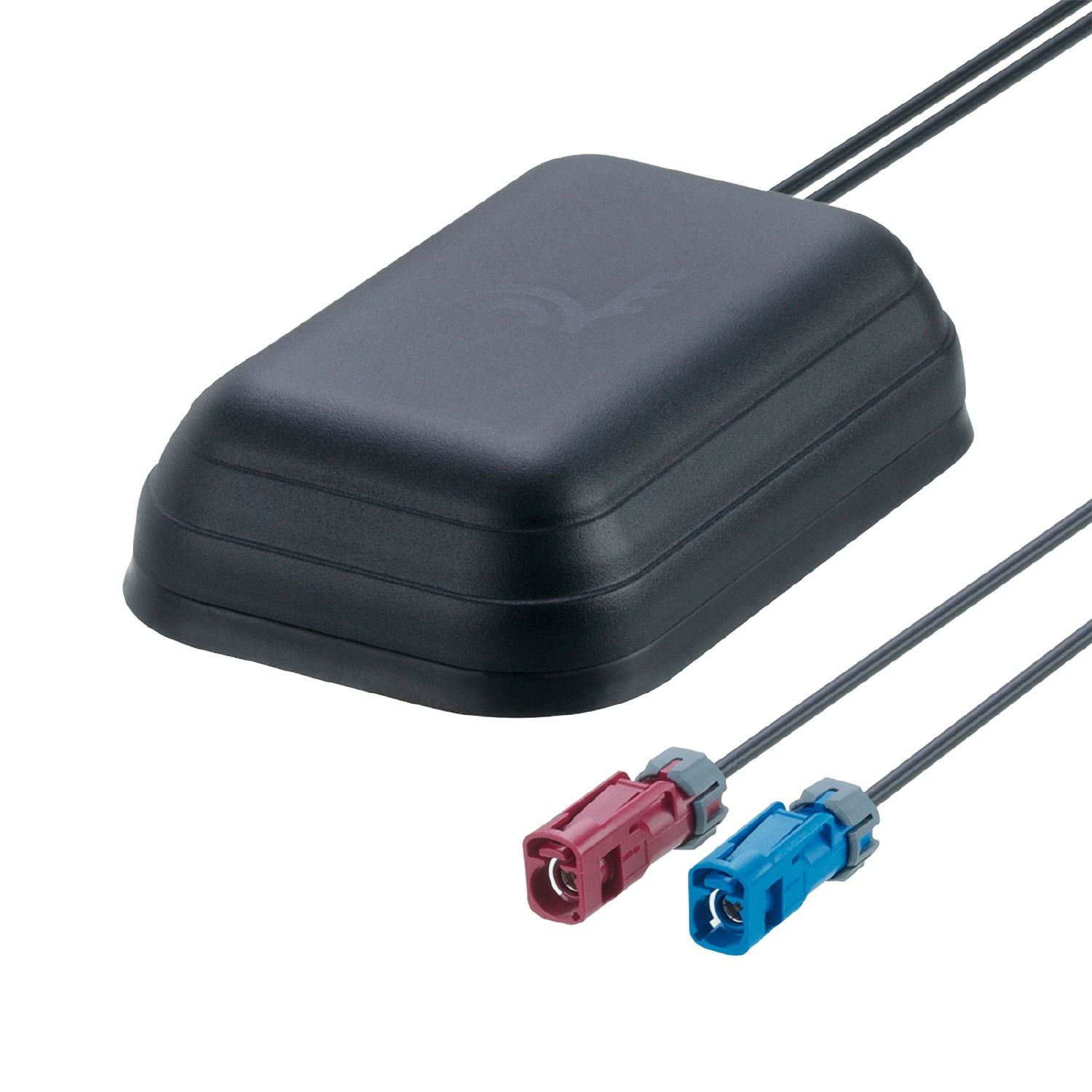

IFM EC3158 - Combined antenna for navigation and radio LTE/GNSS/FAKRA-Antenna

Current consumption [mA]	< 24

Interfaces

Frequency band	GPS: 1563...1587 MHz (L1); Galileo: 1559...1591 MHz (E1); Beidou: 1559...1591 MHz (B1C); GLONASS: 1593...1610 MHz (G1)
Note on interfaces	Operating voltage: 3...5,5 V DC Impedance: 50 Ohm Polarisation: RHCP vertical LNA: 27 ± 1 dB Rauschzahl: 2.2 dB

Frequency band	698 ...960 MHz; 710...2170 MHz; 2300...2690 MHz
Note on interfaces	Impedance: 50 Ohm Polarisation: linear vertical

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 6K6

Weight [g]	366
Type of mounting	Gewinde
Dimensions [mm]	80 x 124 x 31
Materials	PC black
Tightening torque [Nm]	< 5

Pack quantity	1 pcs.

Electrical connection - GPS

	Cable: 3 m
	Connector: 1 x FAKRA

Electrical connection - GSM

	Cable: 3 m
	Connector: 1 x FAKRA
