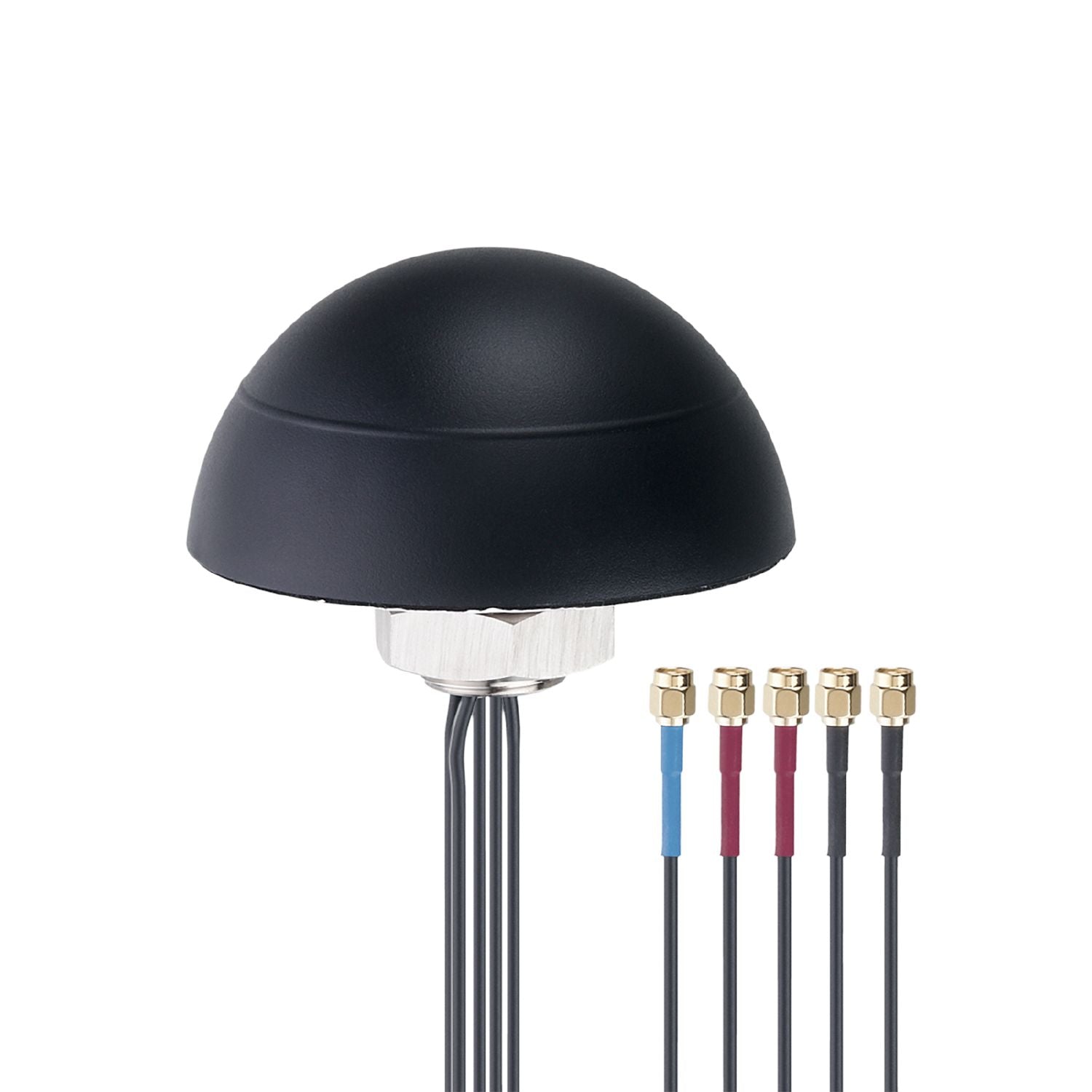

IFM EC3170 - Combined antenna for navigation and radio Mobile/GNSS/WIFI Antenna

Interfaces

Frequency band	1575,42...1610 MHz
Connector type	SMA
Note on interfaces	Operating voltage: 3...5 V DC Current consumption: < 15 mA Impedance: 50 Ohm Polarisation: RHCP LNA: 28 ± 2 dB LNA V.S.W.R.: < 2,0 noise density: < 1,5 dB

Transmission standard	LTE Cat-4
Frequency band	LTE: 698...960 MHz; 1710...2690 MHz
Connector type	SMA
Note on interfaces	Impedance: 50 Ohm Polarisation: linear vertical

Frequency band	2400...2483,5 MHz; 4900...5825 MHz
Connector type	SMA
Note on interfaces	Impedance: 50 Ohm Polarisation: linear noise density: 2 dBi

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67

Weight [g]	597.5
Type of mounting	screw mounting
Dimensions [mm]	Ø 110 / L = 55
Materials	ABS

Pack quantity	1 pcs.

Electrical connection - GPS

	Cable: 3 m
	Connector: 1 x SMA

Electrical connection - Mobile networks

	Cable: 3 m
	Connector: 2 x SMA

Electrical connection - WLAN

	Cable: 3 m
	Connector: 2 x SMA

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC3170-00 — 03.03.2022 —
