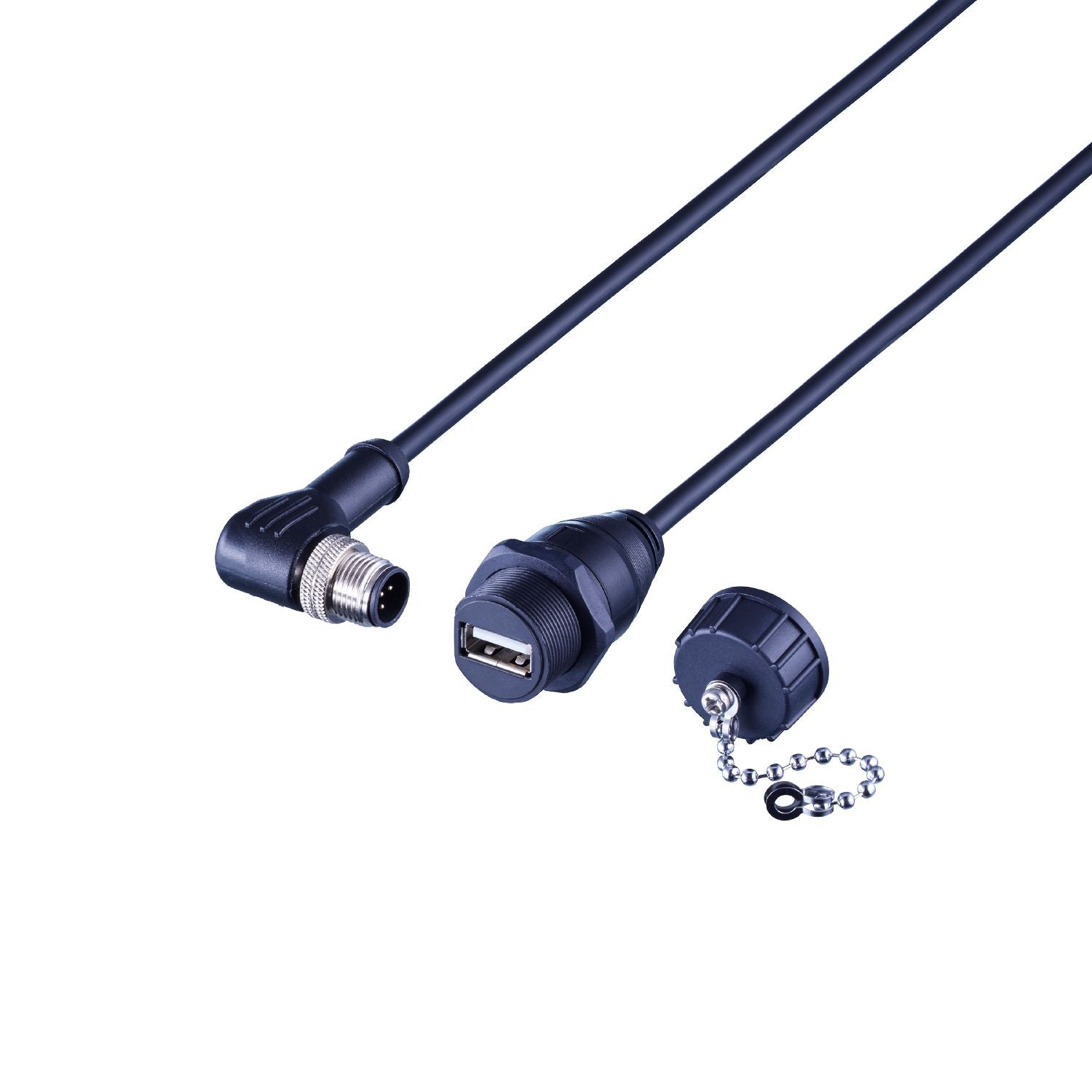

IFM EC9125 - USB connection cable R360/Cable/PDM_NG-USB/angled

Reliable connection of displays and dialogue modules.
With USB socket for installation in control panel or dashboard.
For use in mobile machines and vehicles.
Protective cap for USB socket with high protection rating.
Suited for control cabinet installation in industrial applications

Special feature	Screened cable
Design	for process and dialogue modules PDM360 NG
Application	USB socket for installation in control panel or dashboard

Operating conditions

Protection	IP 67

Weight [g]	97.8

Accessories

Items supplied	Protective cap: IP 67, for USB socket

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, angled; coding: B

Electrical connection

Connection	Cable: 1.5 m, PVC, black, Ø 5 mm, shielded; twisted; 5 x 0.25 mm² / AWG 24

Electrical connection - socket

	Connector: 1 x USB, straight

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EC9125-00 — 01.09.2023 —
