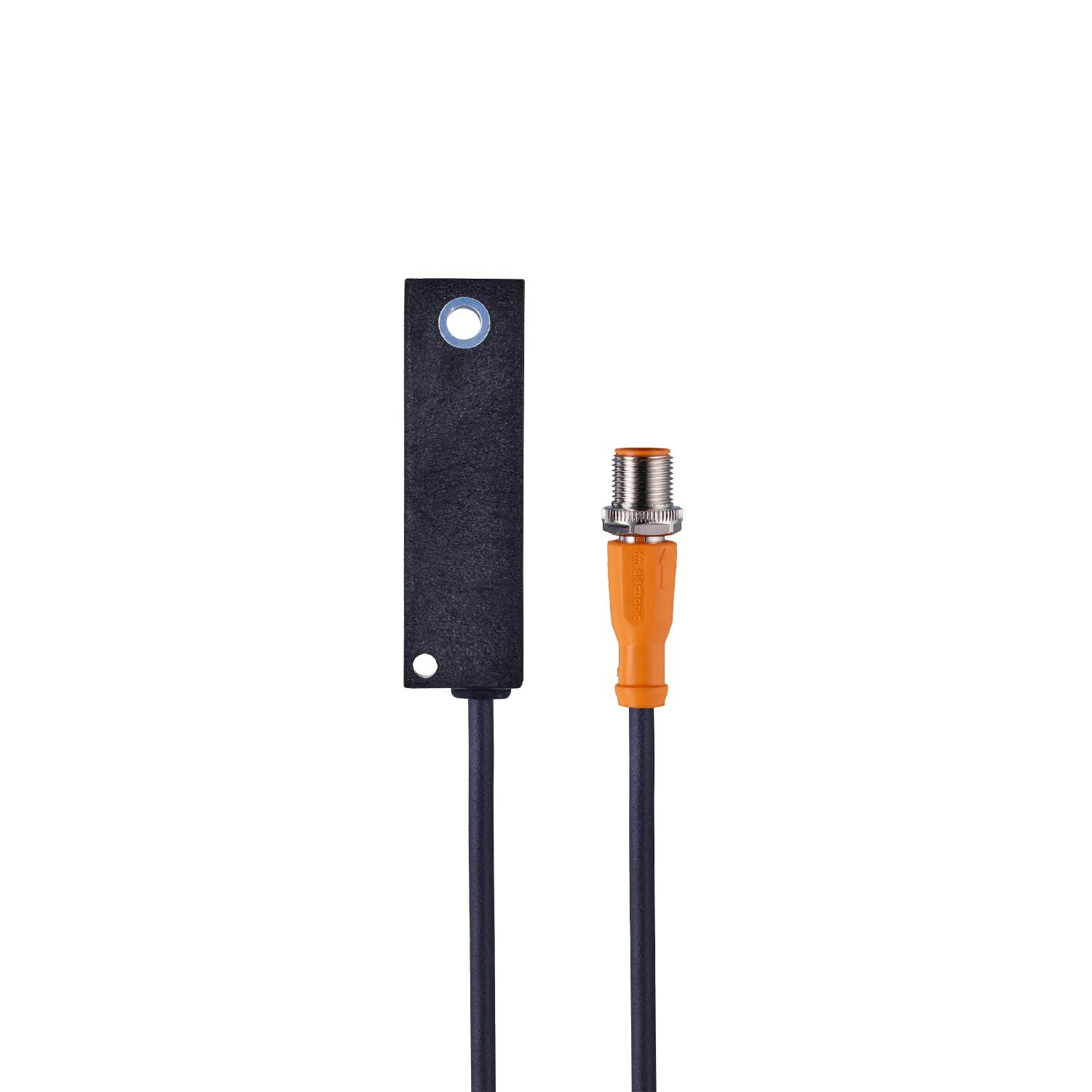

IFM EC9203 - tilt switch R360/CUSTOMER-SPECIFIC-UNIT

Precise zero point detection.
High repeatability.
Precise switching output.
Compact design

Number of measurement axes	1;(Z)
Angular range [°]	1…-6
Housing	plastic housing

Function principle	static
Operating principle	noble metal with liquid

Operating voltage [V]	8...30 DC
Max. current consumption [mA]	700
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Outputs

Output signal	switching signal
Number of digital outputs	1
Output function	normally open

Measuring/setting range

Note on setpoint SP	switch point (ON): 0° = horizontal (absolute) installation position reset point (OFF): -2...-5° (counterclockwise movement of the cable outlet) hysteresis SP and RP: +/- 1°
Number of measurement axes	1;(Z)
Angular range [°]	1…-6

Accuracy / deviations

Accuracy [°]	0,2
Repeatability [°]	<0,2

Operating conditions

Ambient temperature [°C]	-30...80
Storage temperature [°C]	-30...80
Protection	IP 67

Tests / approvals

MTTF [years]	571

Weight [g]	68.3
Housing	plastic housing
Type of mounting	Metallbuchse Ø 6,3 mm zur Befestigung des Neigungsschalters Loch Ø 4,5 mm zur Fixierung des Neigungsschalters
Dimensions [mm]	75 x 22 x 18
Installation position	horizontal

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.25 m, PUR; 4 x 0.34 mm²

Electrical connection - plug

Connection	Connector:M12x1; coding: A; Tightening torque: 0.6...1.5 Nm

Diagrams and graphs

Mess- und Montagerichtung	horizontale Einbaulage / Rotation um Z-Achse
