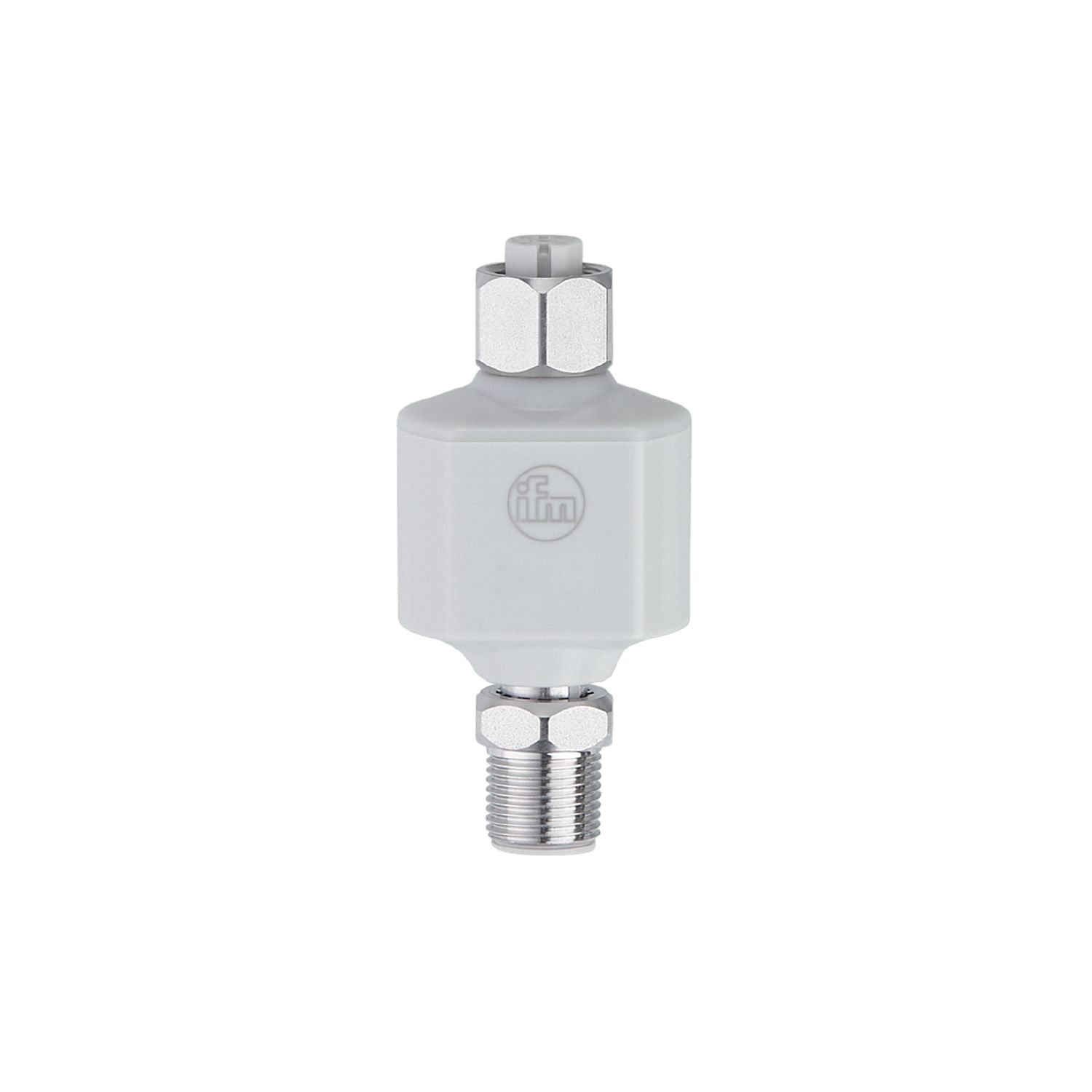

IFM EIO104 - IO-Link master / converter - 4...20 mA IO-LINK/4-20mA MASTERCONVERTER

Easy set-up possible without any parameter setting.
Compact design with high protection rating in hygienic applications.
Parameter setting via IO-Link.
Can only be used in combination with ifm products

Number of inputs and outputs	Number of analogue outputs: 2

Design	integrated IO-Link master

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	< 30
Max. current load total [A]	0.83

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 2

Outputs

Number of analogue outputs	2
Analogue current output [mA]	4...20
Max. load [Ω]	500
Precision analogue output [%]	0,25

Interfaces

Communication interface	IO-Link
Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	1

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...70
Max. relative air humidity [%]	90;(linearly decreasing to 50 % (40 °C) non condensing)
Protection	IP 67; IP 69K

Tests / approvals

MTTF [years]	254
UL approval	Enclosure type Type 1 power supply Low Voltage / Limited Energy File number UL E205959

Weight [g]	91.45
Materials	PA; stainless steel (1.4404 / 316L); FKM

Displays / operating elements

Display	status 1 x LED, red operation 1 x LED, green

Remarks	For further information please see the operating instructions.
Notes	This converter only works in combination with appropriately specified ifm sensors (see device catalogue under "Downloads")
Pack quantity	1 pcs.
