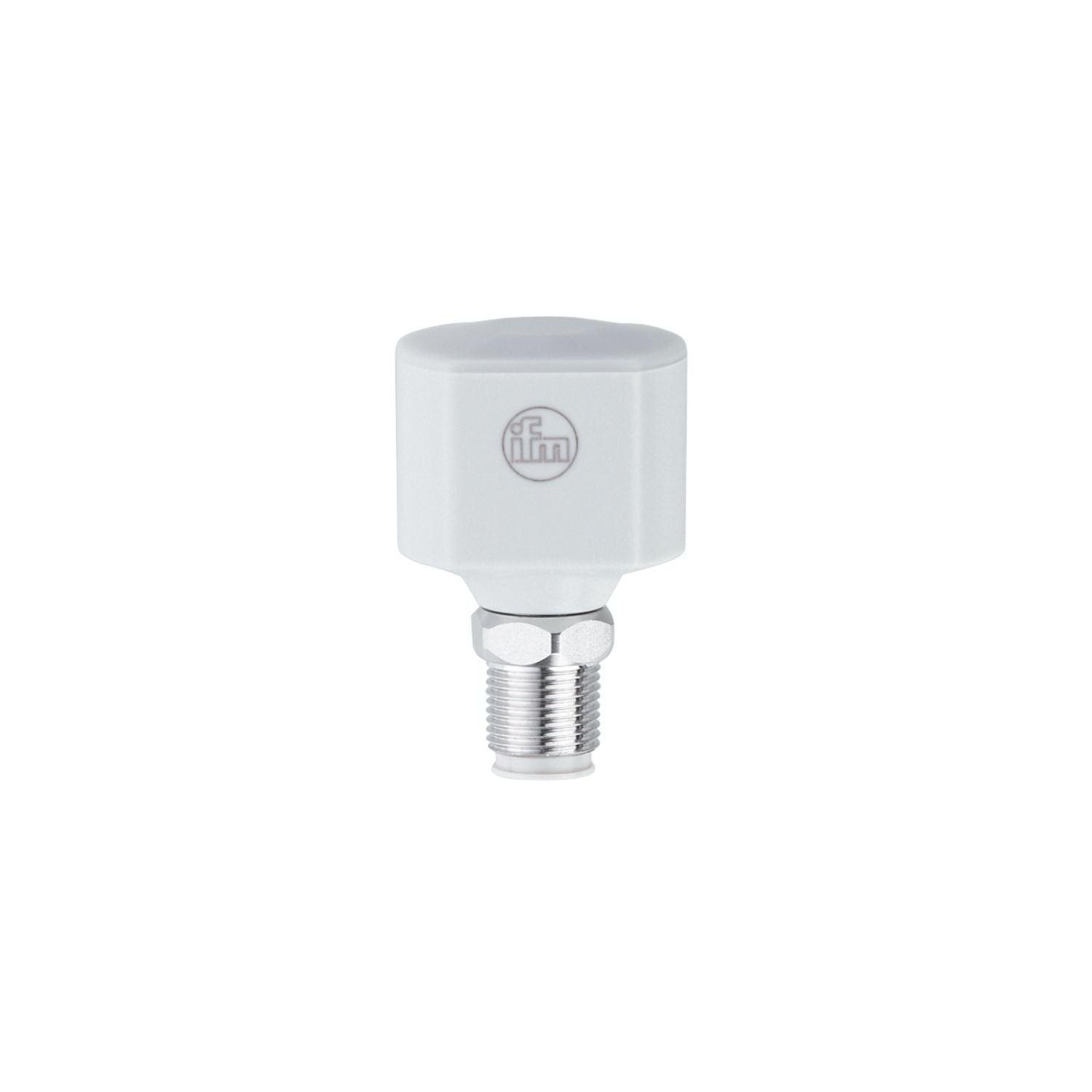

IFM EIO330 - IO-Link Bluetooth adapter IO-LINK BLUETOOTH ADAPTER MULTI RW

Reading and writing of data at the connected IO-Link device via Bluetooth.
Easy access to sensors via smartphone app ifm moneo blue.
Transmission and recording of the process values of all IO-Link sensors connected to the master.
Transmission of master information.
ifm moneo blue free of charge for iOS and Android

Special feature	Gold-plated contacts
Application	display of all process values of the sensors connected to the same master; device setup and diagnosis; parameter setting and analysis of units; Nur funktionsfähig mit ifm IO-Link Master ab Firmware 2.1
Radio approval for	EU/RED; Australia; USA; New Zealand; Canada; Japan; Brazil; China; South Africa; Argentina; Singapore; Mexico; Malaysia; Vietnam; Chile; Thailand; Taiwan; South Korea; India; Namibia; Indonesia
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	18...30 DC
Nominal voltage DC [V]	24
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	for IO-Link communication < 0,3; Bluetooth < 1

Power-on delay time [s]	< 0.3

Software / programming

Parameter setting options	process value recording

Interfaces

Communication interface	IO-Link; Bluetooth
Supported DeviceIDs	Type of operation DeviceID IO-Link Device 1313

Transmission standard	BLE 4.0; BLE 4.1; BLE 4.2; EDR 2.0; EDR 2.1
Frequency band	2,4 - 2,482 GHz
Transmission power [mW]	10;(10 dBm)
Range	typ.20 m

Transmission type	COM3 (230,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Identification (0x8000); Diagnosis (0x8003); Extended Identification (0x8100)
Required master port type	A
Min. process cycle time [ms]	2.3

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...70
Protection	IP 67; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3 in a closed metal tank
Shock resistance	DIN EN 60068-2-27 15 g (6 ms)
Vibration resistance	DIN EN 60068-2-6 2 g (10...150 Hz)
MTTF [years]	281
UL approval	Enclosure type Type 1 power supply Low Voltage / Limited Energy File number UL E205959

Weight [g]	94
Materials	stainless steel (1.4404 / 316L); PA; Sealing: FKM;

Displays / operating elements

Display	operation Bluetooth failure 1 x LED, three-colour

Remarks
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
