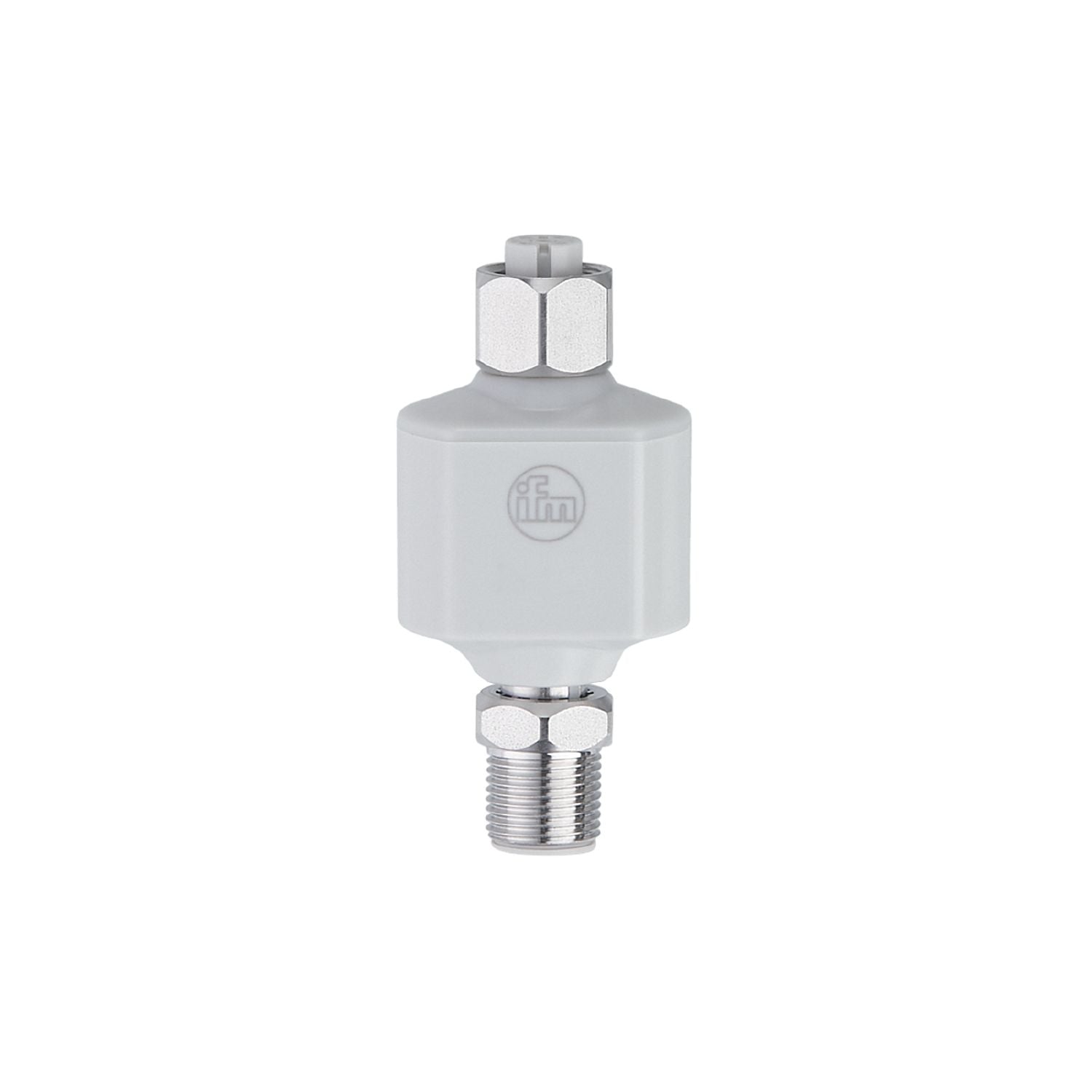

IFM EIO344 - Bluetooth mesh IO-Link adapter BLUETOOTH MESH IO-LINK ADAPTER

Reading and writing of data at the connected IO-Link device via Bluetooth.
Easy access to sensors via ifm moneo blue or moneo configure.
ifm moneo blue free of charge for iOS and Android

Number of inputs and outputs	Number of digital outputs: 1

Special feature	Gold-plated contacts
Radio approval for	EU/RED; United Kingdom; USA; Canada; Japan; Namibia; Singapore; Australia; India; Vietnam; New Zealand; Indonesia; Malaysia; Thailand; Ukraine; Israel; Taiwan; Argentina; Chile; South Korea; South Africa; Mexico
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	18...30 DC;(limitation due to ES1 and PS2)
Nominal voltage DC [V]	24
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes;(supply side)
Max. current load total [A]	0.83

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1

Outputs

Output signal	switching signal; IO-Link
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Type of short-circuit protection	pulsed
Short-circuit proof	yes
Overload protection	yes

Interfaces

Communication interface	IO-Link; Bluetooth
Supported DeviceIDs	Type of operation DeviceID IO-Link Device 1591

Transmission standard	BLE 5.0
Frequency band	2,4GHZ
Transmission power [mW]	10;(10 dBm)
Range	typ. 20 m

Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.0; 1.1
SDCI standard	IEC 61131-9
Required master port type	A

Number of ports	1
Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...70
Protection	IP 67; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 15 g (6 ms)
Vibration resistance	DIN EN 60068-2-6 2 g (10...150 Hz)

Weight [g]	92.2
Materials	PA; stainless steel (1.4404 / 316L); FKM

Displays / operating elements

Display	operation LED, green warning/ fault LED, red Bluetooth LED, blue

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A; Contacts: gold-plated

Electrical connection - socket

	Connector: 1 x M12; coding: A; Contacts: gold-plated
