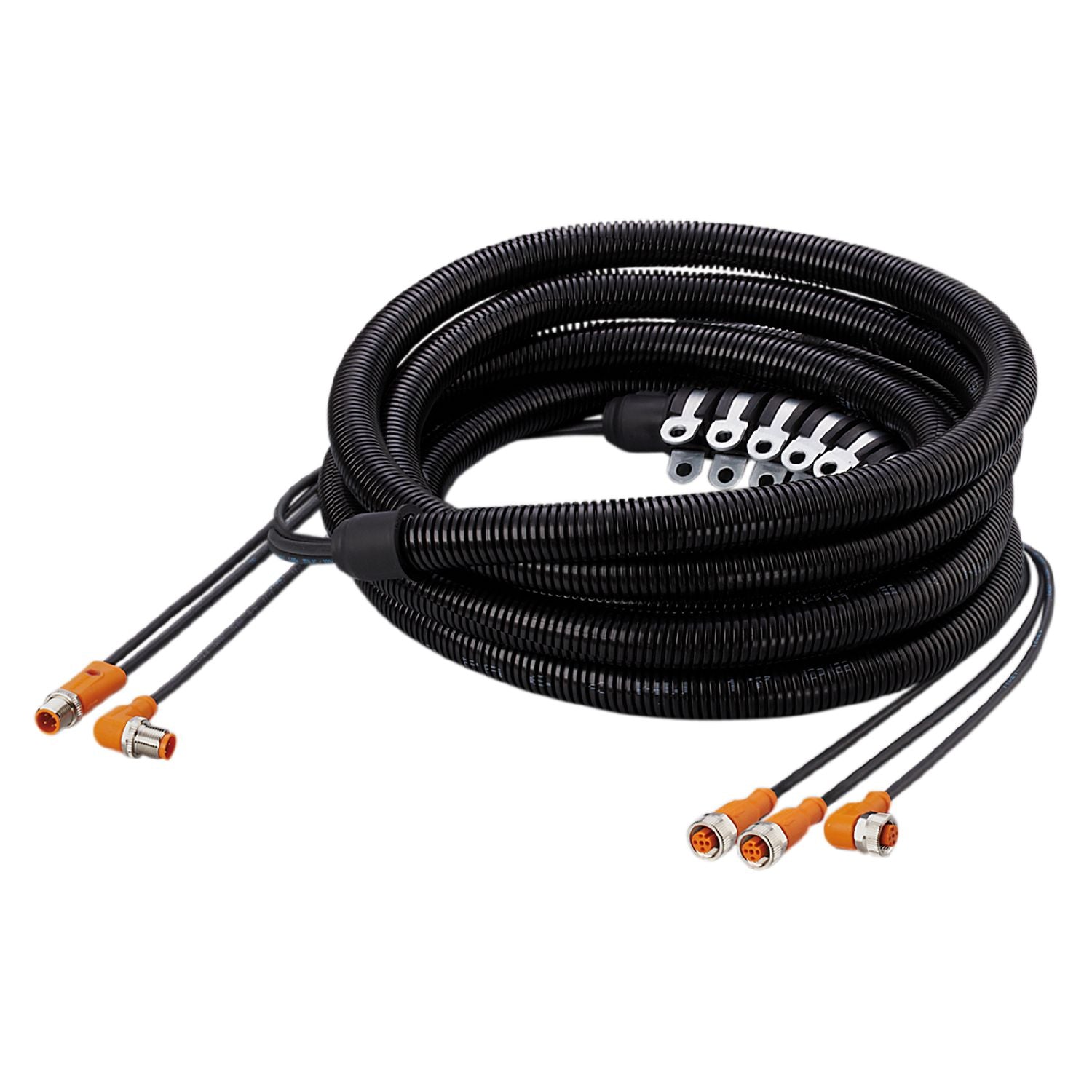

IFM EVC507 - Y connection cable Multicable 1 x Y-Jumper M12

Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Vibration and shock resistant thanks to coupling ring with locking mechanism.
Wide operating temperature range

Special feature	Halogen-free

Operating voltage [V]	< 250 AC / < 300 DC
Protection class	II
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-20...90
Ambient temperature (moving) [°C]	-20...90
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Weight [g]	867
Moulded-body material	TPU
Sealing material	FKM

Notes	Please see the technical note under "Downloads"
Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

Diagrams and graphs

	Derating Imax * 0.8 DIN EN 60512-5-2 X Ambient temperature [°C] Y Current [A]
