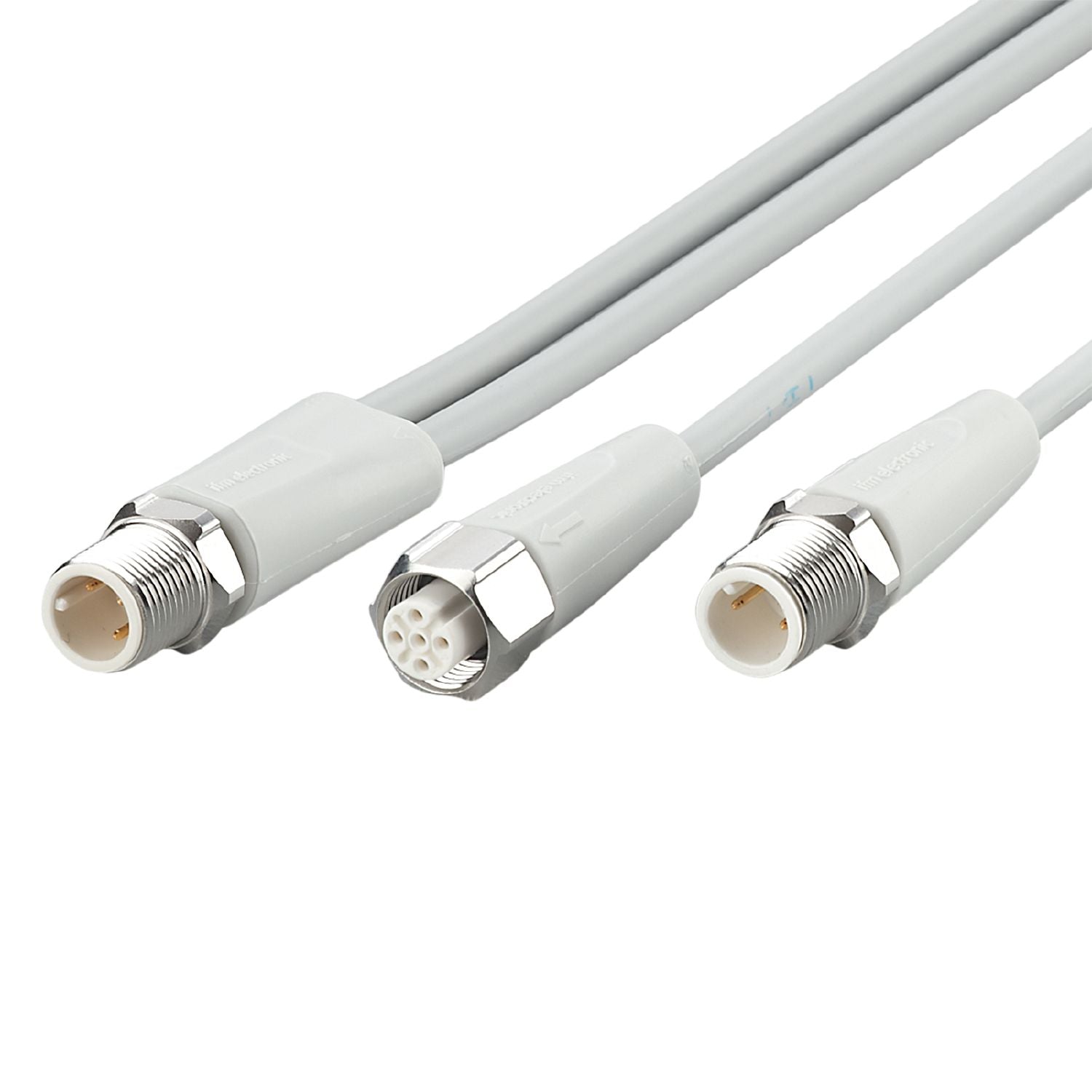

For use in hygienic and wet areas in the food industry. Permanent, reliable sealing even when mounted without tools. Cable sheath made of halogen-free and flame-retardant material. Vibration and shock resistant thanks to coupling ring with locking mechanism. Large operating temperature range and high protection rating
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application
hygienic and wet areas in the food industry
Free from silicone
yes
Operating voltage [V]
< 24 DC
Protection class
III
Max. current load total [A]
4
Operating conditions
Ambient temperature [°C]
-25...100
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
159
Moulded-body material
PP
Material nut
stainless steel (1.4404 / 316L)
Sealing material
EPDM
Number of ports splitter box
2
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 5 Mio.
torsional strain
± 180 °/m
Pack quantity
1 pcs.
Electrical connection
Cable: 2 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 2 x 0.34 mm² (42 x Ø 0.1 mm ) + 5 x 0.34 mm² (42 x Ø 0.1 mm )
