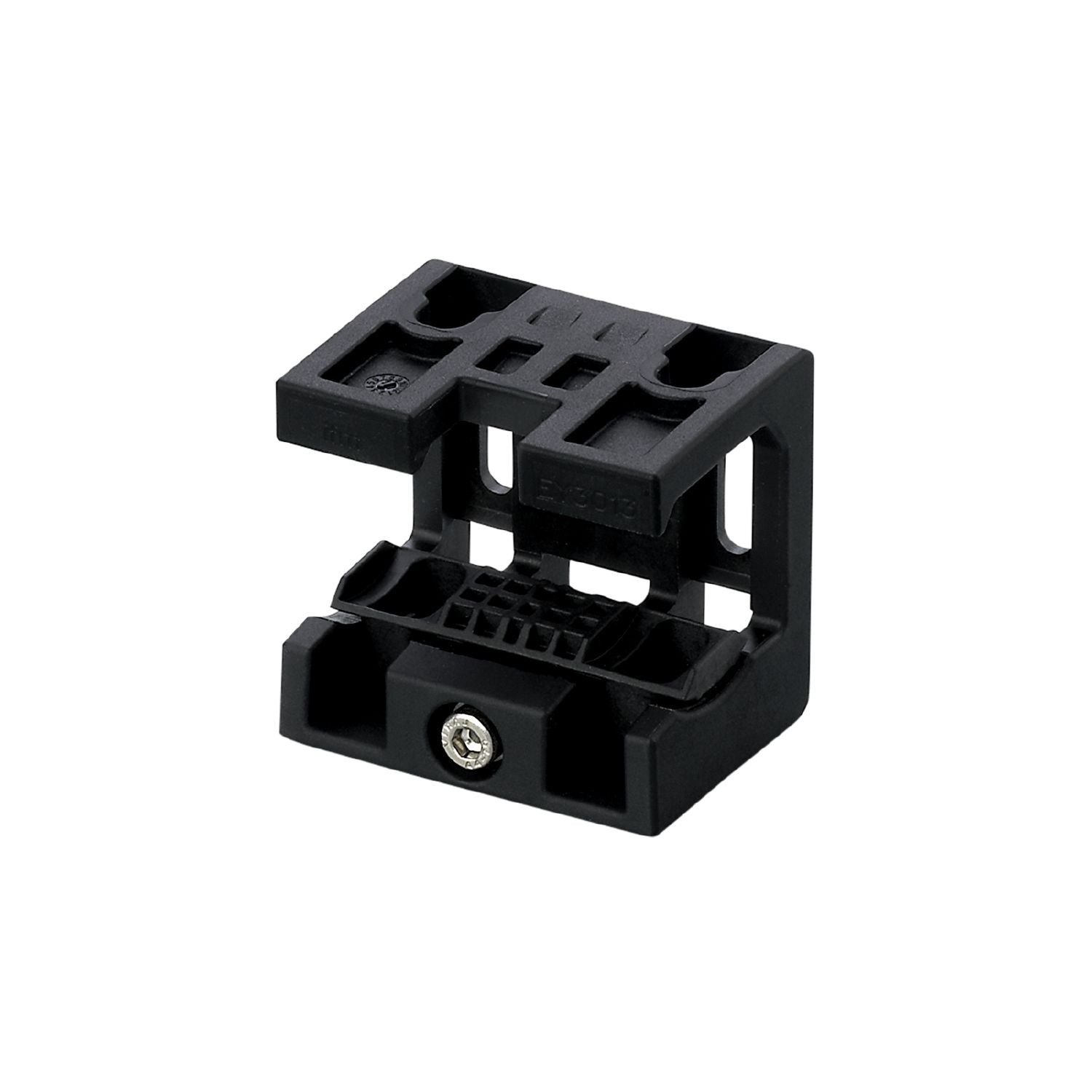

IFM EY3013 - Adjustable angle bracket for safety light grids CLAMPING BRACKET/W LOGO

For the reliable installation of safety light grids and safety light curtains.
Easy and fast installation and adjustment.
Robust design for use in harsh industrial environments

Weight [g]	286
Dimensions [mm]	55 x 57.9 x 43.5
Materials	PA 6.6 glass fibre reinforced
Tightening torque [Nm]	2.5
Alignment range	fine adjustment in 1 axis ± 6°

Remarks	removal by loosening the screw and then pushing it
Pack quantity	4 pcs.
