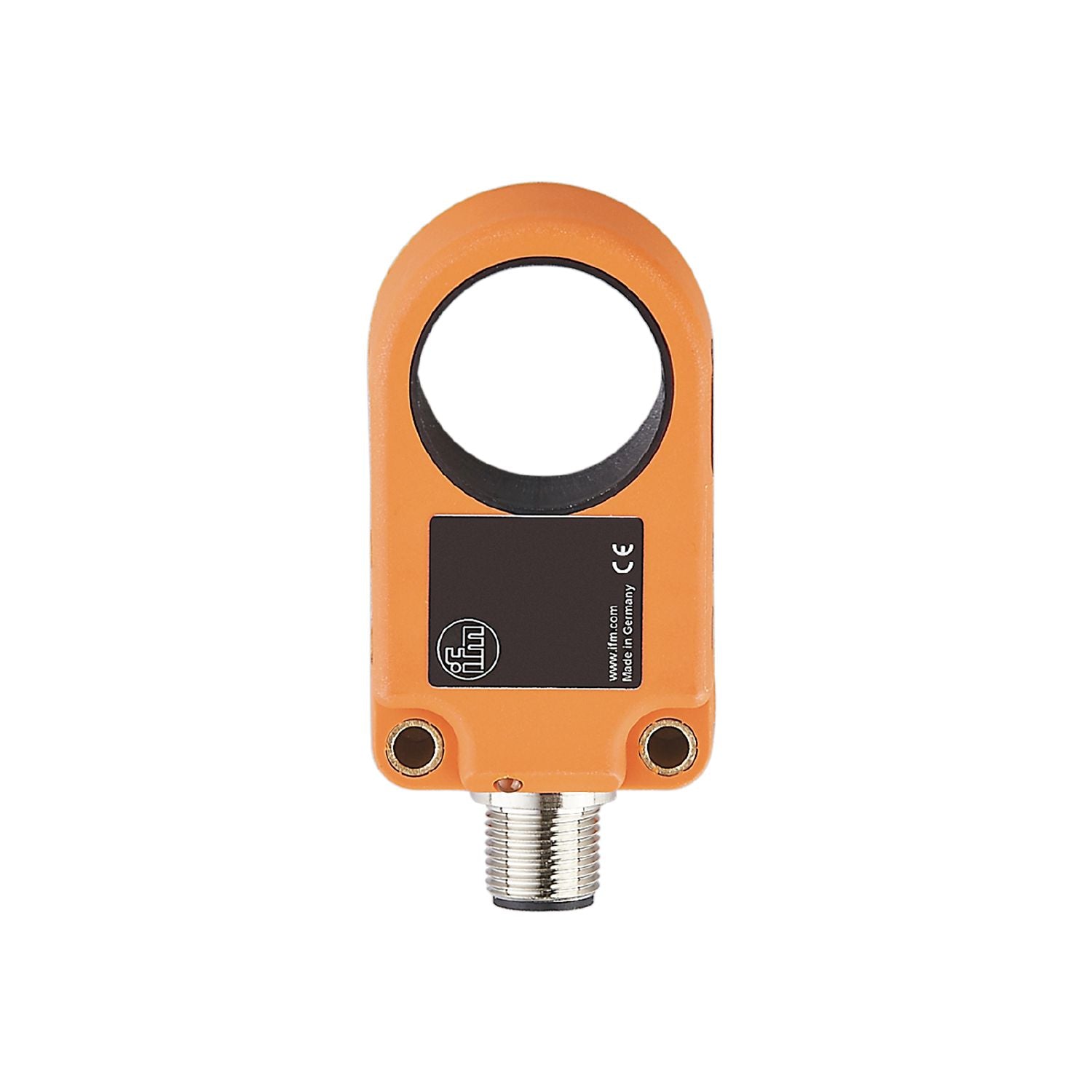

IFM I7R215 - Inductive ring sensor I7R3025-FPKG/DY/US-100-IPF

High resolution.
Short response times.
Insensitive to dirt.
Dynamic principle of operation.
High protection rating

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Housing	circular
Dimensions [mm]	60 x 35 x 20

Operating principle	dynamic

Operating voltage [V]	10...35 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Resolution of steel ball (diameter) [mm]	1.2
Max. part speed [m/s]	35

Response times

Pulse stretching [ms]	0.1...150
Pulse stretching adjustable	yes
Max. fall time [ms]	0.2
Response time [ms]	< 0.2

Operating conditions

Ambient temperature [°C]	-25...70
Max. relative air humidity [%]	50;(Ambient temperature 70 °C)
Protection	IP 67

Tests / approvals

MTTF [years]	556
UL approval	Ta -25...70 °C Enclosure type Type 4X (indoor use only) / 12 and 13 power supply Class 2 File number UL E174191

Weight [g]	52.7
Housing	circular
Dimensions [mm]	60 x 35 x 20
Inside diameter [mm]	25.1
Materials	housing: PA; ring: POM

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — I7R215-01 — 02.02.2023 —
