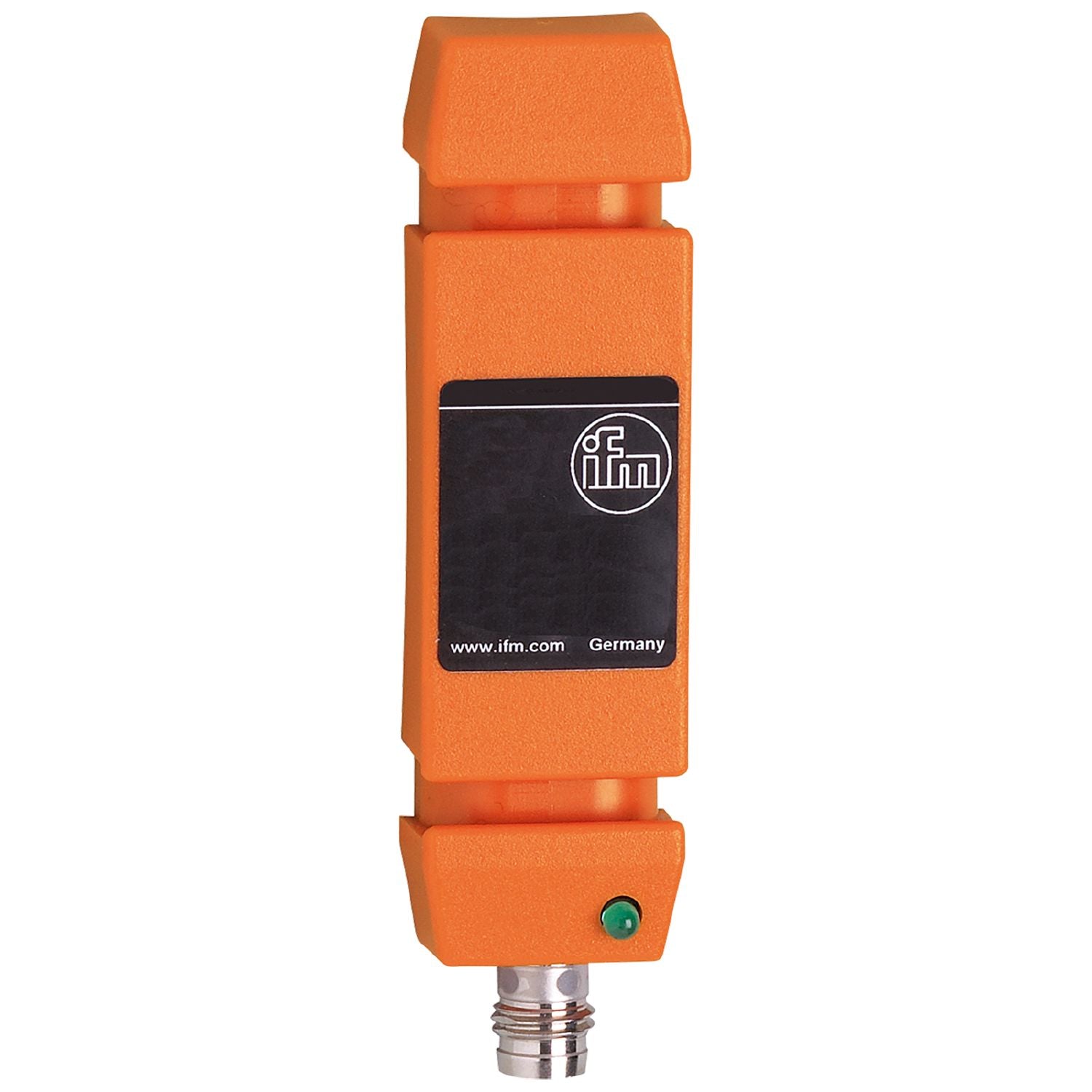

IFM I85008 - Inductive tube sensor I8-3020-BPKG/DY/AS-610-DPS

Dynamic principle of operation.
Reliable detection of objects with very small diameters.
Very short response time.
Output function normally open / normally closed programmable

Electrical design	PNP
Output function	normally open
Sensing range [mm]	< 14
Housing	rectangular
Dimensions [mm]	70 x 20 x 12

Operating principle	dynamic

Operating voltage [V]	10...35 DC
Current consumption [mA]	< 25
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	< 14
Resolution of steel ball (diameter) [mm]	3
Max. part speed [m/s]	25

Response times

Pulse stretching [ms]	100
Max. fall time [ms]	100
Response time [ms]	< 0.2

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

MTTF [years]	1188
UL approval	Ta -25...70 °C Enclosure type Type 4X (indoor use only) / 12 and 13 power supply Class 2 File number UL E174191

Weight [g]	51
Housing	rectangular
Dimensions [mm]	70 x 20 x 12
Materials	housing: PC

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	fixing straps: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — I85008-00 — 14.02.2014 —
