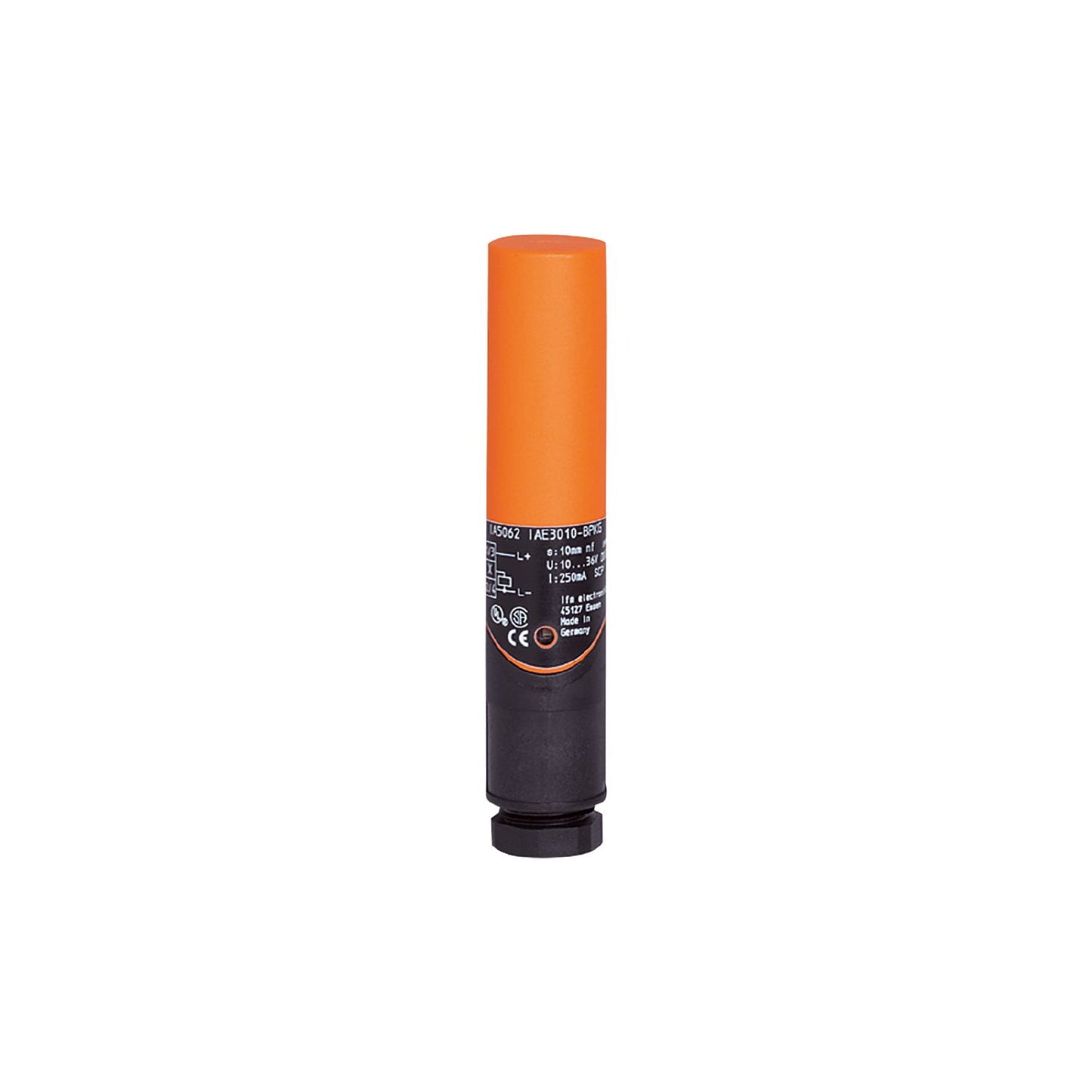

IFM IA5062 - Inductive sensor IAE3010-BPKG

For applications in pickling lines.
Smooth plastic housing to protect against deposits.
PBT housing resistant against pickling solutions.
With terminal chamber that can be rotated by 90°.
Clearly visible indication of the switching status

Electrical design	PNP
Output function	normally open
Sensing range [mm]	10
Housing	cylindrical
Dimensions [mm]	Ø 20 / L = 92

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	10
Real sensing range Sr [mm]	10 ± 10 %
Operating distance [mm]	0...8.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1147
UL approval	Ta 0...40 °C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191

Weight [g]	84.1
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 20 / L = 92
Materials	PBT; LED window: PC

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	Mounting clamps: 1

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IA5062-00 — 06.03.2003 —
