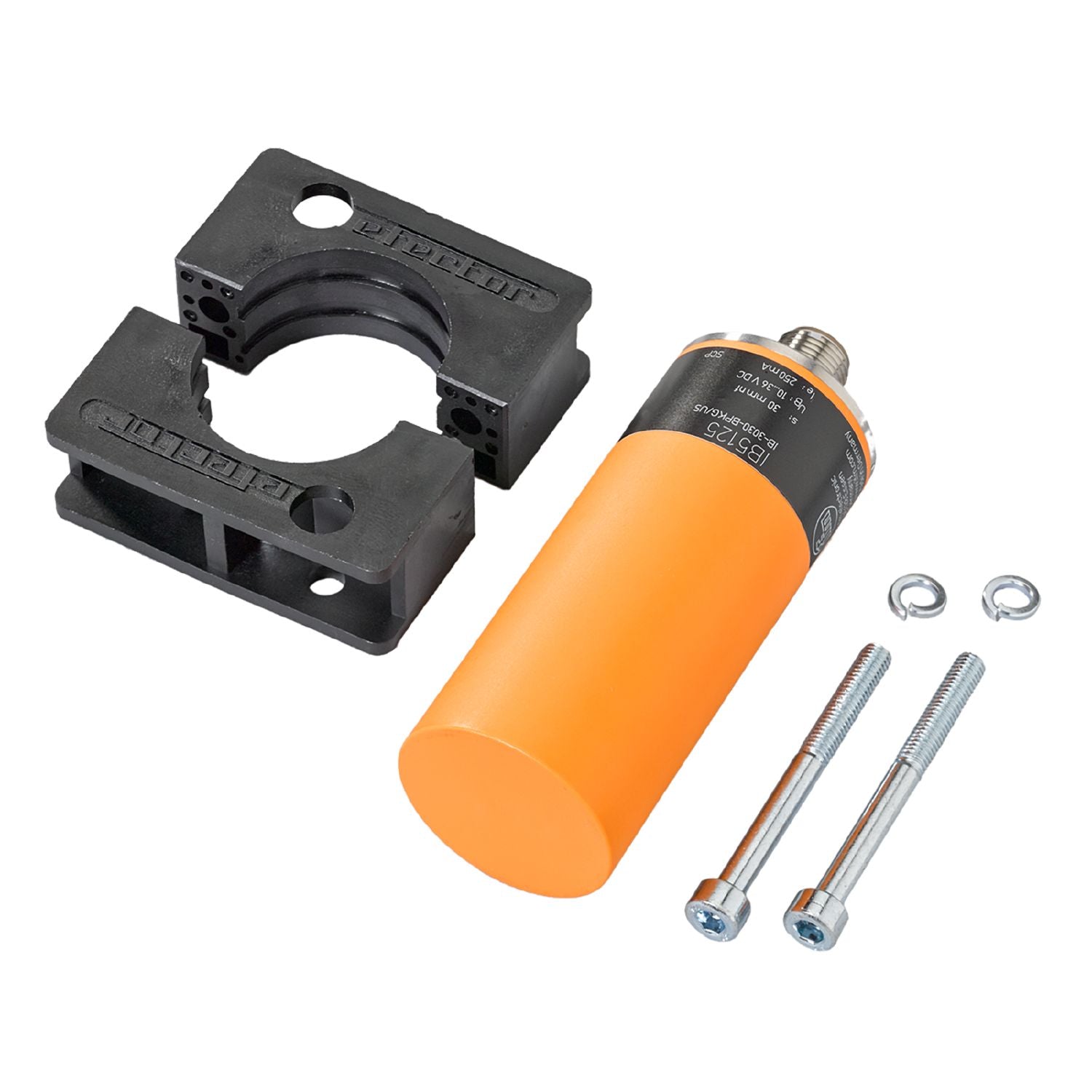

IFM IB5125 - Inductive sensor IB-3030-BPKG/US-104-DPS

Very long sensing range.
Smooth plastic housing to protect against deposits.
PBT housing resistant against pickling solutions.
For applications in pickling lines.
With robust M12 connector

Electrical design	PNP
Output function	normally open
Sensing range [mm]	30
Housing	cylindrical
Dimensions [mm]	Ø 34 / L = 95

Special feature	Gold-plated contacts

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 15
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	350
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	30
Real sensing range Sr [mm]	30 ± 10 %
Operating distance [mm]	0...24.3

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1789

Weight [g]	246.5
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 34 / L = 95
Materials	housing: PBT; sensing face: PBT orange; clamp: PBT black

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	Mounting clamps: 1

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated
