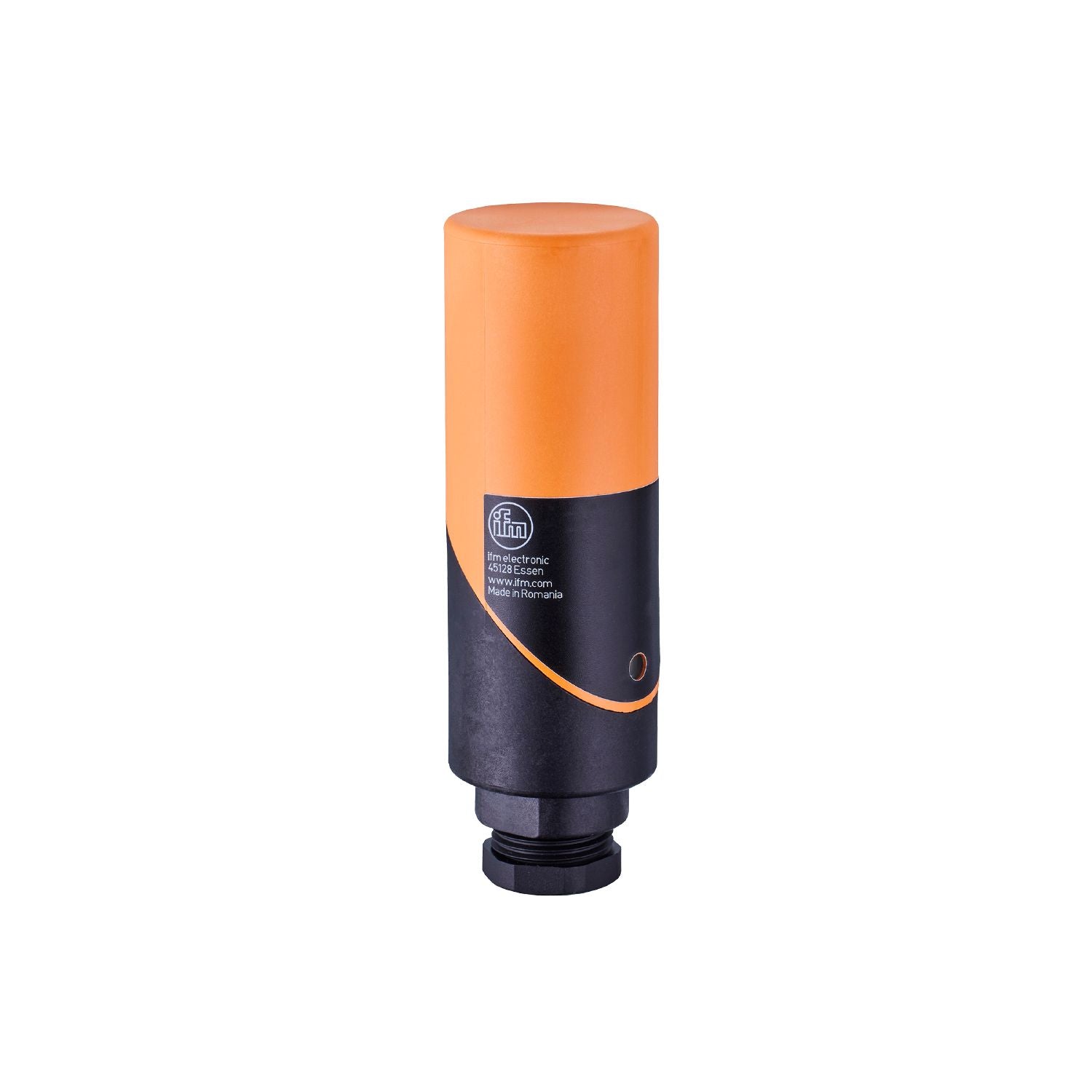

IFM IB5133 - Inductive sensor IBE3030-FPKG

Very long sensing range.
Output function normally open / normally closed programmable.
With terminal chamber that can be rotated by 90°.
Smooth plastic housing to protect against deposits.
PBT housing resistant against pickling solutions

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	30
Housing	cylindrical
Dimensions [mm]	Ø 34 / L = 98

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	350
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	30
Real sensing range Sr [mm]	30 ± 10 %
Operating distance [mm]	0...24.3

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1824

Weight [g]	187
Housing	cylindrical
Mounting	non-flush mountable
Dimensions [mm]	Ø 34 / L = 98
Materials	PBT; end cap: PC

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	Mounting clamps: 1

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5
